Page 339 - Williams RED Parts Catalog 16-9190-B

SEO Version

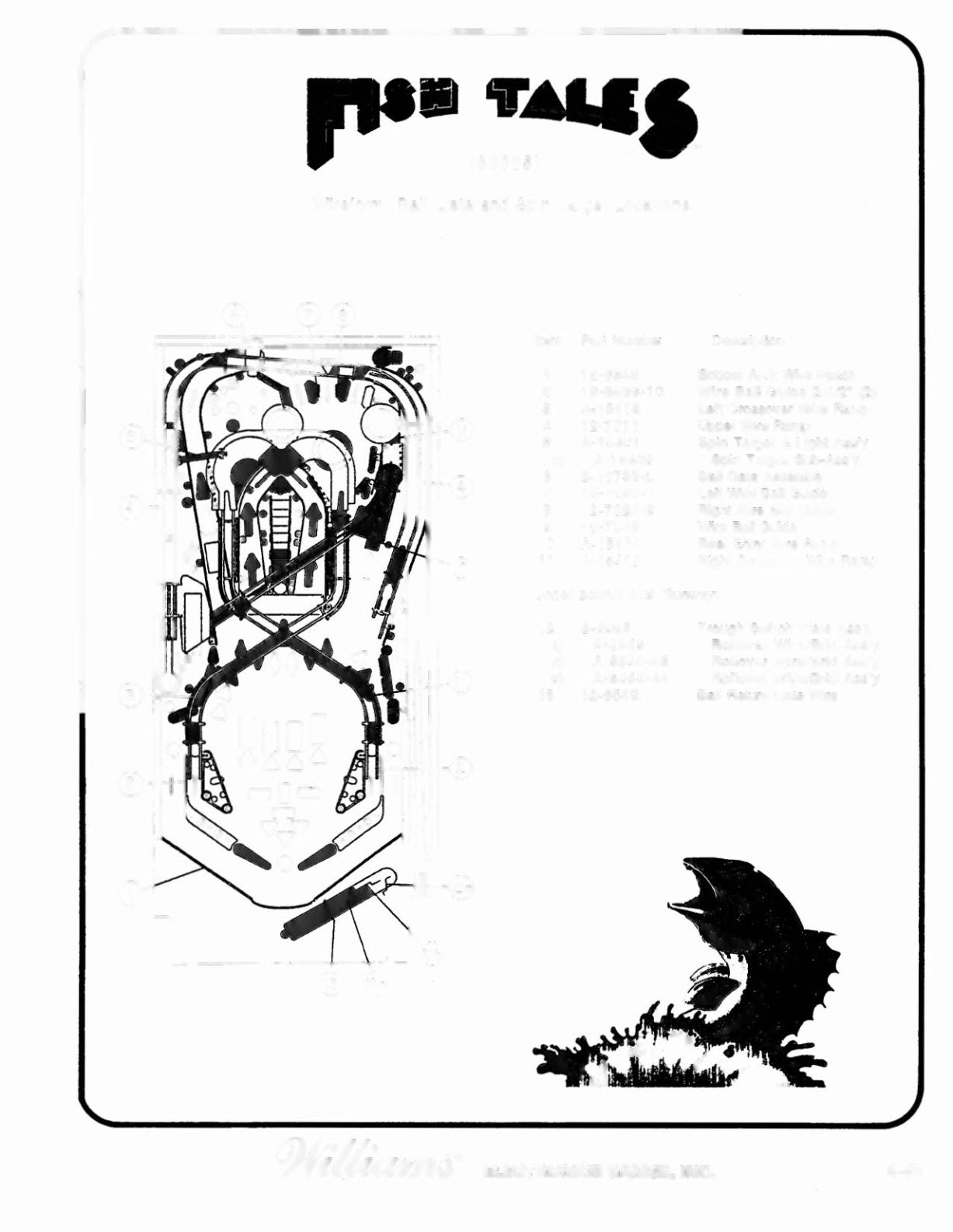

Wireform, Ball Gate and Spin Target Locations
(50005)
Item Part Number
Description
1 12-6842
Bottom Arch Wire Fench
2 12-6466-10
Wire Ball Guide
2-1/2-
(2)
3 A-15413
Left Crossover Wire Ramp
4
12-7011
Upper Wire Ramp
5 A-15401
Spin Target
&
Ught Ass'y
a)
A-15402
Spin Target SUb-Ass'y
6
B-10732-L
Ball Gate Assembly
7 12-7024-1
Lef1Wire Ball Guide
e
12-7024-2
Right Wir. Ball Guide
9 12-7033
Wire Ball Guide
10 A-15404
Reel Entry Wire Ramp
11 A-15412
Right Crossover Wire Ramp
Under 8OUomArch Runway:
12 8-8925
Trough Switch Plate Ass'y
a)
A-8645
Rollover Wlre/Brkt As.'y
b)
A-5844-45
Rollover Wlre/Brkt Ass'y
c)
A-5844-44
Rollover Wire/Brkt Ass'y
13 12-6542
Ball Return Gate Wire
