Page 210 - Williams RED Parts Catalog 16-9190-B

(576)

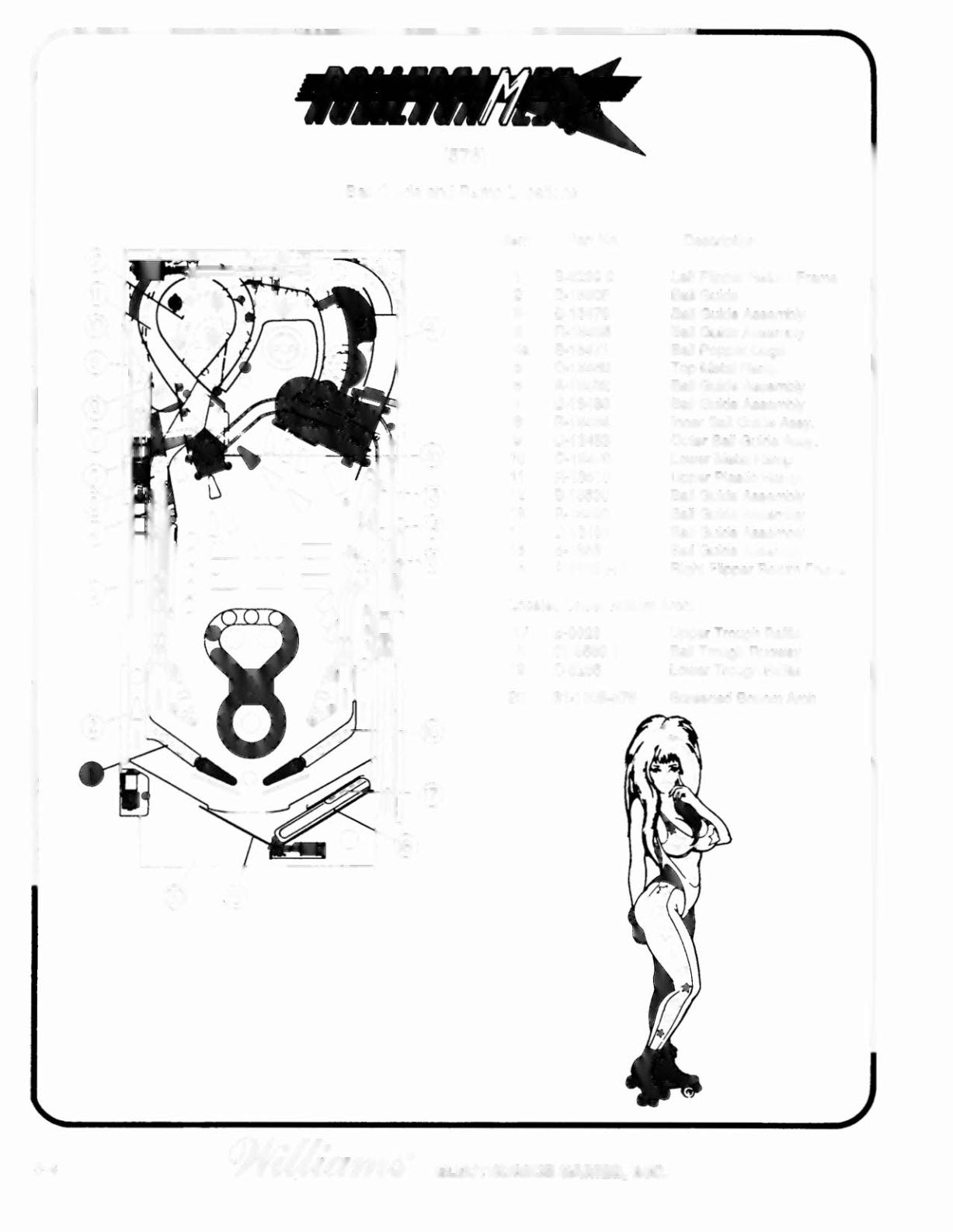

Ball Guide and Ramp Locations
Item Part No.
1 8-8239-2
2 8-13805
3 8-13478
4 R-13485
4a 8-13471
5 C-l3468
6 A-13482
7 8-13486
8 8-13484
9 0-13483
10 C-13470
11 R-13510
12 8-13530
13 8-13480
14 0-13481
15 8-13531
16 A-81OB-R-1
Description
left Flipper Return Frame
Ball Guide
Ball Guide Assembly
Ball Guide Assembly
Ball Popper Cage
Top Metal Ramp
Ball Guide Assembly
Ball Guide Assembly
Inner Ball Guide Assy.
Outer Ball Guide Assy.
Lower Metal Ramp
Upper Plastic Ramp
Ball Guide Assembly
Ball Guide Assembly
Ball Guide Assembly
Ball Guide Assembly
Right Flipper Return Frame
Located Uncler Bottom Arch:
17 8-8623
18 01-3569-1
19 C-8235
20 31-1008-576
Upper Trough Baffle
Ban Trough Runway
lower Trough Baffle
Screened Bottom Arch
3-4 ELECTRONICS GAMEB.INC.
