(575)

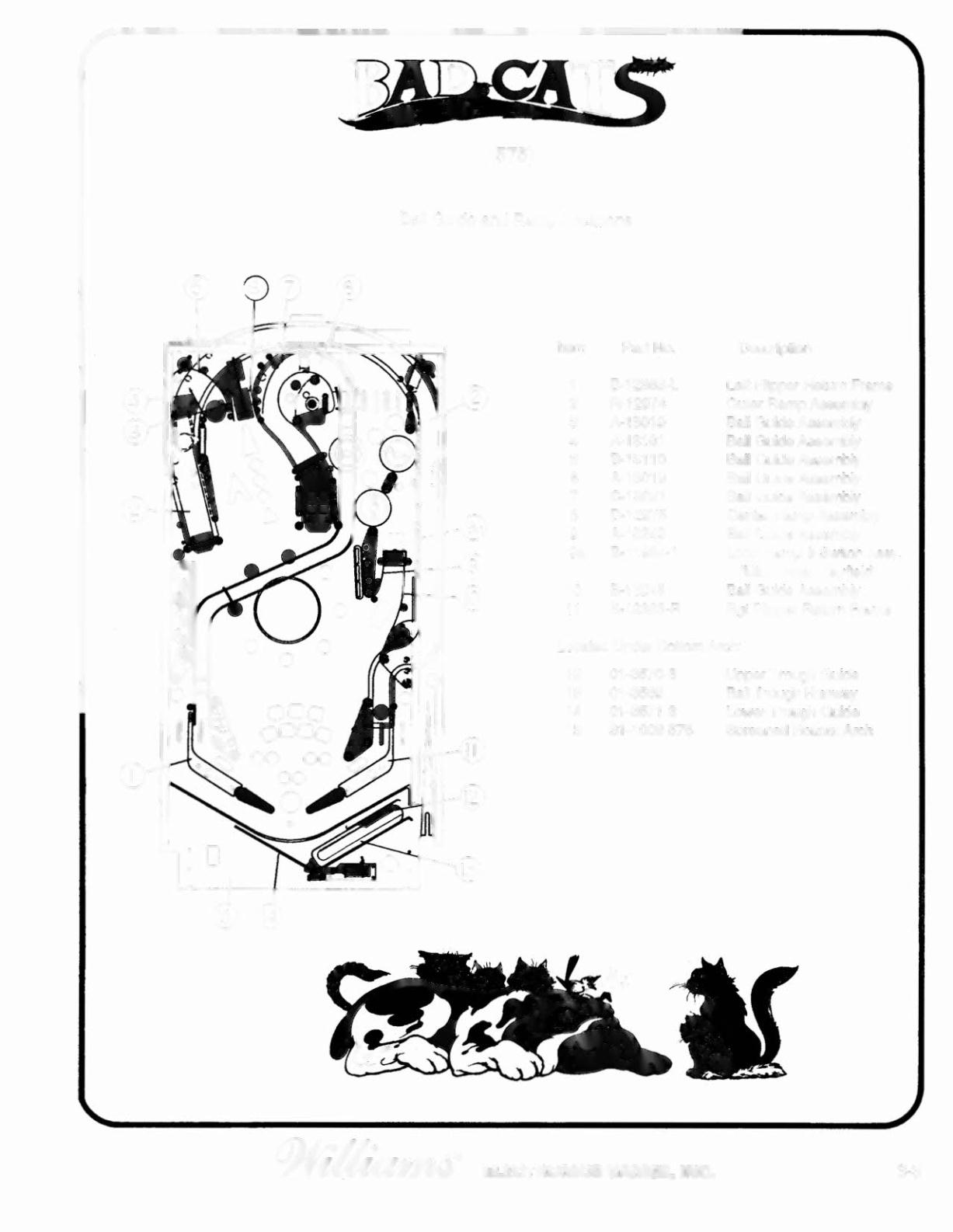

Ball Guide and Ramp Locations
Item Part No.
Description
1 B·123G3-L
Left Flipper Return Frame
2 R-12974
Outer Ramp Assembly
3 A-13019
!3all Guide Assembly
4 A-13l61
Ball Guide Assembly
5 8-13110
Ball Guide Assembly
6
A-13019
Ball Guide Assembly
7 C-13021
Ban Guide Assembly
8
0-12975
Center Ramp Assembly
9
A-13249
Ball Guide Assembly
9a 8-11984-1
Loop Ramp
&
SWitchAssy.
(Mtd. under Playfl8ld)
10 8-13248
Ball Guide Assembly
11
8-123G3-R Rgt Flipper Return Frame
located Under Bottom Arch:
12 01-3570-3
Upper Trough Guide
13 01-3569
Ball Trough Runway
14 01-3571-3
lower Trough Guide
15 31-1008-575 Screened Bottom Arch
(J)",/_.
I
I_· _____
Ie
7'~
ELECTRONICSGAMEB.INC.
3-3
