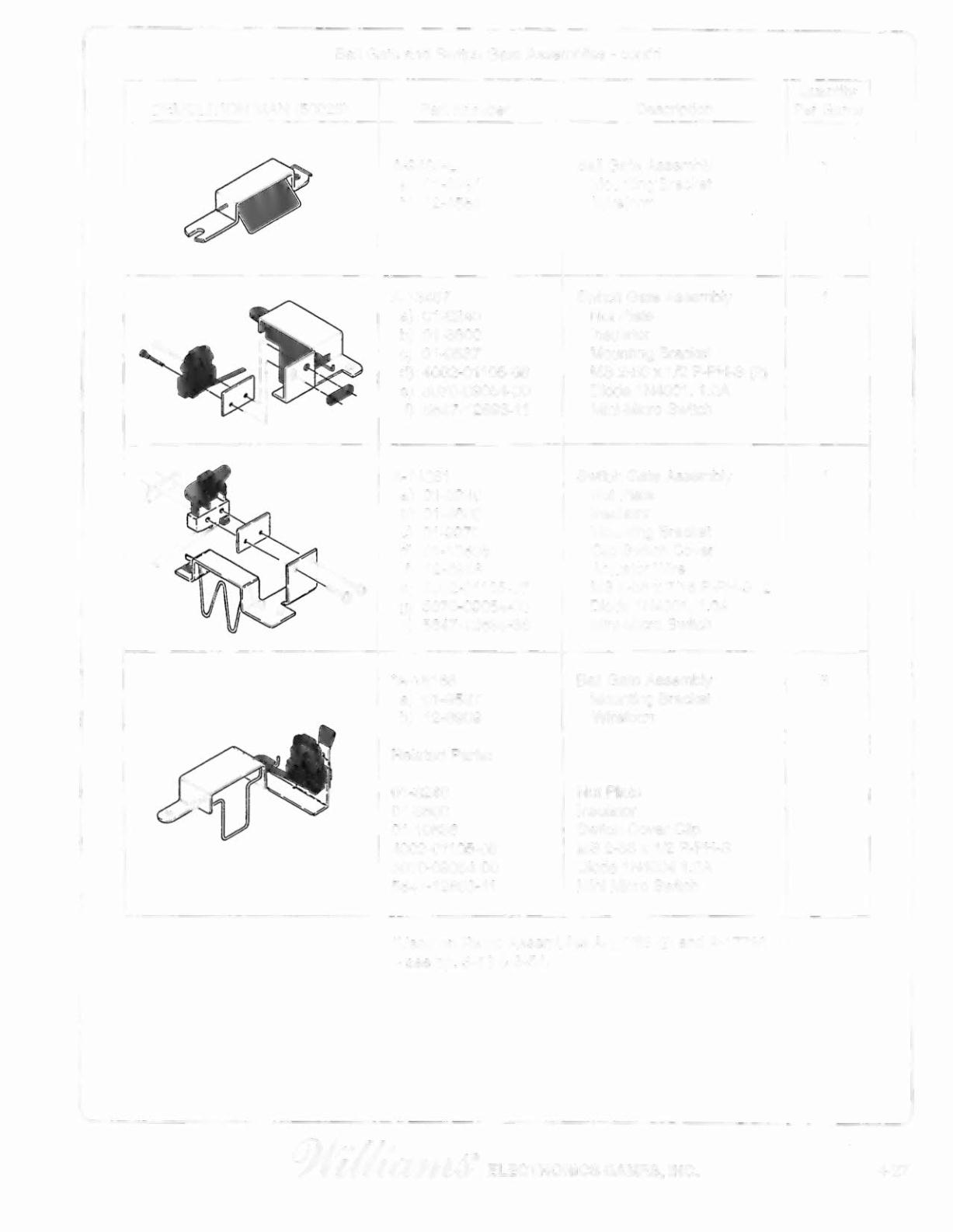

Ball Gate and Switch Gate Assemblies· cont'd
DEMOLITION MAN (50028)
Part Number
Description
Quantity
Per Game
A-9465-L
a) 01-6991
b) 12-6565
Ball Gate Assembly
Mounting Bracket
Wireform
A-13487
a) 01-8240
b) 01-8600
c) 01-9587
d) 4002-011 05-08
e) 5070-09054-00
f) 5647-12693-11
Switch Gate Assembly
Nut Plate
Insulator
Mounting Bracket
MS 2-56
x
1/2
P-PH-S (2)
Diode 1N4001, 1.0A
Mini-Micro Switch
1
A-14281
a} 01-8240
b) 01-8600
c) 01-9970
d) 01-10636
f) 12-6958
e) 4002-01105-07
g} 5070-09054-00
h) 5647-12693-36
Switch Gate Assembly
Nut Plate
Insulator
Mounting Bracket
Clip Switch Cover
Actuator Wire
MS 2-56 x
7/16
P-PH-S (2)
Diode 1N4001, 1.0A
Mini-Micro Switch
1
*A-18168
a) 01-9587
b) 12-6909
Related Parts:
01-8240
01-8600
01-10636
4002-01105-08
5070-09054-00
5647-12693-11
Ball Gate Assembly
Mounting Bracket
Wireform
Nut Plate
Insulator
Switch Cover Clip
MS 2-56
x
1/2
P-PH-S
Diode 1N4004 1.0A
Mini Micro Switch
3
"Used on Ramp Assemblies A-17785 (2) and A-17786 (1)
- see pp. 3-53 & 3-54.
O).f~®
ELECTRONICS GAMES, INC.
4-27
