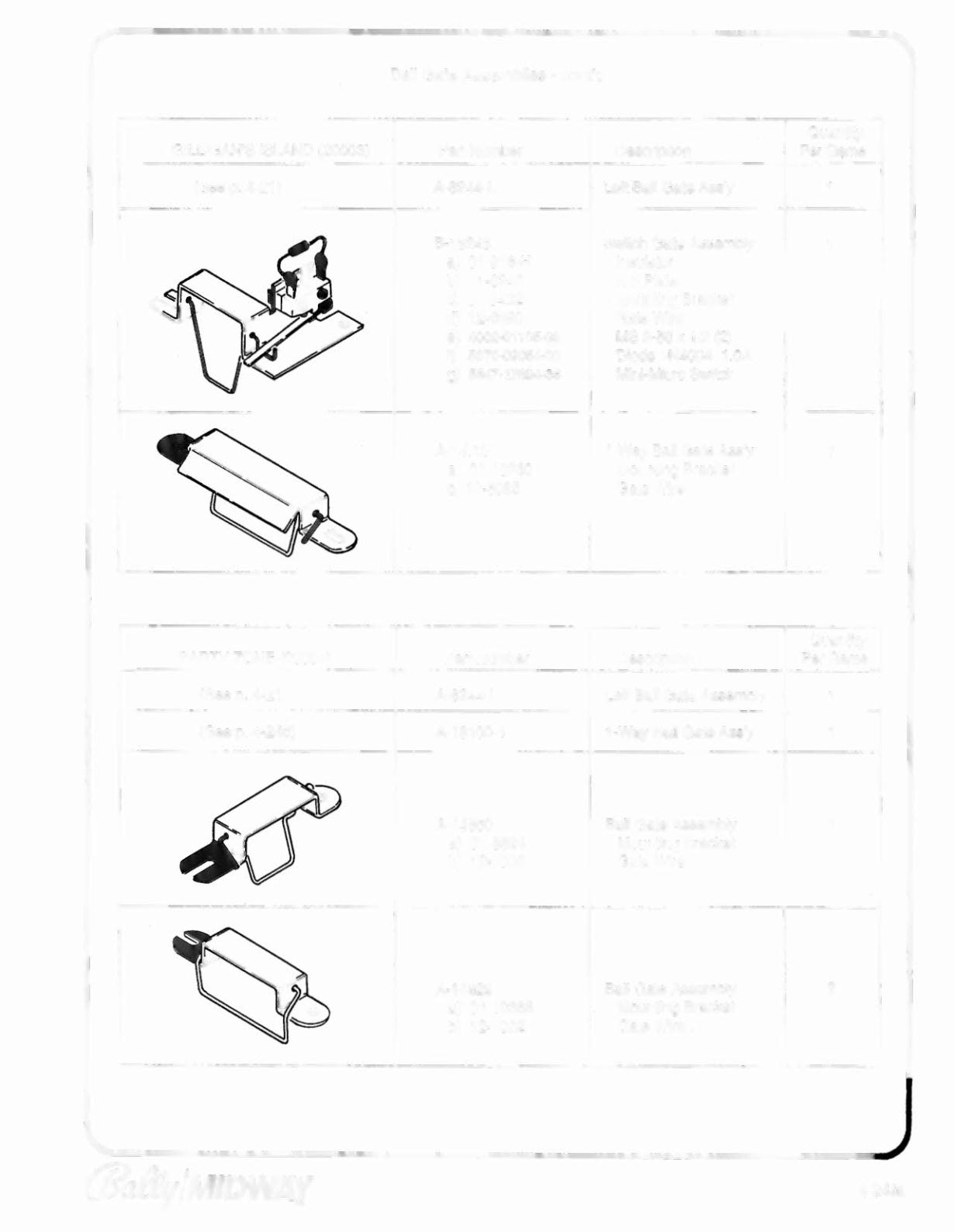

GILLIGAN'S ISLAND (20003)
Ball Gate Assemblies - cont'd
Part Number
A-8244-L
B-13243
a) 01-916-H
b) 01-8240
c) 01-9432
d) 12-6890
e)
4002-01105-08
f)
5070-09054-00
g)
5647-12694-36
A-14707
a) 01-10230
b) 12-6985
Description
Left Ball Gate Ass'y
Switch Gate Assembly
Insulator
Nut Plata
Mounting Bracket
Gate Wire
MS 2-56
x
112 (2)
Diode
1
N4004
1
.OA
Mini-Micro Switch
l-Way Ball Gate Ass'y
Mounting Bracket
Gate Wire
Quantity
Per Game
1
1
1
PARTY ZONE (20004)
(See
p.
4-21)
(See
p.
4-24d)
Part Number
A-8244-L
A-13100-1
A-14850
a) 01-8624
b) 12-7000
A-14929
a) 01-10368
b) 12-7002
Description
left Ball Gate Assembly
1-Way Ball Gate Ass'y
Ball Gate Assembly
Mounting Bracket
Gate Wire
Ball Gate Assembly
Mounting Bracket
Gate Wire
Quantity
Per Game
1
2
(J?af6t/
M1
DWAY
4-24fa
