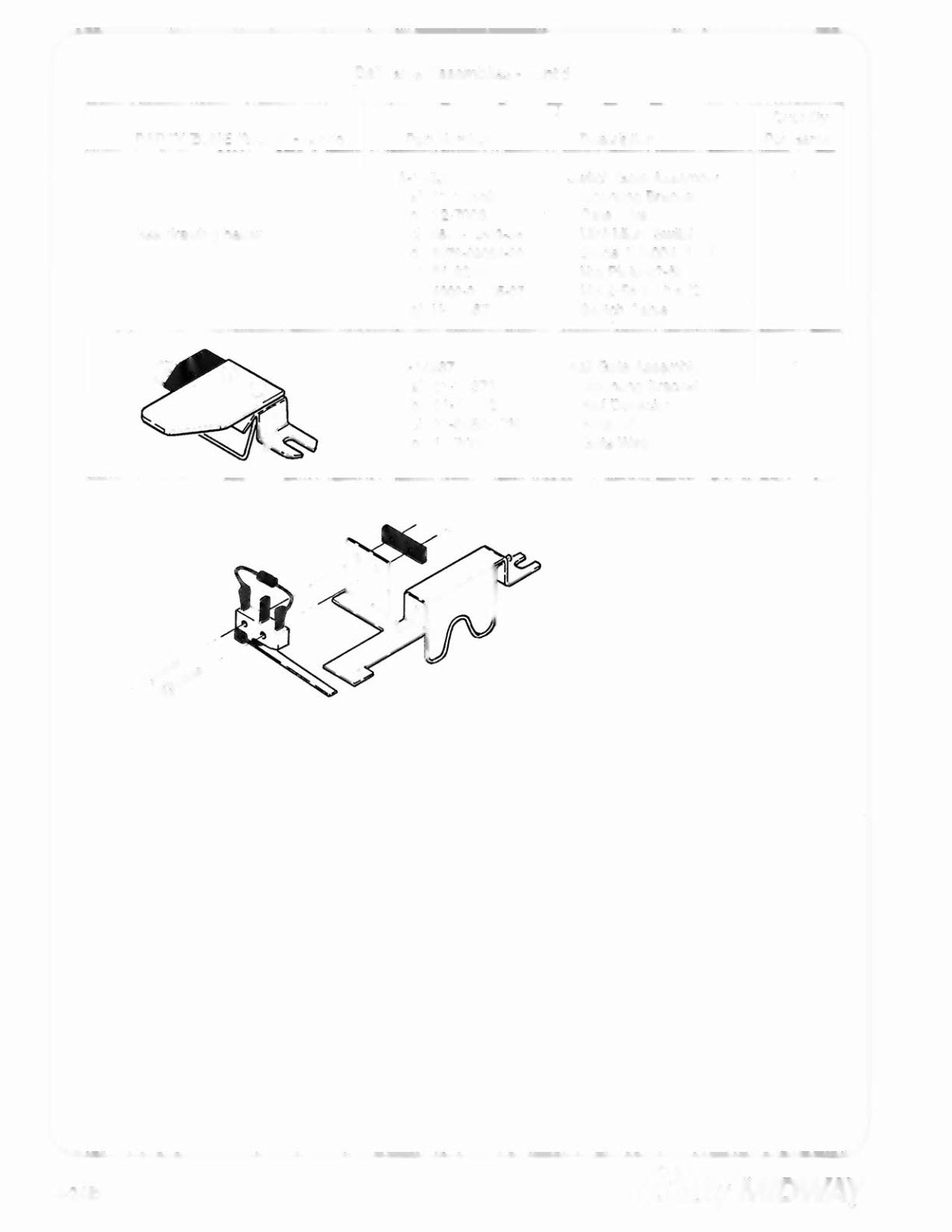

Page 380 - BallyMidway YELLOW Parts Catalog 16-9147-B

Ball Gate Assemblies - contd
PARTY ZONE (20004) - cont'd Part Number Description
Quantity
Per Game
See drawing below.
A·14930
a) 01·10369
b) 12·7003
c) 5647-12693-36
d) 5070-09054·00
e) 01-8240
1) 4002-01105-07
g) H-14957
Switch Gate Assembly
Mounting Bracket
Gate Wire
Mini-Micro Switch
Diode 1N4004 1.0A
Nut Plate #2-56
MS 2-56 x 7/16 (2)
Switch Cable
1
A·14937
a) 01-10373
b) 01-10412
c) 07 -6688-17N
d} 12-7004
Ball Gate Assembly
Mounting Bracket
Ball Deflector
Rivet (2)
Gate Wire
1
4-24fb @a!fy/MIDWAY
