Page 206 - BallyMidway YELLOW Parts Catalog 16-9147-B

(20013)

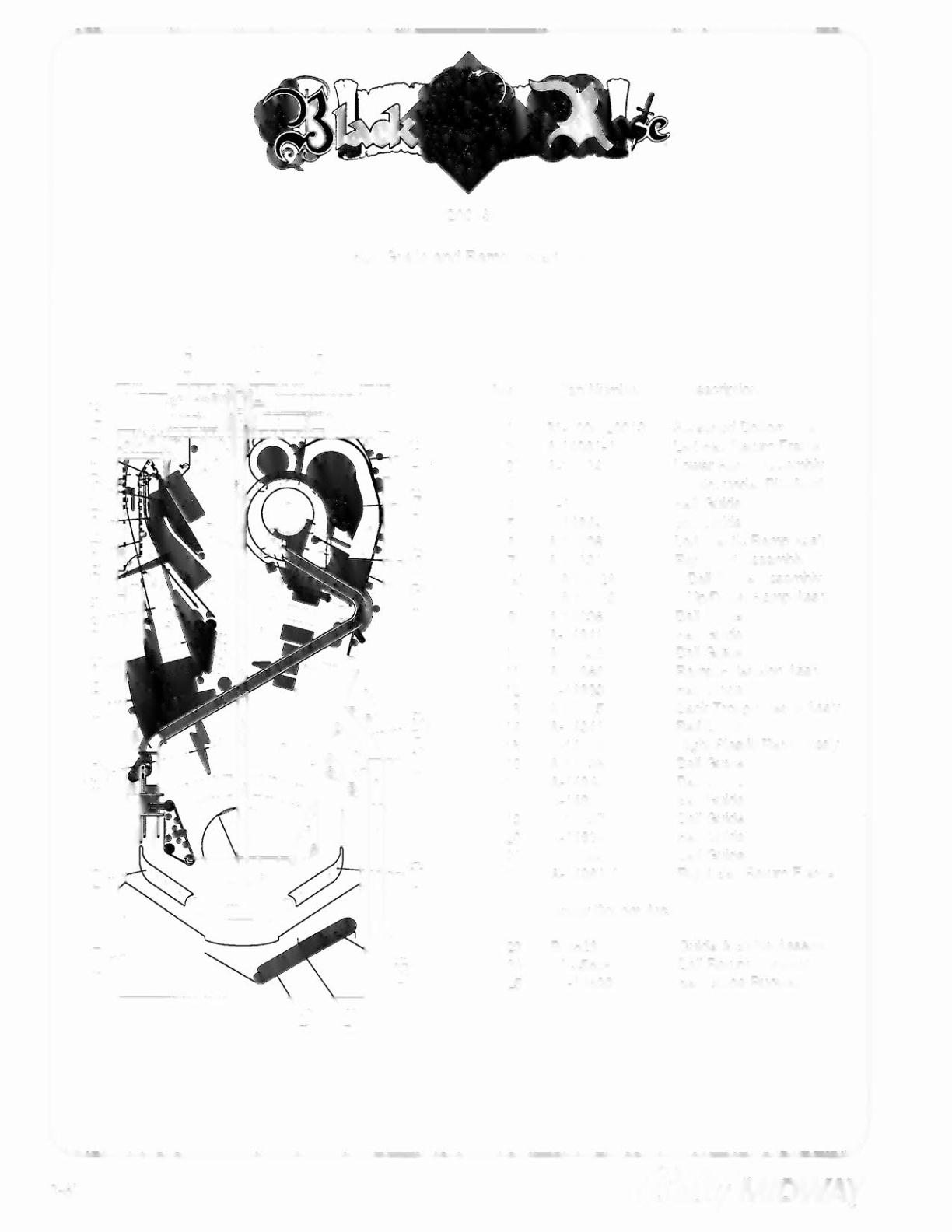

Ball Guide and Ramp Locations
Item Part Number Description
1 31-1008-.20013 Screened Bottom Arch
2 A-14981-2 Left Ball Return Frame
3 A-14824 Lower Ramp Assembly
(Mtd. under Playfield)
4 A-14843 Ball Guide
5 A-14844 Ball Guide
6 A-14826 Left Plastic Ramp Ass'y
7 A-14831 Ramp Lift Assembly
a) A-14828 Ball Guide Assembly
b) A-14829 UplDown Ramp Ass'y
8 A-14836 Ball Guide
9 A-14841 Ball Guide
10 A-14832 Ball Guide
11 A-14866 Ramp Extension Ass'y
12 A-14839 Ball Guide
13 A-14825 Back Trough Ramp Ass'y
14 A-14941 Ball Guide
15 A-14878 Right Plastic Ramp Ass'y
16 A-14835 Ball Guide
17 A-14840 Ball Guide
18 A-14838 Ball Guide
19 A-14837 Ball Guide
20 A-14834 Ball Guide
21 A-14833 Ball Guide
22 A-14981-' Right Ball Return Frame
Under Bottom Arch:
23 B-8623 Guide & Baffle Assembly
24 01-3569-1 Ball Return Runway
25 ·01-10599 Ball Guide Runway
3-6j @a!fy/MIDWAY
