Page 39 - 1980_1_PARTS_ASPIRE

A. R-521-3 2" Dia. (3)
B. R-521-2 1%" Dia. (4)
0 C. A·521·' 1" Dia. (4)
D. R-521-4 2%" Dia. (3)
E. R-521·5 3" Oia. (2)
F. R-521 %" Dia. (1)
G. R·406·3 Flipper (3)
H, R-243 5/16" Dia. (12)
J. R·20B-lt Minipost (2)
o
4
o
0 \) ~CS ~18 (0)18
0
0 ef)J:
o ;F~j2 c::I c:::=:l c=:l
4
0 000
0 ~O~
0
0 32
0 33
0000
0 0
4

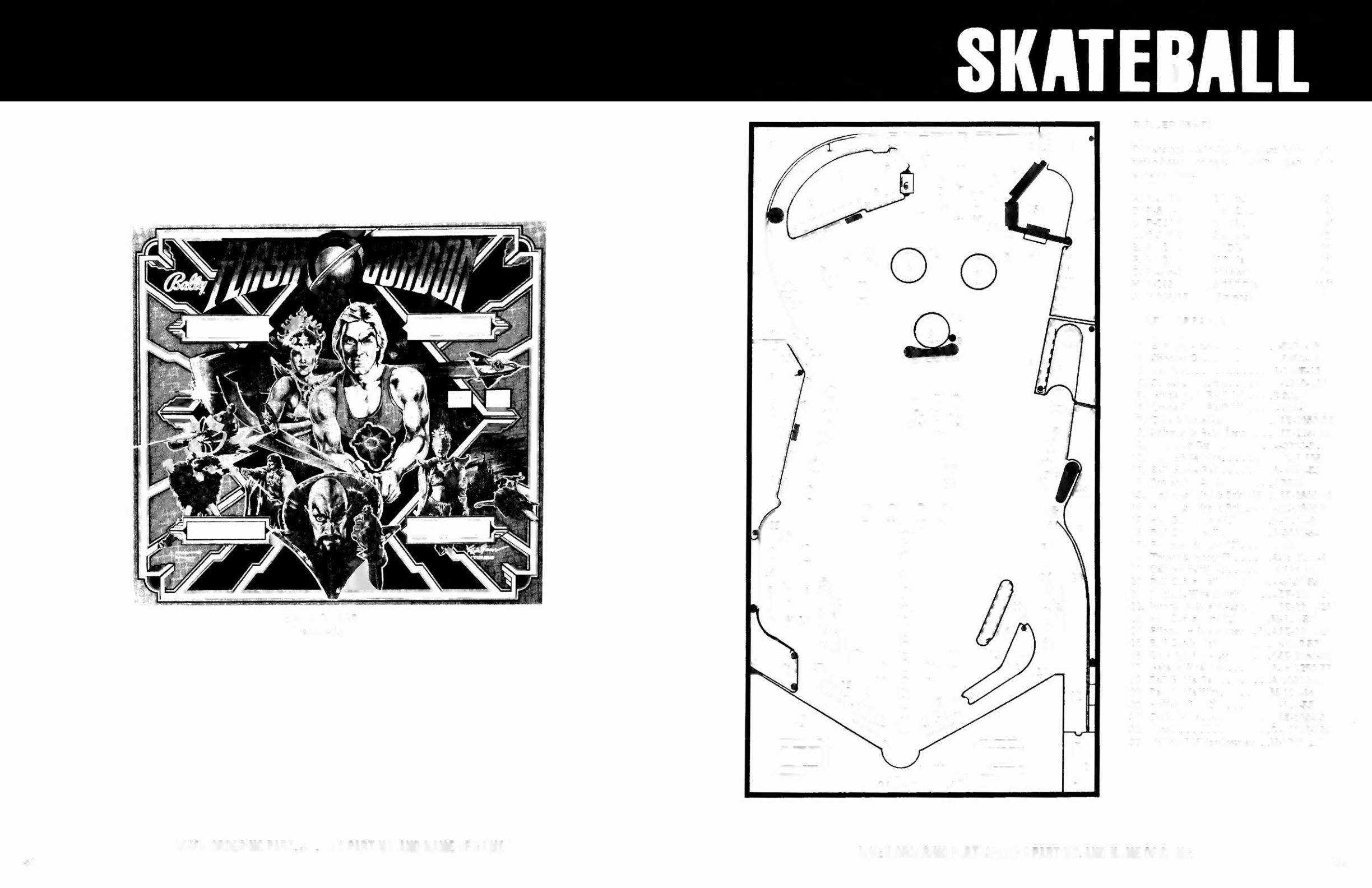

BACKGlASS
G440-13
~2
WHEN ORDERING PART, SPECIFY PART NO. AND NAME OF GAME
RUBBER PARTS
Dimensions are inside diameters. Numbers in
parentheses indicate quantitv used, if in
excess of one.
PANEL TOP PARTS
1. Bottom Arch P-6871-78
2. Shooter Gauge P-6359-44
3. BaH Gate A-1475-1.3
4. Screened Plastics A-2890-147
5. Guide Rail (Red) (3) C-935-1
6. Guide Rail (Red) (2 ) C-936-1
7. Gate & Wire Assy ASE-2250-24
8. Spinner & Gate Assy ASE-2250-80
9. Thumper Cap A-3713-52
10. Ball Guide Wire M·121·106
11. Ball Guide Rail A-3032-53
12. Protective Angle P-7639
13. Rallover Wi re & Brkt, (5) .ASE -2806-10
14. Rollover Wire & Brkt.. ASE-2806-9
15. Ball Guide Wire (2) M-121-46
16. Ball Guide Rail ,A-3032-54
17. Rollover Button (2) C-900
18. Thumper Body (3). ASE·2222-4
19. Ball Guide Wire M·121-18
20 .. Ball Guide Rail A-3032-55
21. Outnole Wire & Brkt ASE-2806-21
22. Flipper & Shaft Assy ,ASE·2214-28
23. Ball Guide Wire (2) M-121-56
24. Flipper & Shaft Assy. (3) .ASE·2214-21
25. Ball Guide Rail A-3032·52
26. Gate & Wire Assy ASE·2250·60
27. Gate & Wire Assy ASE·2250·77
28. Ball Guide Rail A·3032-56
29. Ball Guide Wire M-121·45
30. Buffer Wire (2) M-121-53
31. Outhole Kicker ASE-2694-3
32. Panet, . . . . . . . . . . . CA·1128-183
33. PJayfield My Iar ave rlay .. M·1787 -26
WHEN ORDERING PART. SPECIFY PART NO. AND NAME OF GAME
