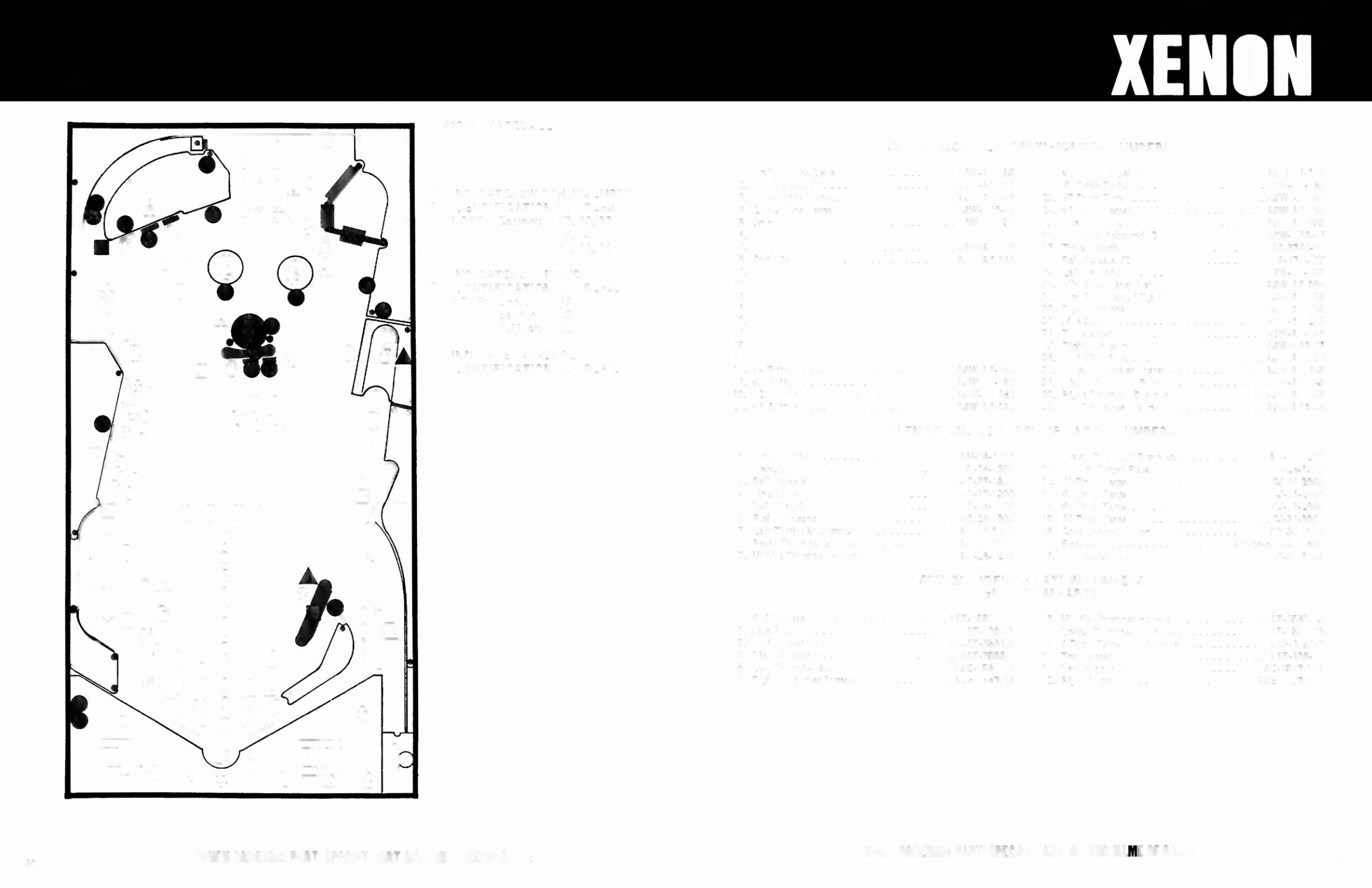

#1210 SKATEBALL
SWITCH ASSEMBLY IDENTIFICATION NUMBERS
o
1. End of Tube Lane
ASW-A '-155
2.
Ball Release
#1
ASW-A 1-211
3. Upper Side Target
ASW-A 10-48
4.
Lower Side Target
ASW-A 10-48
5.
Spinner
ASW-A 1-151
6.
7. Tilt
ASW-A1-145
8. Outhole
ASW-A1-143
9.
10.
ll.
12.
13.
14.
15.
16.
17. #4 Button
_ ASW-A1-162
lB. #3 Button
,
ASW-A 1-162
19. #2 Button
ASW-A1-162
20. #1 Button
ASW·A '·162
o
INDICATES SWITCH ASSEMBLY
IDENTIFICATION NUMBERS.
NOTE: Cabinet:
07,16,32
06,09
10,11,16
INDICATES SOLENOID
IDENTIFICATION NUMBERS.
NOTE: Door:
12
Backbox: 13
Cabinet:
02
6
INDICATES ASSEMBLY
IDENTIFICATION NUMBERS.
21. #4 Drop Target
ASW·A 1-168
22.
#3 Drop Target.
ASW-A 1-168
23. #2 Drop Target
ASW-A 1-168
24. #1 Drop Target.
ASW·A 1·168
25.
Shooter Lane
ASW·A 1-155
26. 30 Point Rebound (2)
ASW-A 10-47
27. Tube Switch
AS·2744-14
28. Ball Release #2
AS-2744-15
29. Left Outlane
ASW-A 1·155
30. Flip Feed Lane (Left) ...............•
ASW·A1-155
31. Flip Feed Lane (R ight). . . • . . . . . .....•
ASW-A 1-155
32. Right Outlane
ASW·A1-155
33.
Side Saucer . . . . . . . . . . . . . . . . . . . . . . ASW-A 1-209
34. Top Saucer
ASW-A1-186
35. Right Slingshot
ASW·A 10-47
36. Left
81
i
nqshot , __ .. _
ASW·A 10-47
37. Lower Thumper Bumper ...•..•.....•.
ASW-A 110·5
38.
Middle Thumper Bumper
ASW-A 110·5
39. Right Thumper Bumper
ASW-A 110-5
40. Left Thumper Bumper .....•.........
ASW-A110·5
SOLENOID AND COIL IDENTIFICATION NUMBERS
1.
Outhole Kicker
_
AN-26-1200
2. Knocker
AR-26-1200
3. Ball Release
AO-27-1300
4. Side Saucer
AO-27-1300
5. left Slingshot
AO-26-1200
6. Right Slingshot.
AO-26-1200
7.
Left Thumper Bumper
AN-26-1200
8.
Right Thumper Bumper. ,
AN·26·1200
9.
Middle Thumper Bumper
AN-26-1200
10. Lower Thumper Bumper
AN-26-1200
11. 4 Drop Target Reset
NO-26-1900
12. #1 Drop Target
CJ·31·2000
13. #2 Drop Target ...•.................
CJ-31-2000
14. #3
Drop Target. ..............•.....
CJ-31-2000
15. #4 Drop Target. • , . . .. . . . . . . . . . . . . . . . CJ-31-2000
16. Coin Lockout Door
FO-36-7000
17. Flippers. . . . . . . . .
AQ-2S·500/34-4S00
18.. Top Saucer
AO-27·1300
ASSEMBLY IDENTIFICATION NUMBERS
PANEL BOTTOM PARTS
1. Ball Release .....•...•.•...•.
_ ASE-1587-119
2. Side Saucer
ASE-428-41
3. Left Slingshot
ASE-2593·6
4. Right Slingshot
ASE-2593-S
5.
Left Thumper Bumper. , , .........•..
ASE-1567-13
6.
Right Thumper Bumper
ASE-1567-13
7. Middle Thumper Bumper
ASE-1667-13
8.
Lower Thumper Bumper ............•.
ASE-1567-13
9.
4 Drop Target and Memory
ASE-3038-2
10.
Top Saucer
ASE-428-44
11. Left Flipper
ASE-1587-112
12. Right Flipper
ASE-1587-111
40
WHEN ORDERING PART.
SPECIFY PART NO. AND NAME OF GAME
WHEN ORDERING PART.
SPECIFY PART NO. AND NAME OF GAME
