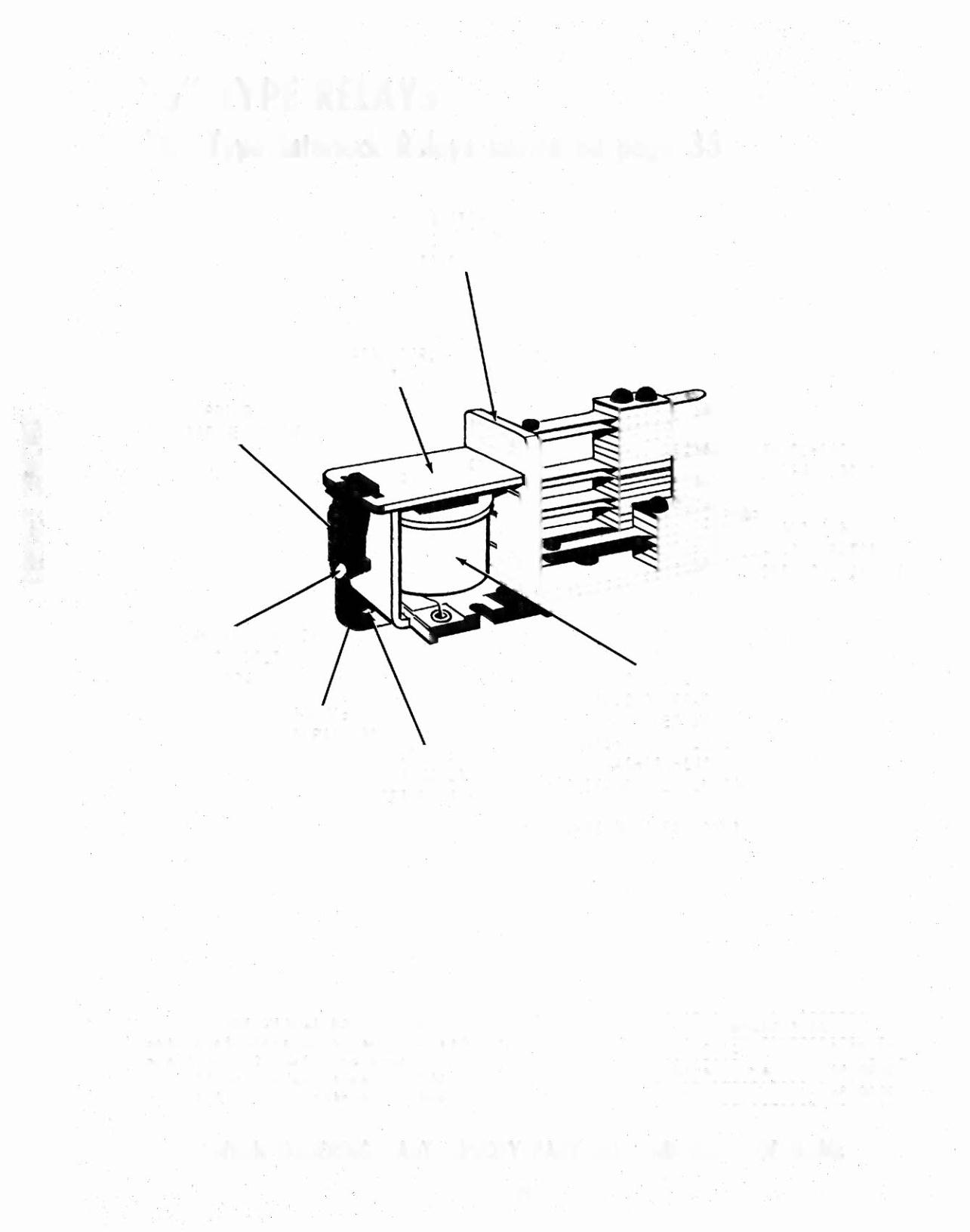

"G" TYPE- RELAYS-
"G"· Type Interl~k Relays shown on page 35
SWITCH
ACTUATOR
SEE PAGE 99
SPRING RETAINER
BRACKET
P-7491
~I:::::~~~-SWITCHING
- SEE PAGE 30
,
:~-.- Q:- e••••
I
••••
Icr
SPRING
SEE TABLE BELOW
SWITCH BASE
SEPARATOR
SEE NOTE BELOW
EYELET
GROMMET
SEE PAGE 30
COIL
PART NUM.BER
MARKED ON WRAPPER
SECURED BY
8·32 x 3/8 IN. LONG
WASHER HEAD
HEXAGON SEM-SCREW
AND
BRASS WASHER P·801·149
SWITCH BASE SEPARATORS
Swltch BaseSeparators, used only as required, are 9/16 in.
_by 5/16 in. with 2 holes for switch screw.
. 1/32 in..thick (approximately) 5MB-l
1/16 in. thick (approximately) 5MB-2
SPRING TABLE
COLOR PART NO.
Natural (not dyed) SP-199-28
Red SP-199-29
WHEN ORDERING PART, SPECIFY PART NO .. AND NAME OF GAM.E
