Page 19 - Bally 1971 Parts Catalog

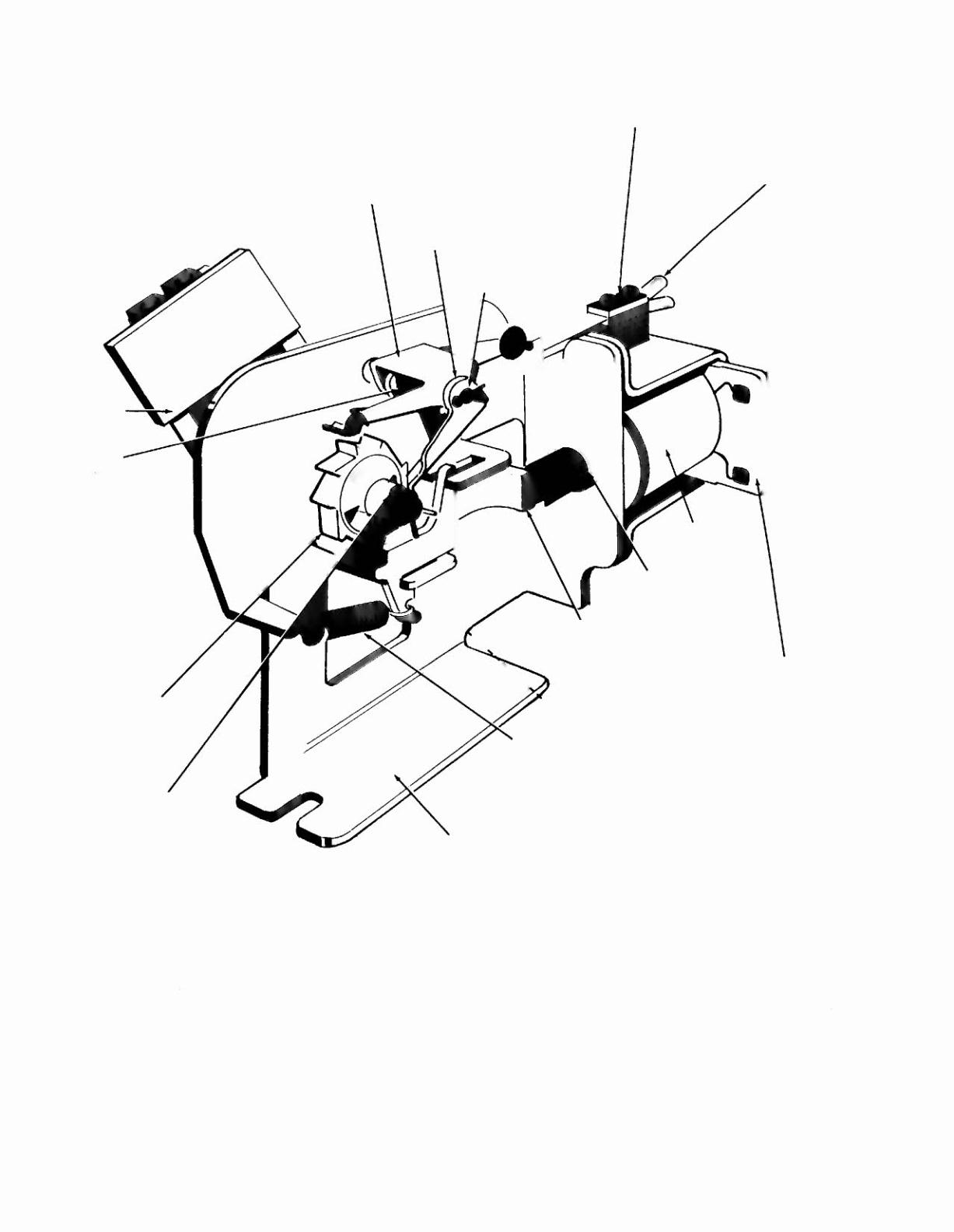

ALTERNATOR UNITSlsEENOTE AI
2 (DINS PER PLA Y
MALE CONNECTOR
E-140-1
PLUNGER*
S496-160*
SWITCH
SW-100-444
IN AS-1900-1 01
ASW-M-l00-l
IN AS-1900-123
SPRING PLATE
P-137-12
SPRING
SP-385
,,,,
,,,,,,,,,,,
CORE PLUG ASSY.
A-613-68
IN AS-1900-101
-
A-613-92
IN AS-1900-123
I () o D
NOTE A
BASE PLATE ASSY. STOP PLATE
A-2214-16 ON OPPOSITE SIDE OF ASSY.
P-5222-1
Alternator parts for LOOP THE LOOP and earlier
games** should be ordered by name or description
with reference to (a) Alternator, (b) name of game.
Effective with BAZAAR and later games** through
BIG VALLEY, Alternator AS-1900-101 was used.
Effective with ZIP-A-DOO and later games**,
Alternator AS-1900-123 is used.
Both AS-1900-101 and AS-1900-123 are illustrated
above, the sole difference being in Core Plug Assy.
and Switch.
SCREWS
Order screws by name or description with reference
to (a) AS-1900-101, (b) part screw secures.
*Starred components--C-43S-1, P-1637-43 and S-496-
160--constitute Drive Pawl Assy. AS-2292-2. Com-
ponents may be purchased separately or as an
assembly"
* See chronological list of games, page 6.
WHEN ORDERING PART, SPECIFY PART NO. AND NAME OF GAME
15
