A-15849-L-2

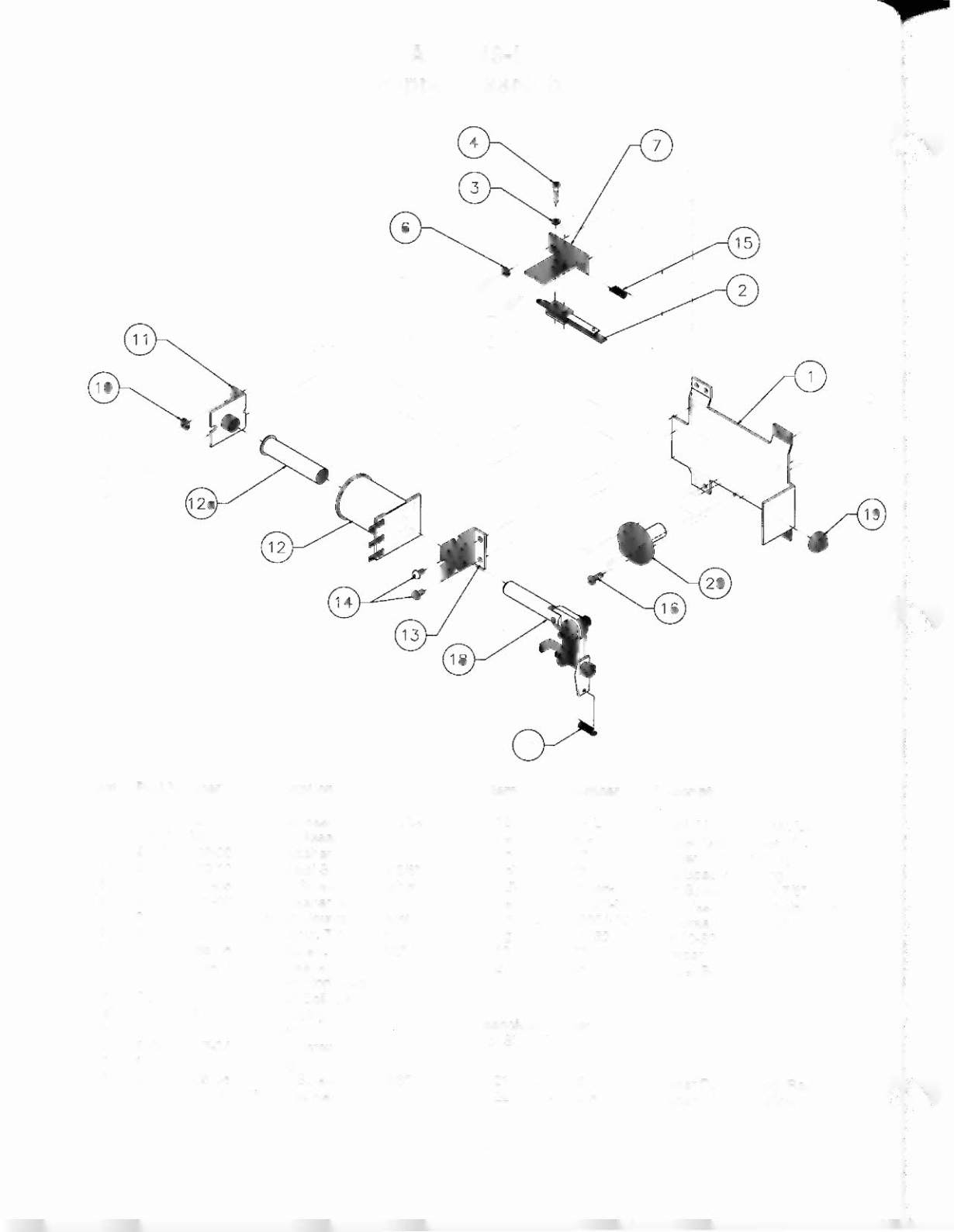

Flipper Assembly
Item Part Number
1 B-13104-L
2 SW-1A-194
3 4701-00002-00
4 4105-01019-10
5 4008-01079-05
6 4701-00003-00
7 01-9375
8 20-6516
9 4010-01066-06
10 4701-00004-00
11 A-12360
12 FL-11629
a} 03-7066-5
13 01-7695
14 4006-01017-04
15 10-364
16 4006-01005-06
17 4406-01117-00
Description
Flipper Base Assembly, Left
Switch Assembly
Lockwasher #6 Split
Sh. Metal Screw, #5 x 5/8"
Mach. Screw, 8-32 x 5/16"
Lockwasher #8 Split
Switch Mounting Bracket
Speednut, Tinnerman
Cap Screw, 10-32 x 3/8"
Lockwasher #10 Split
Flipper Stop Assembly
Flipper Coil, Blue
Coil Tubing
Solenoid Bracket
Mach. Screw, 6-32 x 1/4"
Spring
Mach. Screw, 6-32 x 3/8"
Nut 6-32 Hex.
Item Part Number
18 A-15848-L
a) A-17050-L
b) A-15847
c) 02-4676
d) 4010-01086-14
e) 4700-00023-00
f) 4701-00004-00
g) 4410-01132-00
19 23-6577
20 03-7568
Associated Parts:
(Not Shown)
21 23-6695
22 20-9250
7
6
2-14
Description
Crank Link Assembly, Left
Flipper Crank Assembly, Left
Flipper Link Assembly
Link Spacer Bushing
Cap Screw, 10-32 x 7/8"
Flat Washer, 5/8 x
13/64
x 16ga.
Lockwasher #10 Split
Nut 10-32 ESN
Bumper Plug, 5/8"
Flipper Bushing
Flipper Rubber Ring, Red
Flipper
wISh
aft, Yellow
