Catcher Ramp

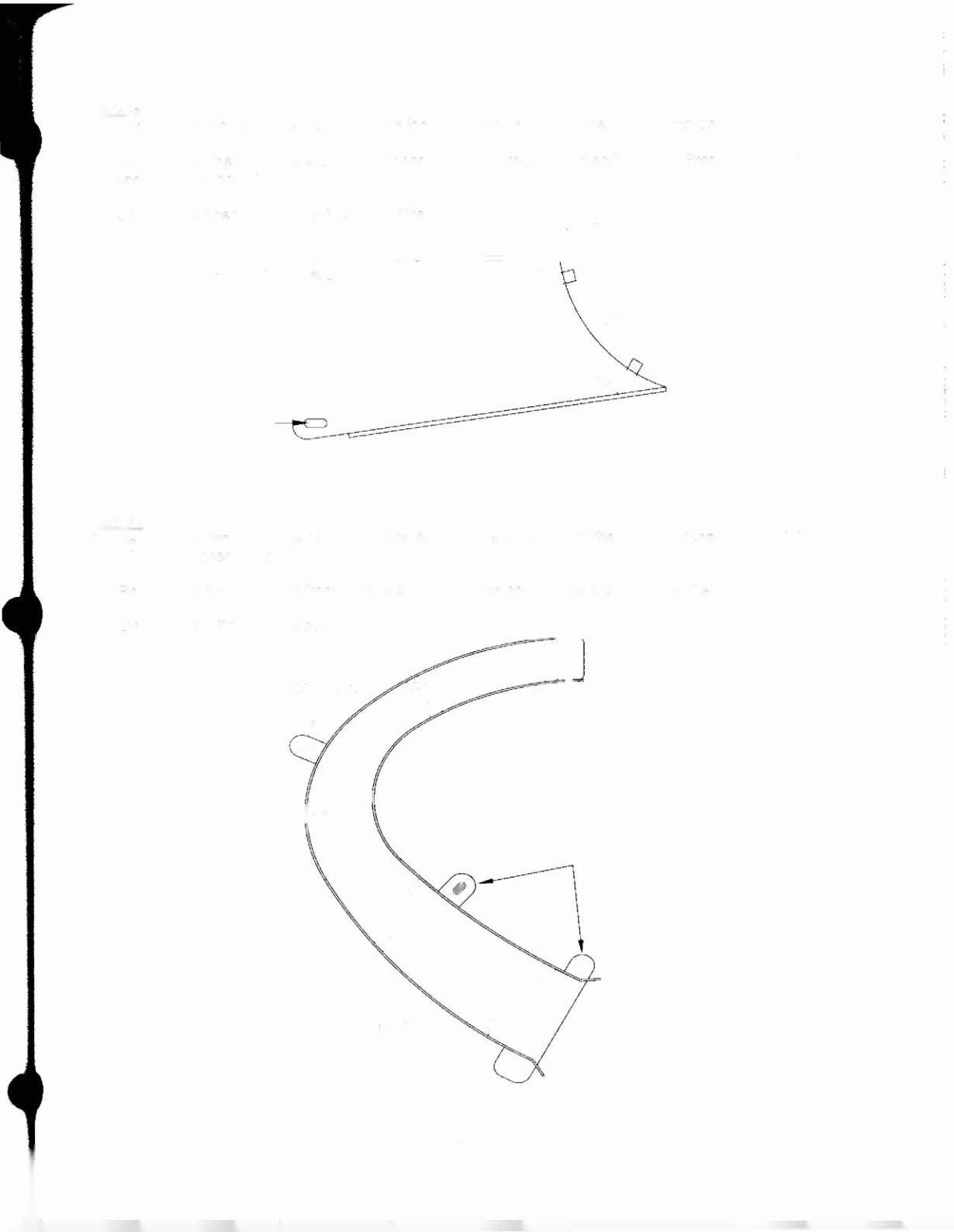

1) Remove the two ESN nuts from the posts located on either sides of the metal Ramp Catcher.
2) Reach under the metal plate on the Catcher Ramp and find the two spring clips. Press down on the
spring clips to open them.
3) Slide the Catcher Ramp off of the Right Wire Ramp.
SPRING CLIP
I
ES~ NUT
r
I
I
I
I
I
i
I
ESN NUT
I
,
\©.~
, ,
,
"~
\,
,,
,
.
,,
"
,
\,,-~~@-, }
"
SPRING CUP
I
Ramp Catcher
1) Remove the two ESN nuts from the posts located on either sides of the Ramp Catcher where it joins
with the Catcher Ramp.
2) Remove the two ESN nuts from the posts located at the point where the Ramp Catcher curves.
3) Lift the ramp off the playfield.
1-51
