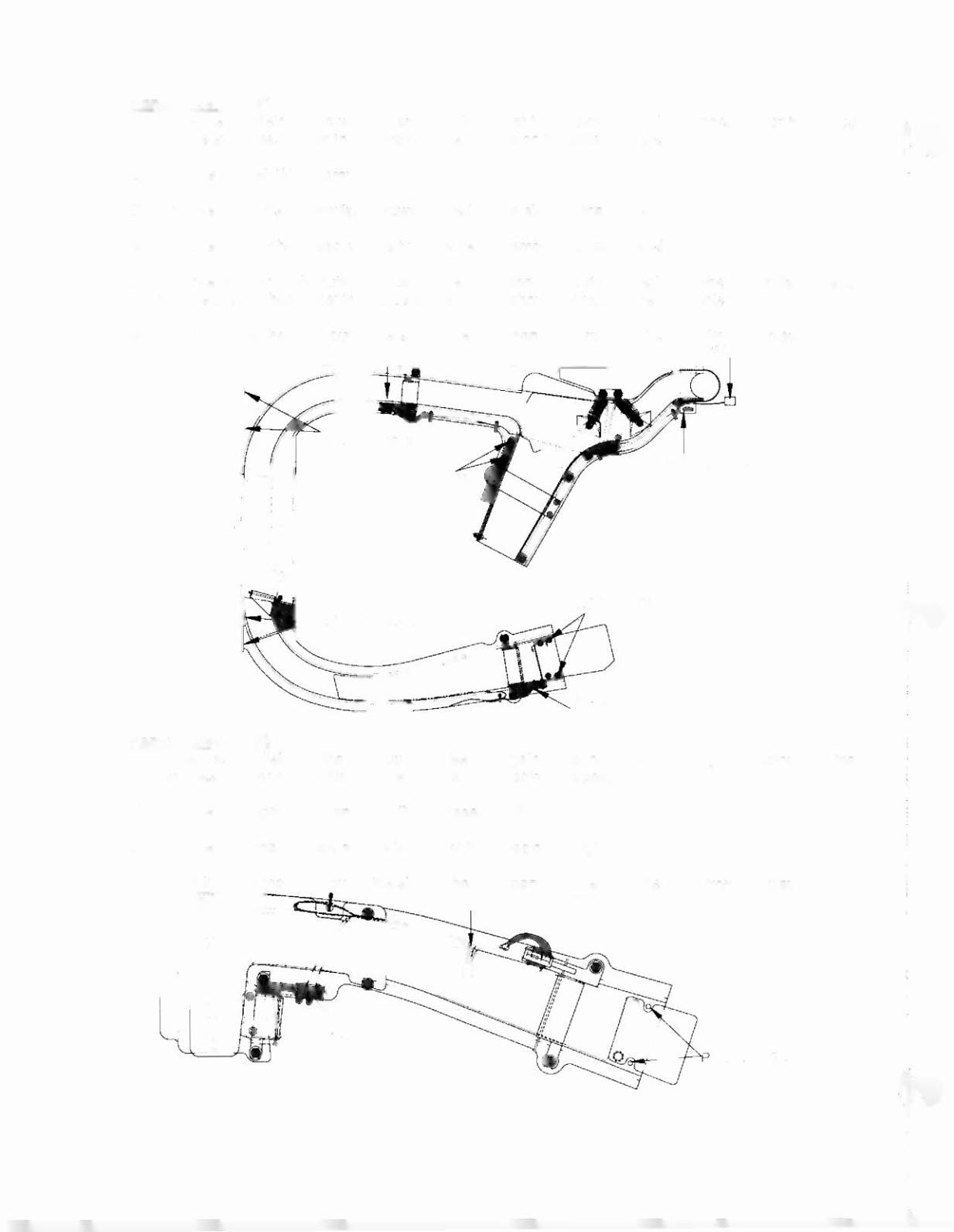

Ramp Assembly #1
1) Raise the playfield all the way up, and lean it against the backbox. Unplug connectors for the lamps
and the switches. Lower the playfield so that it rests on the safety brackets.
2) Remove the Left Wire Ramp
3) Remove the two small Phillips screws located on the sides of the left flap.
4) Remove the four hex head screws that secure the ramp to the back panel.
5) Remove the two ESN nuts that hold the ramp to the tall posts located near the upper flipper, and
remove the hex head post that holds the ramp to a short post next to the drop hole ring.
6) Carefully, slide the ramp out of the slot on the back panel and remove the ramp from the playfield.
SWITCH
CONNECTOR
SCREWS
HEX HEAC POST
ESN
PHiLL;PS SC.::;EWS
HEAD SCREWS
Ramp Assembly #2
1) Raise the playfield all the way up, and lean it against the backbox.
Unplug connectors for the
switches. Lower the playfield so that it rests on the safety brackets.
2) Remove the Right Wire Ramp and Ramp Assembly #1
3) Remove two small Phillips screws located at the sides of the right flap.
4) Carefull, slide the ramp out of the slot on the back panel and remove the ramp from the playfield
6-- - ..-- --~
CONNECTOR
SWITCH
~""'I
HI_UlJS SCREWS
1-50
!
