A-15361

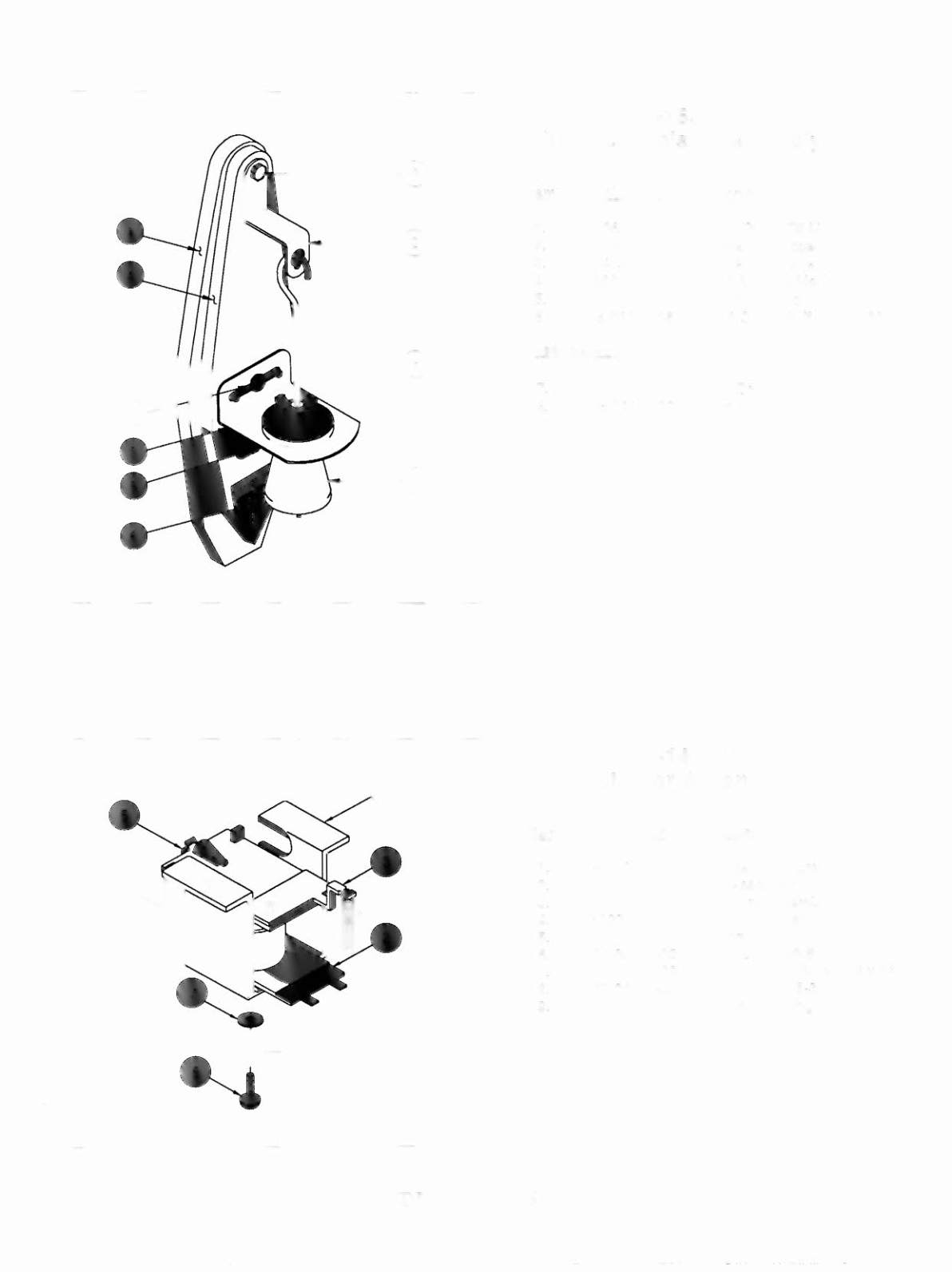

Tilt Mechanism Assembly
nsm
Part Number
1.
2.
3.
4.
5.
6.
A-15360
01-3444
01-3445
03-8668
12-6231
4006-01113-06
Description
Mount Plate, Tilt Mech.
Bracket, Tilt Upper
Bracket, Tilt Lower
Pendulum, Tilt Mech.
Wire, Plum Bob
MS, 6-32 x 3/8 PL-HEX-WHD
7.
20-6502-A
Plum Bob
8.
4406-01120-00 Wing Nut (2)
Associated Parts
A-14422
Actuator Assembly
I.mm
part Number
1.
2.
3.
4.
5.
6.
7.
8.
9.
01-8111
A-14406
A-11146
A-6892
10-120
4701-00003-00
4700-00089-00
4008-01021-07
10-194
INDIANA JONES 2-35
pescrlption
Ball Gate Coil Bracket
Coil Assembly
Armature Assembly
Frame
&
Eyelet Assembly
Spring
Lockwasher #8 Split
Flatwasher, 11/64 x 7/16 x 16ga.
Mach. Screw, 8-32 x 7/16"
Extension Spring
