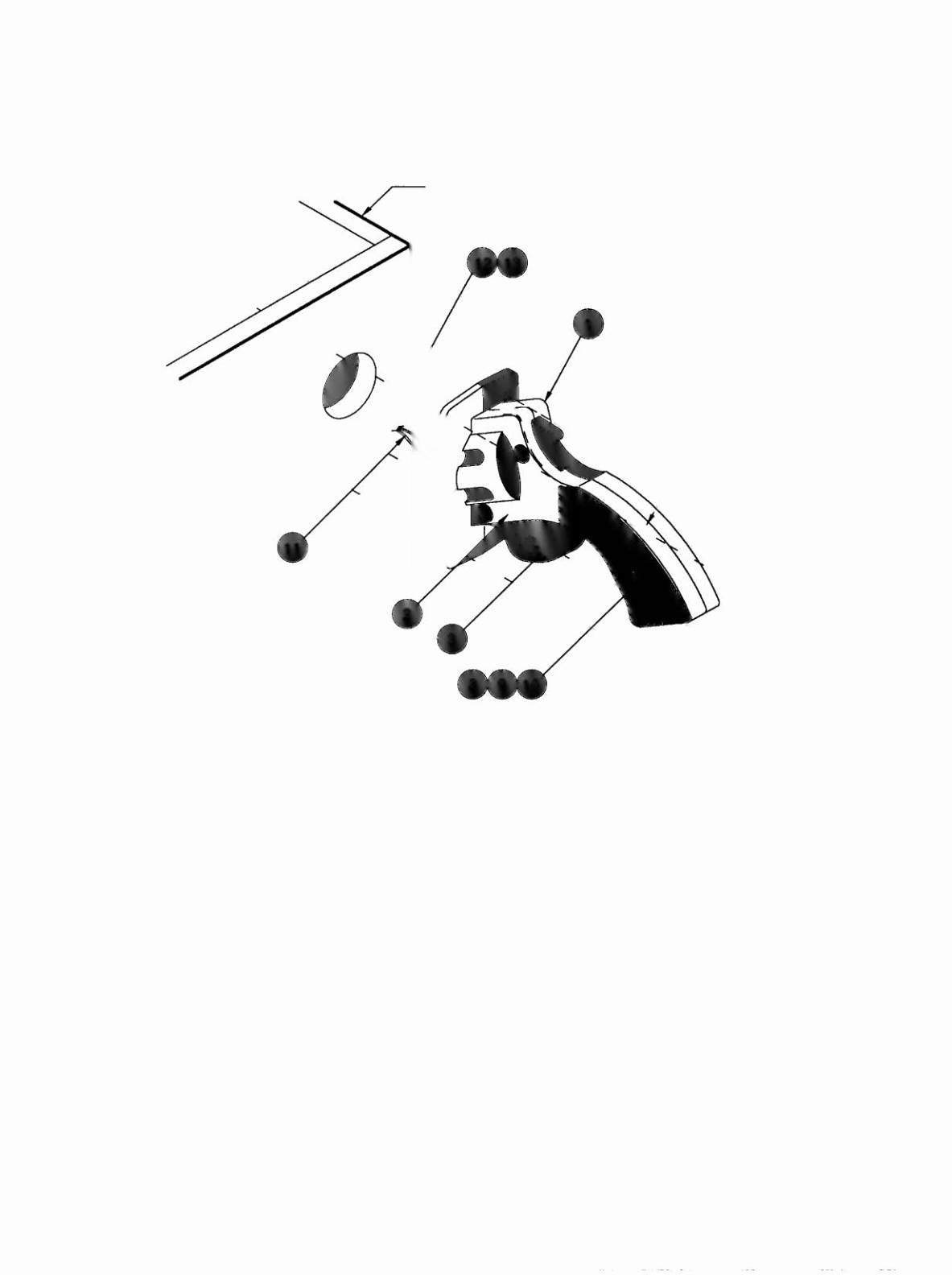

A-16113 Gun Handle Assembly
Cabinet shown for reference only
o
~,
;'
~
<,
/
I
"
I
<,
I
/
'/
/
<:
I
I
<,
/
'",-
I
<,
I
'
uem
part Number
Description
1.
21-6692-1
2.
21-6692-2
3.
01-11066
4.
10-320
5.
5647-12133-12
6.
02-4547
7.
4702-00014-008
8.
4700-00129-008
9.
4702-00013-008
10.
4010-01097-068
11.
H-16871
12.
RM-21-03
13.
5070-09054-00
Gun Handle, Right
Gun Handle, Left
Trigger
Extension Spring (Red)
Miniature Switch
Fastner
Lockwasher #1/4, Int. Tooth (8lack)
Flatwasher, 13/64 x 15/32 x 22ga.
Lockwasher #10, Int. Tooth (8lack)
Mach. Screw, #10-32 x 3/8 TR-8H
Cable Assembly
Tubing #10
Diode 1N4004
INDIANA JONES 2-20
