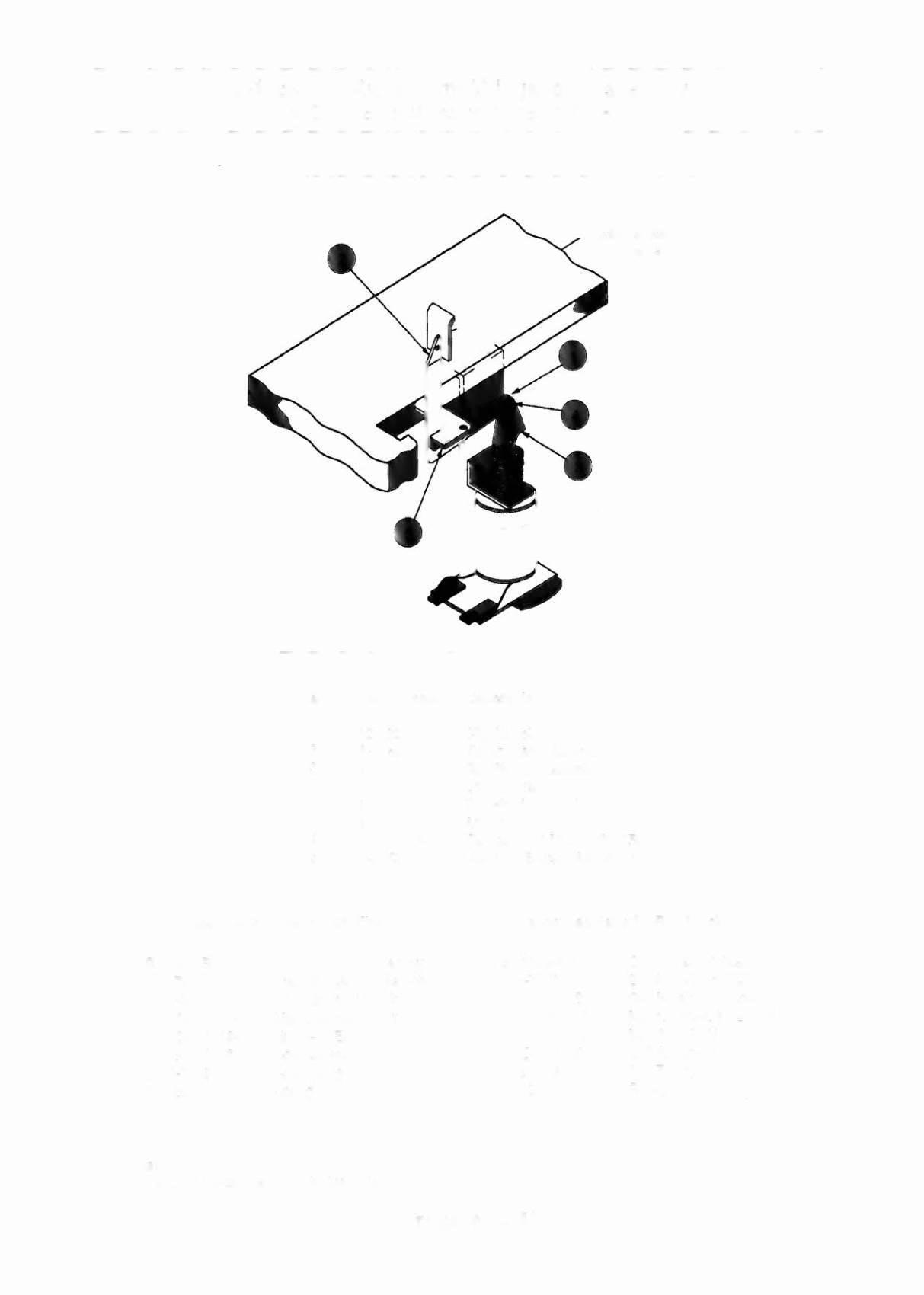

8·12665 Kicker Arm (Slingshot) Assembly
w/Coil
&
Bracket Assembly: B-11203-R-1
Item Part Number
Description
1.
12-6227
Clip, Hairpin
2.
A-12664
Kicker Crank Assembly
3.
A-S103
Coil Plunger Assembly
a)
*
Coil Plunger
b)
*
Roll Pin,
1/8
x
7/16
c)
*
Armature link
4.
4700-00030-00 Flatwasher,
17/64
x
1/2
x
15ga.
5.
A-5653
Mounting Bracket Assembly
Associated Parts for
Left
Kicker
Associated Parts for Right Kicker
B-11203-R-1
B-7572-1
01-8-508-S
4006-01017-06
4406-01119-00
AE-26-1500
03-7066
10-128
Coil
&
Bracket Assembly
Bracket
&
Stop Assembly
Coil Retaining Bracket
Mach. Screw, 6-32 x 3/8
Nut, 6-32 ESN
Coil Assembly
Coil Tubing
Spring
B-11203-R-1
B-7572-1
01-8-508-5
4006-01017-06
4406-01119-00
AE-26-1500
03-7066
10-128
Coil
&
Bracket Assembly
Bracket
&
Stop Assembly
Coil Retaining Bracket
Mach. Screw, 6-32
x
3/8
Nut, 6-32 ESN
Coil Assembly
Coil Tubing
Spring
Note:
'" =
Not available for individual sale.
Hurricane 2-17
