C-9638

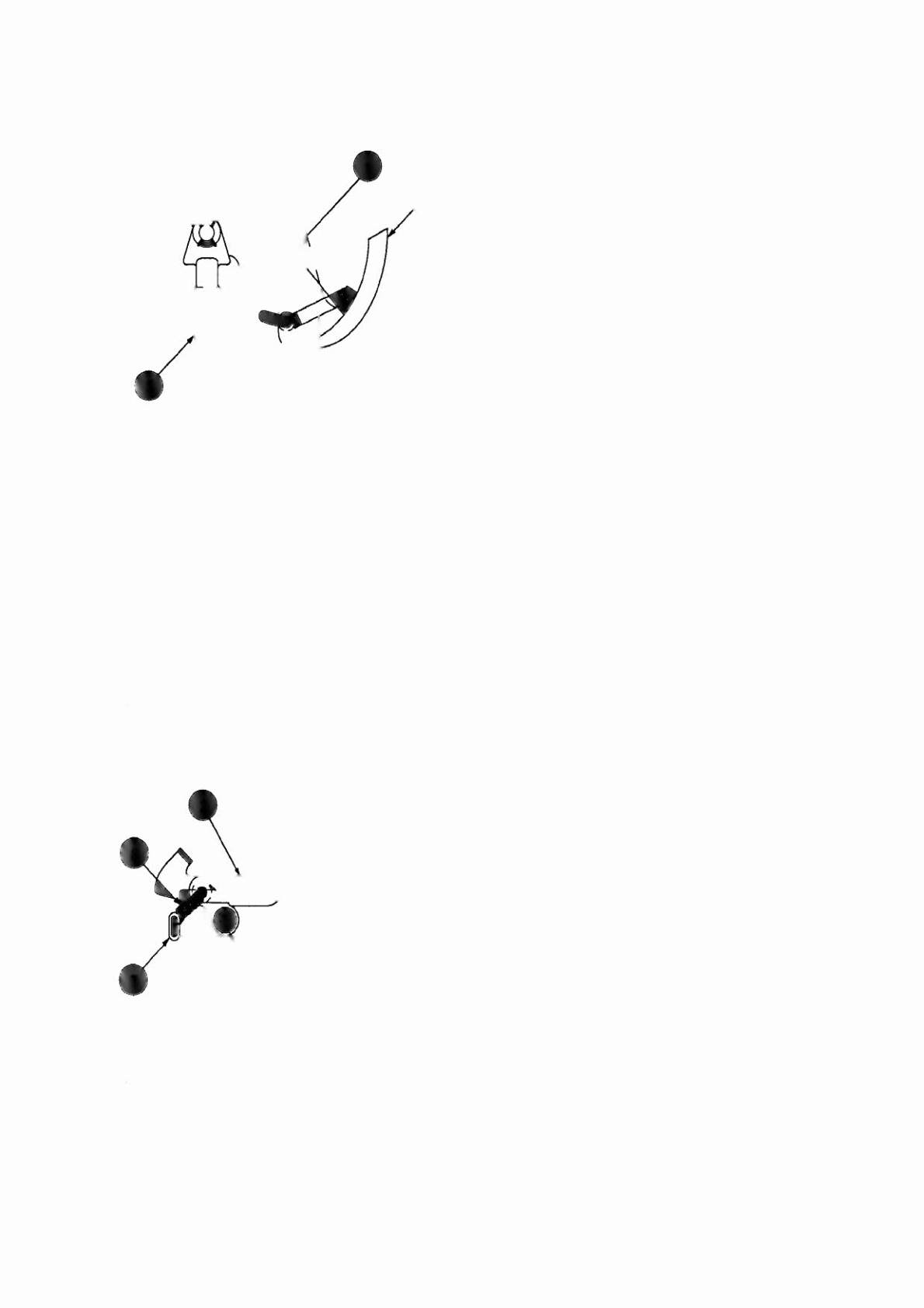

Ball Shooter Lane Feeder
Item Part Number
Description
1.
2.
3.
4.
5.
a)
b)
c)
6.
7.
8.
9.
12-6227
A-8247
10-362
A-6949-L
A-8050-1
*
*
*
12-6227
4700-00030-00
4700-00103-00
A-8268
Hair Pin Clip
Eject Cam Assembly
Ejector Spring (Plain)
Spring Plate Assembly
Coil Plunger Assy,
2-1/8"
Coil Plunger,
2-1/8"
Roll Pin,
1/8
x
7/16
Armature Link
Hair Pin Clip
Flatwasher,
17/64 x1/2
x lSga.
Flatwasher,
17/64
xll2 x 28ga.
Mounting Bracket Assembly
Associated Parts
B·9362·R·3
B-7572-1
01-8-508-S
4006-01017-06
4406-01119-00
AE·26-1200
03·7066
10-128
Coil & Bracket Assembly
Bracket & Stop Assembly
Coil Retaining Bracket
Mach. Screw, 6-32 x
3/8
Nut, 6-32 ESN
Coil Assembly
Coil Tubing
Spring
A-8039-3
Outhole Kicker Assembly
Item Part Number
Description
1.
A-6378
Mounting Plate Assembly
0
2.
A-8335
Coil Plunger Assembly
a)
*
Coil Plunger
0
b)
*
Roll Pin, 1/8 x
7/16
c)
*
Ball Return Link
3.
03-7066
Coil Tubing
4.
A-6S89
Kicker Lever Assembly
5.
A·S038
Coil Stop Assembly
6.
AE-27-1200
Coil Assembly
7.
03-7176-1
Striker Ring
8.
10-101-4
Spring-Reset
9.
20-8712-25
"E" Ring, 1/4" Shaft
10.
4006-01003-03 Mach. Screw, 6-32 x
3/16
Note:
*
=
Not available for individual sale.
