Page 74 - Hurricane

Basic HTML Version

B-9414-1

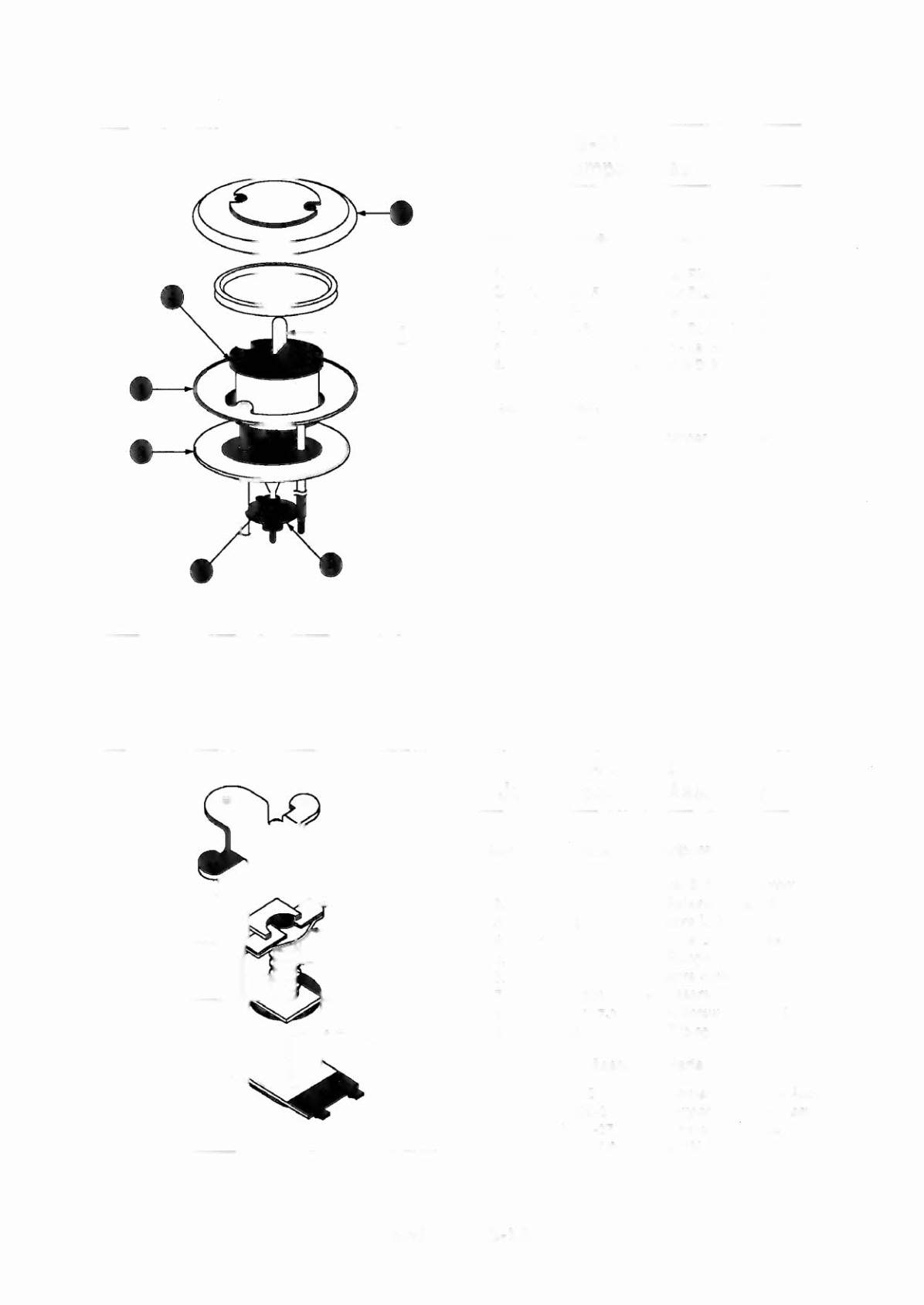

Jet Bumper Assembly
Item Part Number
Description
1.
A-4754
Bumper Ring Assembly
2.
03-6009-A5
Bumper Basa- Whne
3.
03-6035-1
Bumper Wafer· Blue
4.
03-7443-5
Bumper Body· White
5.
10-7
Spring· Jet Bumper
6.
A-11199
Socket
&
Bulb Assy.
Associated Part:
7.
03-8254-9
Jet Bumper Cap· Red
A·9415·2
Jet Bumper Coil Assembly
Item Part Number Description
1.
2.
3.
4.
5.
6.
7.
8.
9.
B-7417
01·1747
01-5492
01-5493
02-3406-1
10-326
AE-26-1200
4006-01017-04
03-7066
Bracket
&
Stop Assembly
Coil Retaining Bracket
Armature Link, Steel
Armature Link, Bakelite
Coil Plunger
Armature Spring
Coil Assembly
Mach. Screw, 6-32 x
1/4
Coil Tubing
Associated Parts
B-12030-2
B-12029-2
SW-11A·37
5070·09054·00
Hurricane 2-18
Jet Bumper Sw
&
Diode Assy
Jet Bumper Sw
&
Brkt. Assy
Jet Bumper Switch Assy
Diode, 1N4004
