B-9414-3

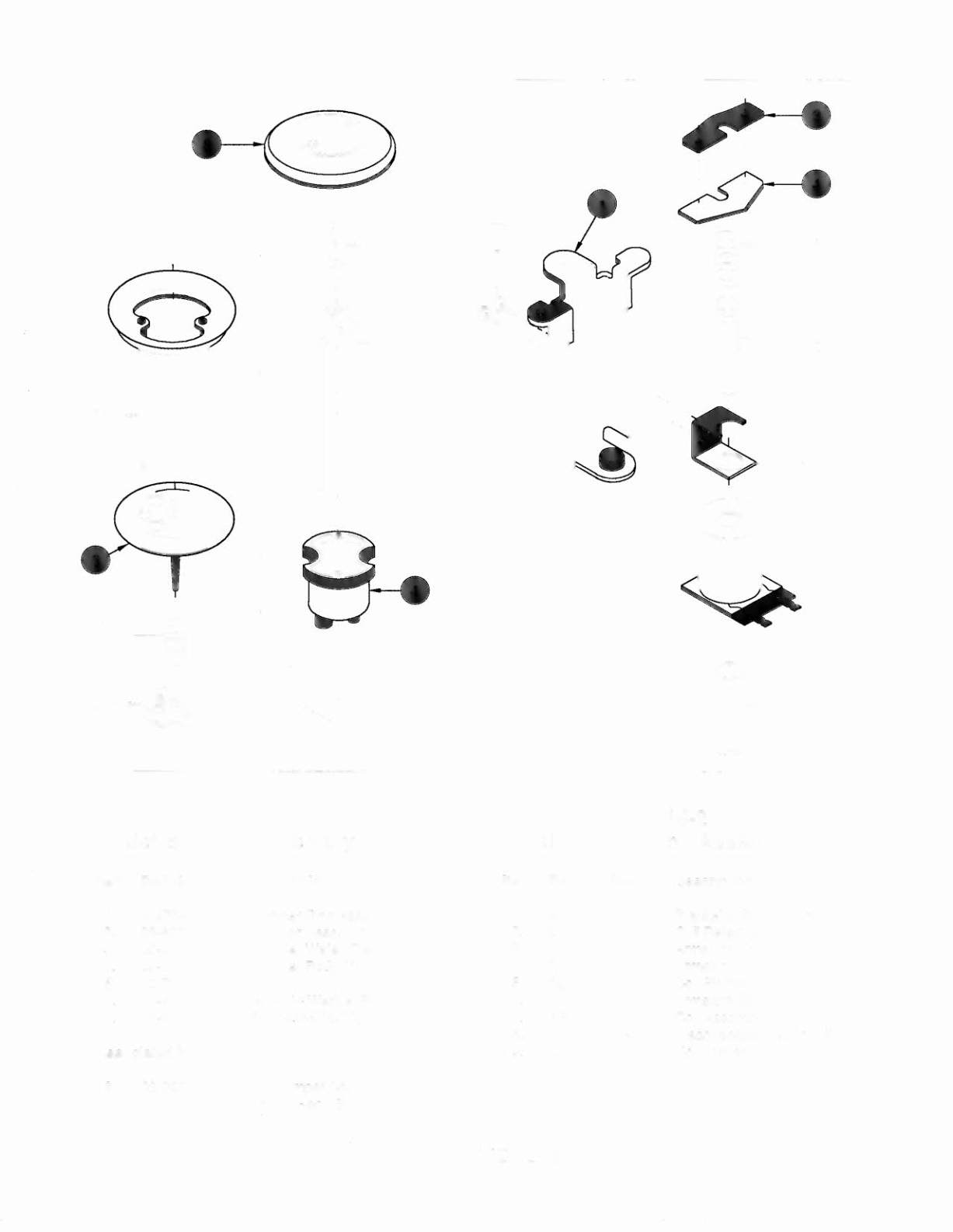

Jet Bumper Assembly
Item Part Number
1.
A-4754
2.
03-6009-A5
3.
03-6035-4
4.
03-7443-5
5.
10-7
6.
24-8776
7.
24-8768
Associated Parts:
8.
03-8254-9
Description
Bumper Ring Assembly
Bumper Base, White
Bumper Wafer, Red
Bumper Body, White
Spring
Socket - Wedge Base
Bulb #555 (6.3V., 0.25A.)
Jet Bumper Cap,
Trans. Red (3)
A-9415-2
Jet Bumper Coil Assembly
Item Part Number
Description
1.
B-7417
2.
01-1747
3.
01-5492
4.
01-5493
5.
02-3406-1
6.
10-326
7.
AE-26-1200
8.
4006-01017-04
9.
03-7066
Bracket
&
Stop Assembly
Coil Retaining Bracket
Armature Link, Steel
Armature Link, Bakelite
Coil Plunger
Armature Spring
Coil Assembly
Mach. Screw, 6-32 x 1/4"
Coil Tubing
