Page 97 - Doctor Who

Basic HTML Version

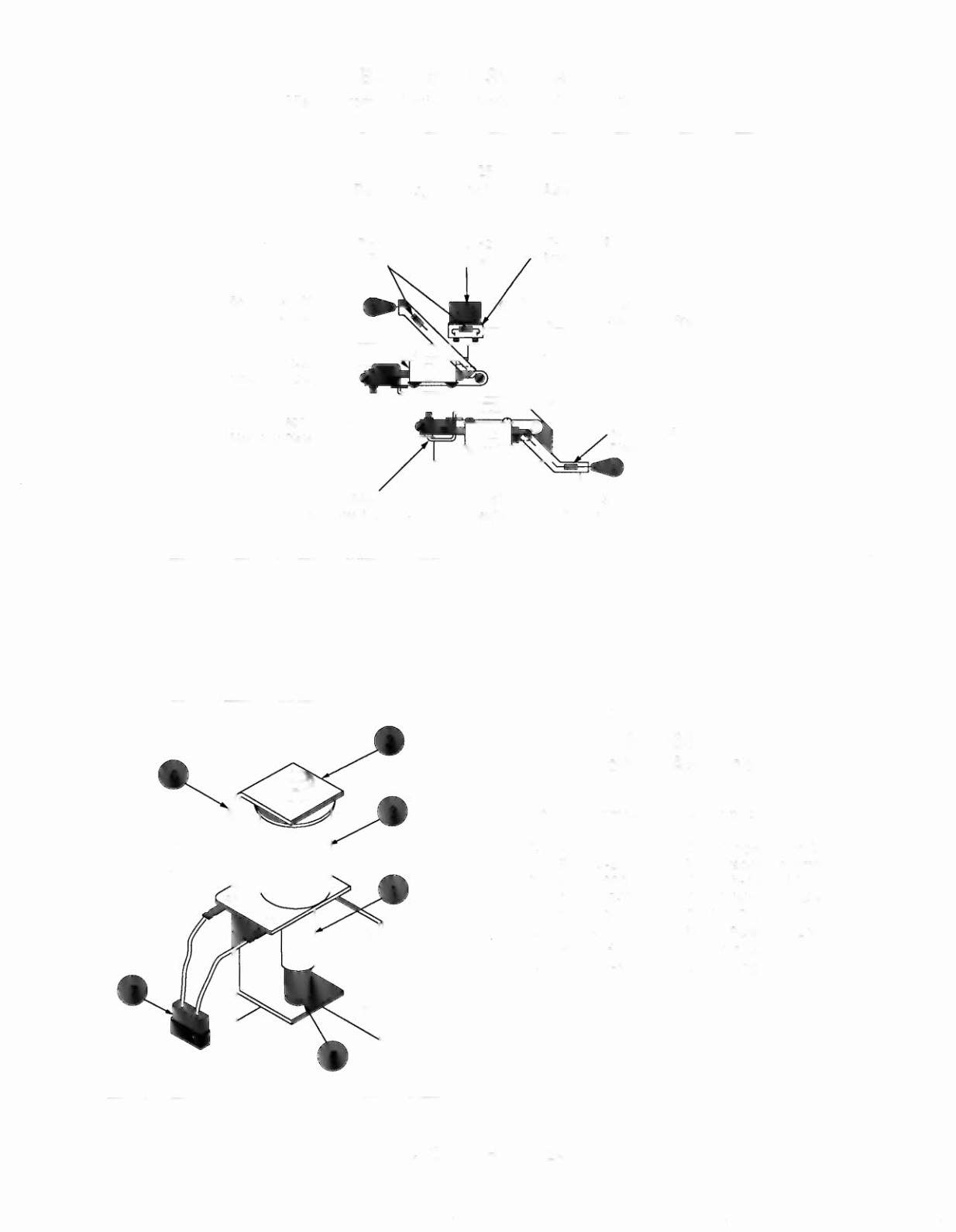

8all Trough Switches
(Viewed from underside of playfield to show locations)
8-8925
Ball Trough Switch Plate Assy.
5070-09054-00 01-8652
Diode
Bracket
5647-12693-08
Microswitch
5647-09957-00
Microswitch
1+-----A-8645
Sw. Wire & Bracket
A-8924
Mounting Plate
A-5844-44
Sw. Wire & Bracket
5647-09957-00
Microswitch
Tubing
8-10686-1
Knocker Assembly
Item Part Number
Description
1. A-5387
2.
B-7409-2
3.
AE-23-800
4.
01-8-508-T
5.
23-6420
6.
4008-01017-06
7.
H-11835
8.
03-7067-5
Coil Plunger Assembly
Mtg. Bracket Assembly
Coil Sub-Assembly
Coil Retaining Bracket
Rubber Grommet
Mach. Screw, 8/32 x 3/8
Knocker Cable
Coil Tubing
DOCTOR WHO 2-24
