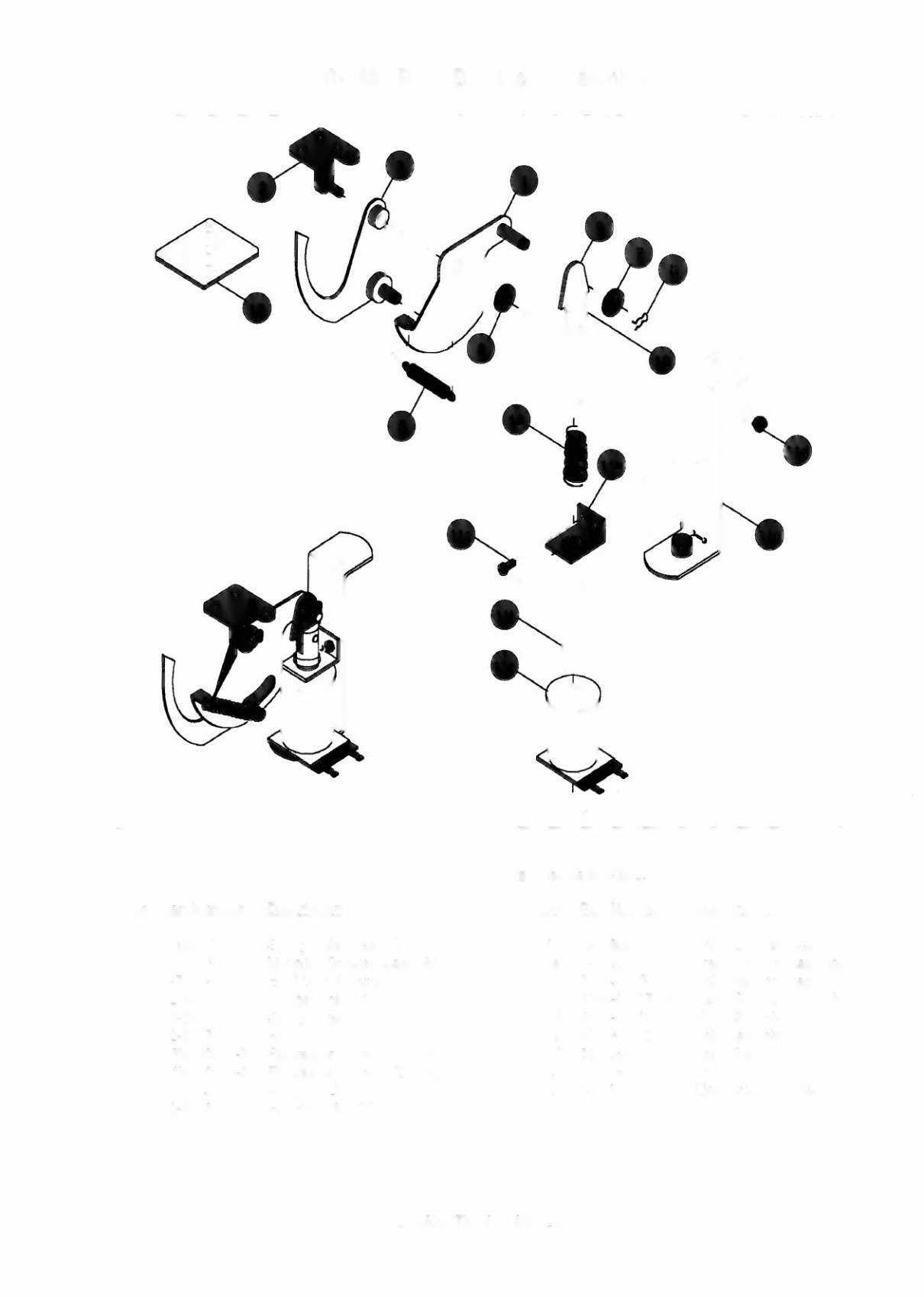

B·9361·R Ball Eject Assembly
• Associated Parts:
.IWn
part Number
Description
HIm
part Number
Description
1.
A-6949-R
Spring Plate Assembly
11
A·17809
Coil & Bracket Assembly
2.
A·18146
Mounting Bracket Assembly
a) A·17808
Bracket & Stop Assembly
3.
A·7471·R
Eject Cam Assembly
b) 01-8-508-S
Coil Retaining Bracket
4.
02-3407
Plunger Coil:
2·1/4·
c) 4006-01017 -06 Mach. Screw, 6·32 x 3/8
5.
10-362
Spring • Eject
d) 4406-01119-00 Nut, 6·32 ESN
6.
12·6227
Hair Pin Clip (2)
e) AE·26·1200
Coil Assembly
7.
4700·00030-00 Flatwasher,
17/64 x1/2
x 15ga.
f)
03-7066
Coil Tubing
8.
4700-00103-00 Flatwasher, 17/64
x1/2
x 28ga.
12.
10-128
Spring
9.
03-8085
Armature Link
13.
03-9101·9
Eject Shield (Tr. Red)
10.
20-8716·5
Roll Pin:
1/8
x
7/16·
DEMOLITION MAN 2-21
