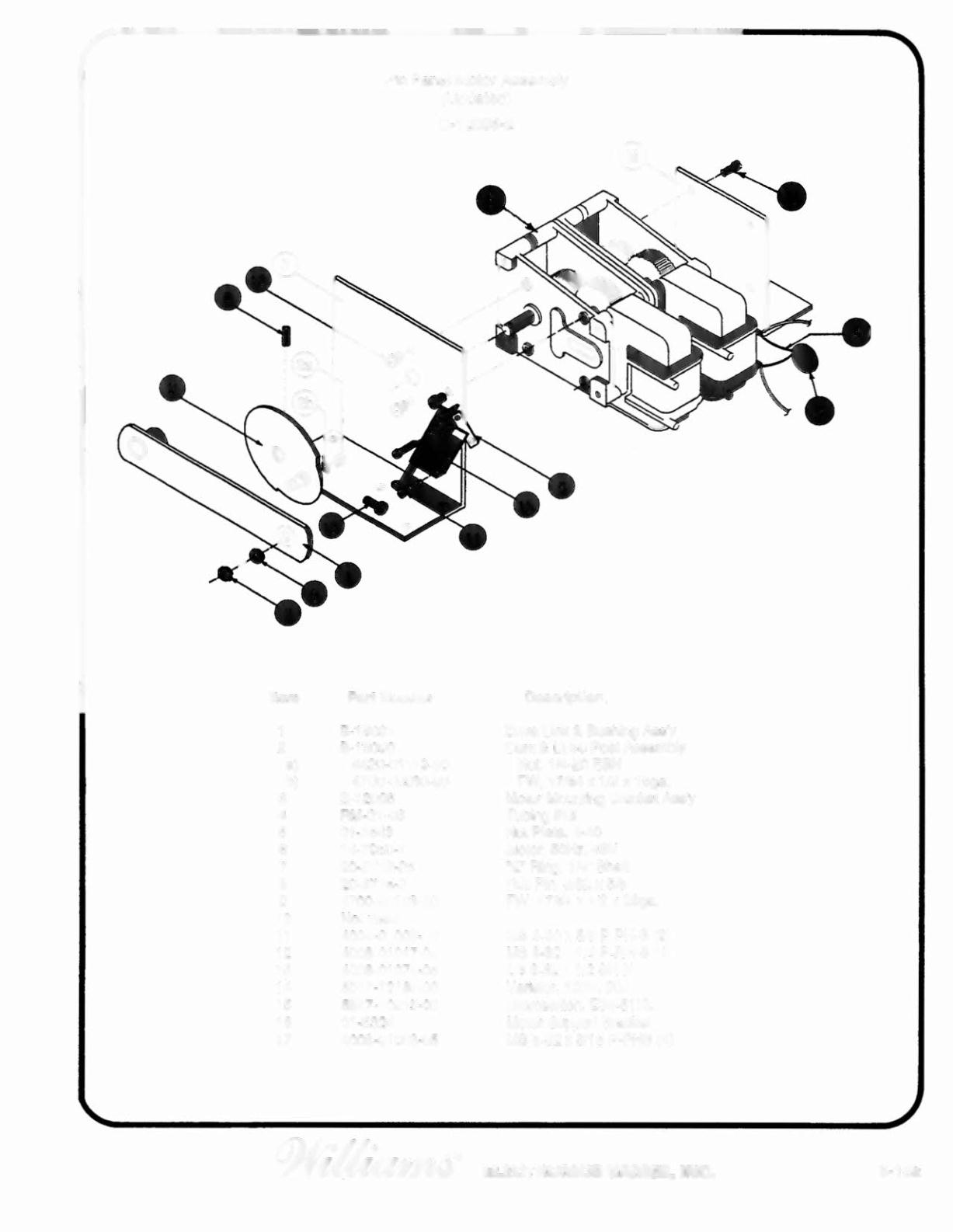

Pin Panel Motor Assembly
(Updated)
C-12096-2
Hem Part Number
Description.
.1
8-13091
Drive Unk
&
Bushing Ass'y
2
8-13090
Cam
&
Drive Post Assembly
a)
4420-01119·00
Nut, 114-20ESN
b)
47()()..O0030·00
FW.
17/64
x 112x 15ga.
3
B-12095
Motor Mounting Bracket Ass'y
4
RM·21-06
Tubing #18
5
01·7543
Nut Plate, 4-40
6
14-7950-1
Motor, 50Hz. 48V
7
20-8712-25
·E· Ring,
1/4-
Shaft
8
20-8716-2
Roll Pin, 3132x 5/8
9
4700.()()103-00
FW, 17/64 x 112x 28ga.
10
Not used
11
4004-01 003-1
a
MS 4-40 l( 518P-PH-S (2)
12
4008-01017-04
MS 8-32 l(
V4
P-RH-S (4)
13
4008-01074-08
CS 8-32 l( 112SH-N
14
5017-12180-00
Varistor, l00V, 20J
15
5847·10915-00
Microswitch, E34-51KL
16
01·5324
Motor suppon Bracket
17
4008-01003-OS
MS 8·32l( 5/16 P-PHS (4)
ELECTRONICS GAMEB.INC.
8-18a
