8-16

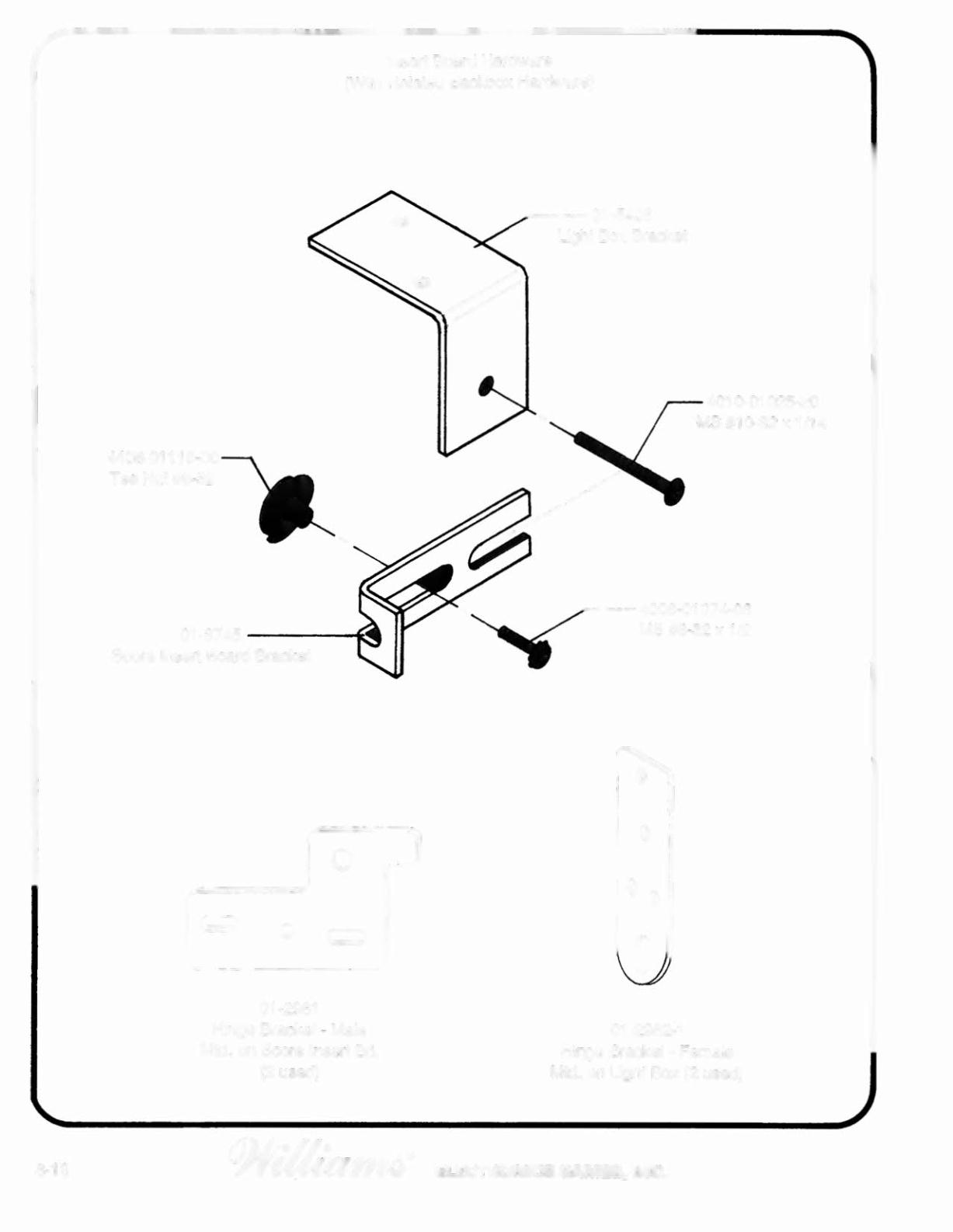

Insert Board Hardware
(With Related Backbox Hardware)
---01-5496
Ught Box Bracket
4408-01118-00
Tee Nut #8-32
4010-01025-20
MS #10-32 x
1/14
01-3745
----_.,IIO;,j
Score Insert Board Bracket
_,----
4008-01074-08
MS #8-32
x
1/2
01-2961
Hinge Bracket - Male
Mtd. on Score Insert BeL
(2 used)
01-2962-1
Hinge Bracket - Female
Mtd. on Light Box (2 used)
nu-rr-
~e
7'~
ELECTRONICSGAMEB.INC.
