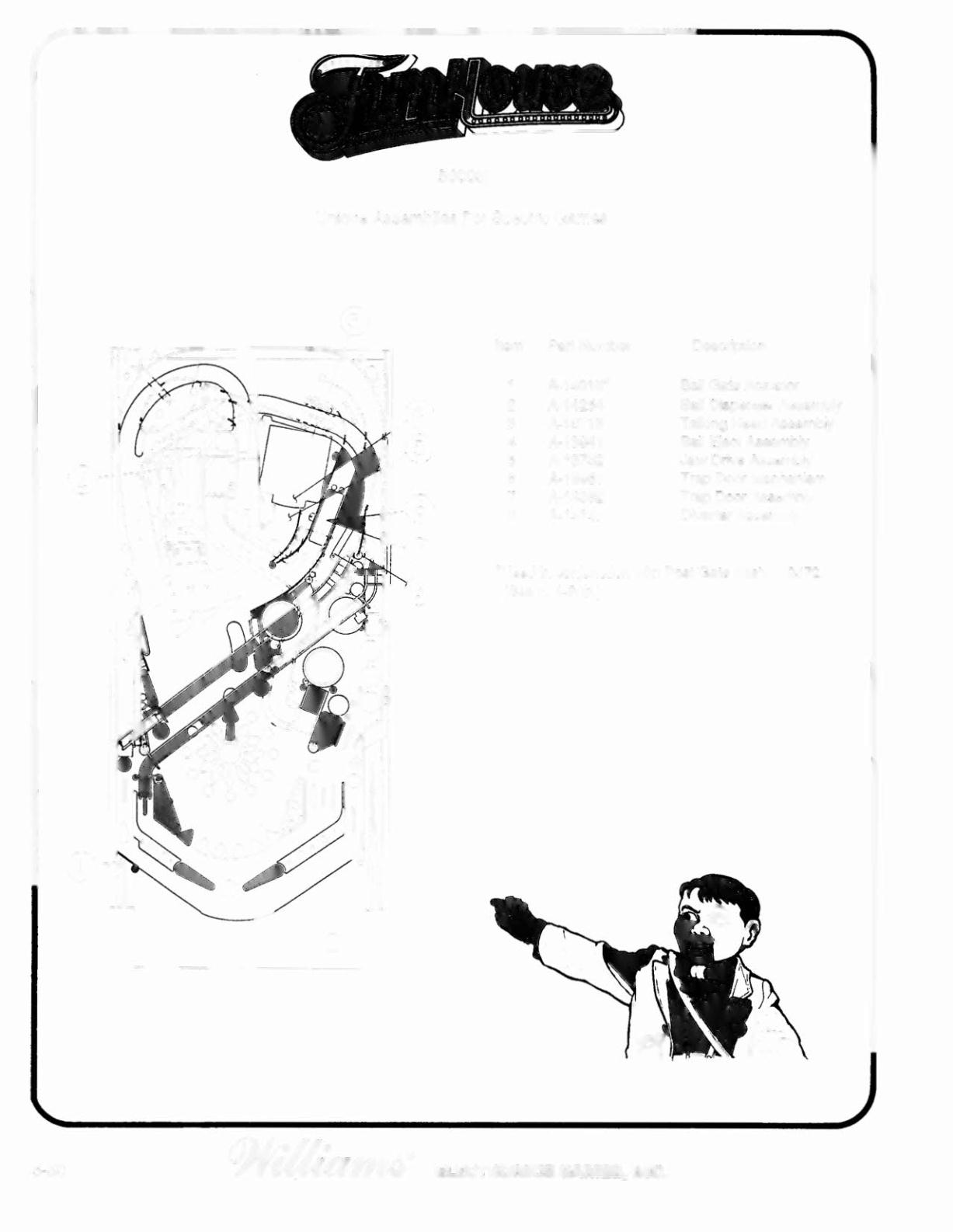

Page 486 - Williams RED Parts Catalog 16-9190-B

(50003)
Unique Assemblies For Specific Games
''--''_3 \
" ,
->,
.6:<.:»
o
Item Part Number Description
A-1401S* Ball Gate Actuator
2 A-14254 Ball Dispenser Assembly
3 A-1371S Talking Head Assembly
4 A-13941 Ball Eject Assembly
5 A-13752 Jaw Drive Assembly
6 A-139B1 Trap Door Mechanism
7 A-14362 Trap Door Assembly
S A-14147 Diverter Assembly
*Used in conjunction with PosVGate Ass) A-9572.
(See p. 4-20b.)
5-50 ELECTRONICS GAMEB.INC.
