(571)

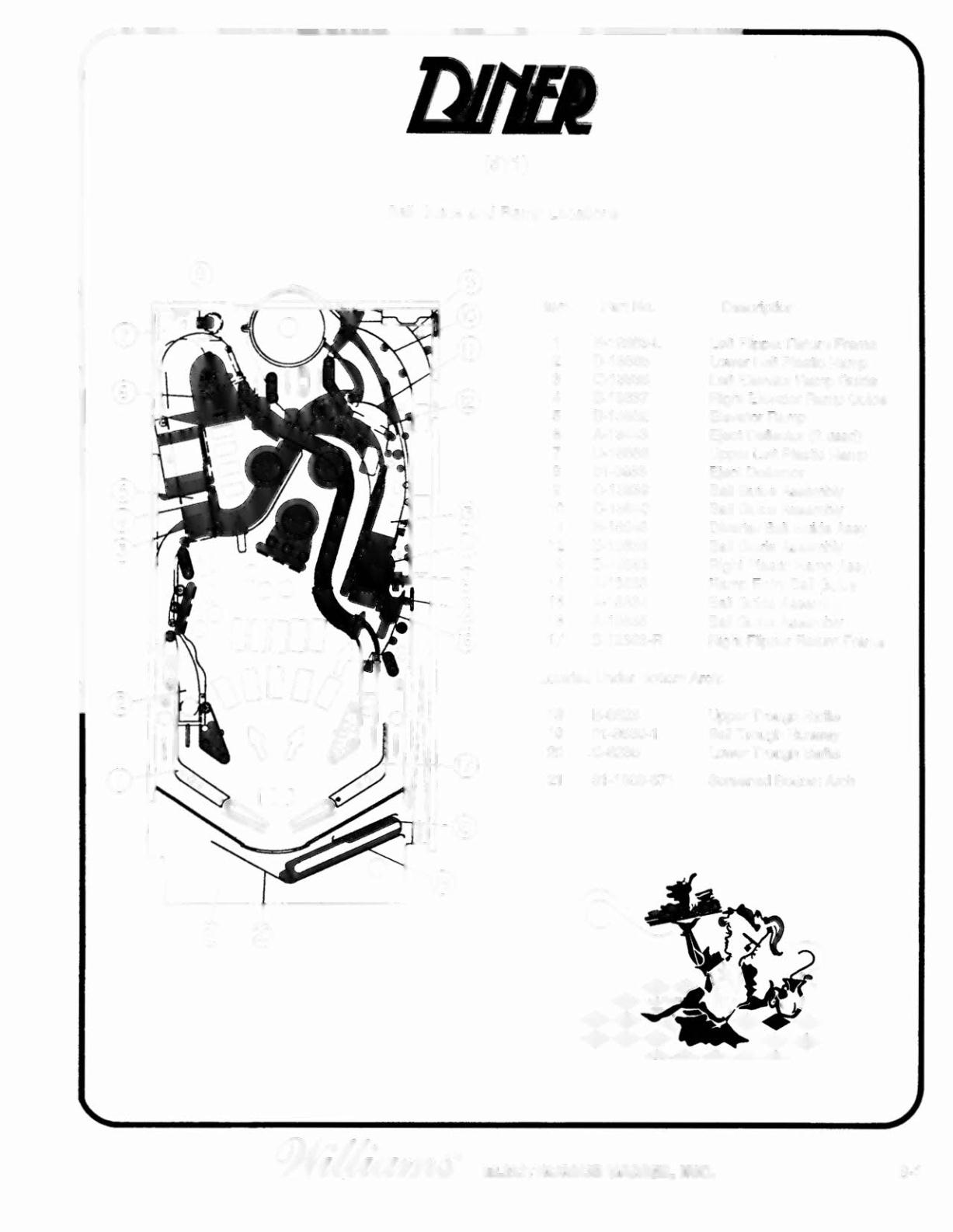

Ball
Guide
and Ramp
Locations
Item Part No.
Description
1 B-12363-l
left Flipper Return Frame
2 0-13665
lower Left Plastic Ramp
3 0-13638
left Elevator Ramp Guide
4 B-13637
Right Elevator Ramp Guide
5 B-13662
Elevator Ramp
6 A-13443
Eject Deflector (2 used)
7
0-13666
Upper Left Plastic Ramp
8 01-6933
Eject Deflector
9 C-13639
Ball Guide Assembly
10 0-13640
Ball Guide Assembly
11 8-13348
Diverter Ball Guide Assy.
12 8-13636
Ball Guide Assembly
13 0-13663
Right Plastic Ramp Assy.
14 A-13633
Ramp Entry 8all Guide
15 A-13634
Ball Guide Assembly
16 A-13635
Ball Guide Assembly
17 B-12363-R Right Flipper Return Frame
Located Under Bottom Arch:
18 8-8623
Upper Trough Baffle
19 01-3569-1
Ball Trough Runway
20 0-8235
lower Trough Baffle
21 31-1008-571 Screened Bottom Arch
ELECTRONICS GAMEB.INC.
3-1
