Page 196 - Williams RED Parts Catalog 16-9190-B

SEO Version

2-24b
Playfield Hardware - cont'd

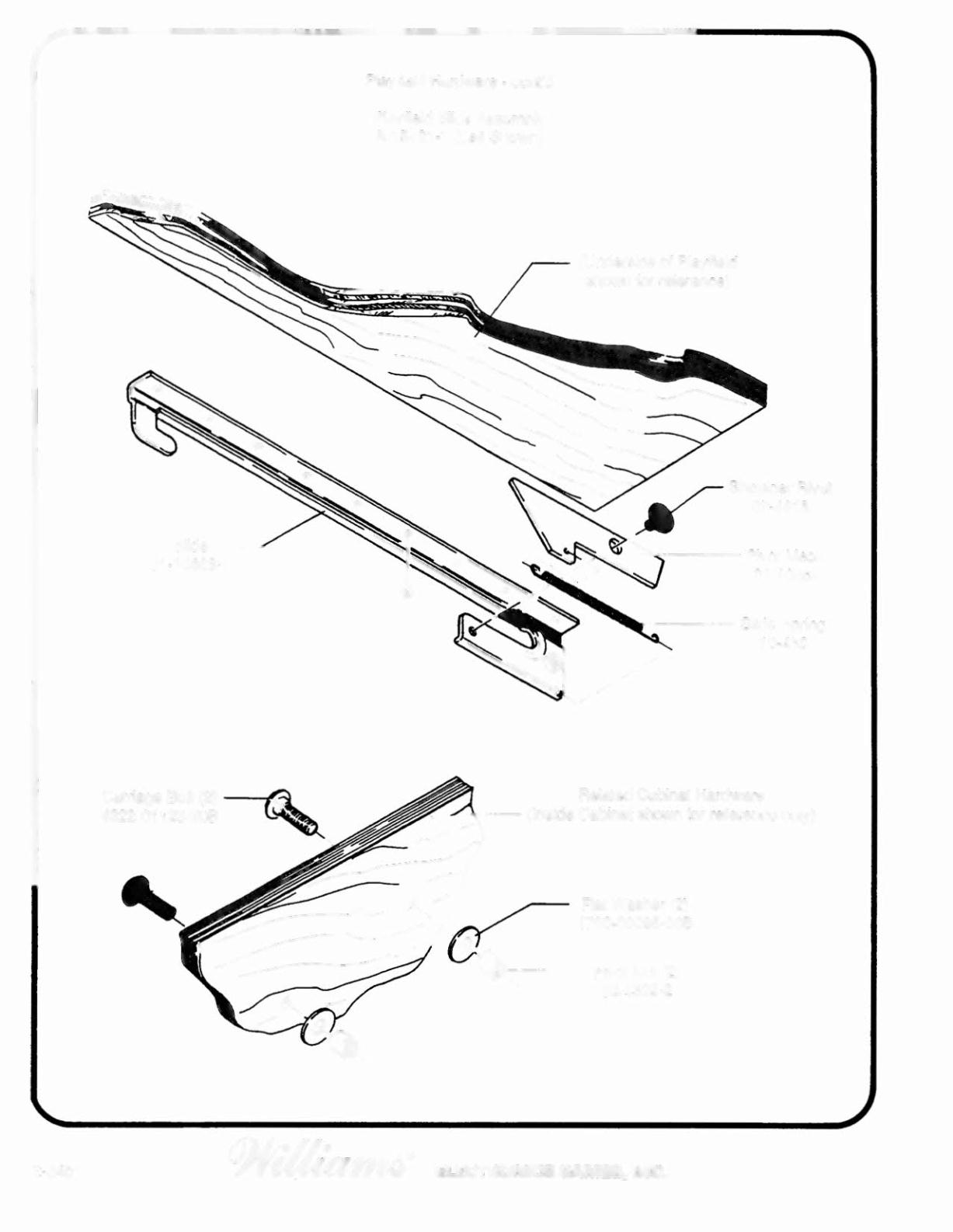

Playfield Slide Assembly
A-15421-1
(Left Shown)
(Underside of Playfield
shown for reference)
Slide--'"
01-10663-1
~---
Pivot Mech.
01-10664
..•• ._----
Slide Spring
10-439
Carriage Bolt (2)
---&.
4322-01123-208
~
Related Cabinet Hardware
-Ir--
(Inside Cabinet shown for reference only)
Flat Washer (2)
4700-00095-006
'-A!SI-----
Pivot Nut (2)
02-4329-2
~~e
