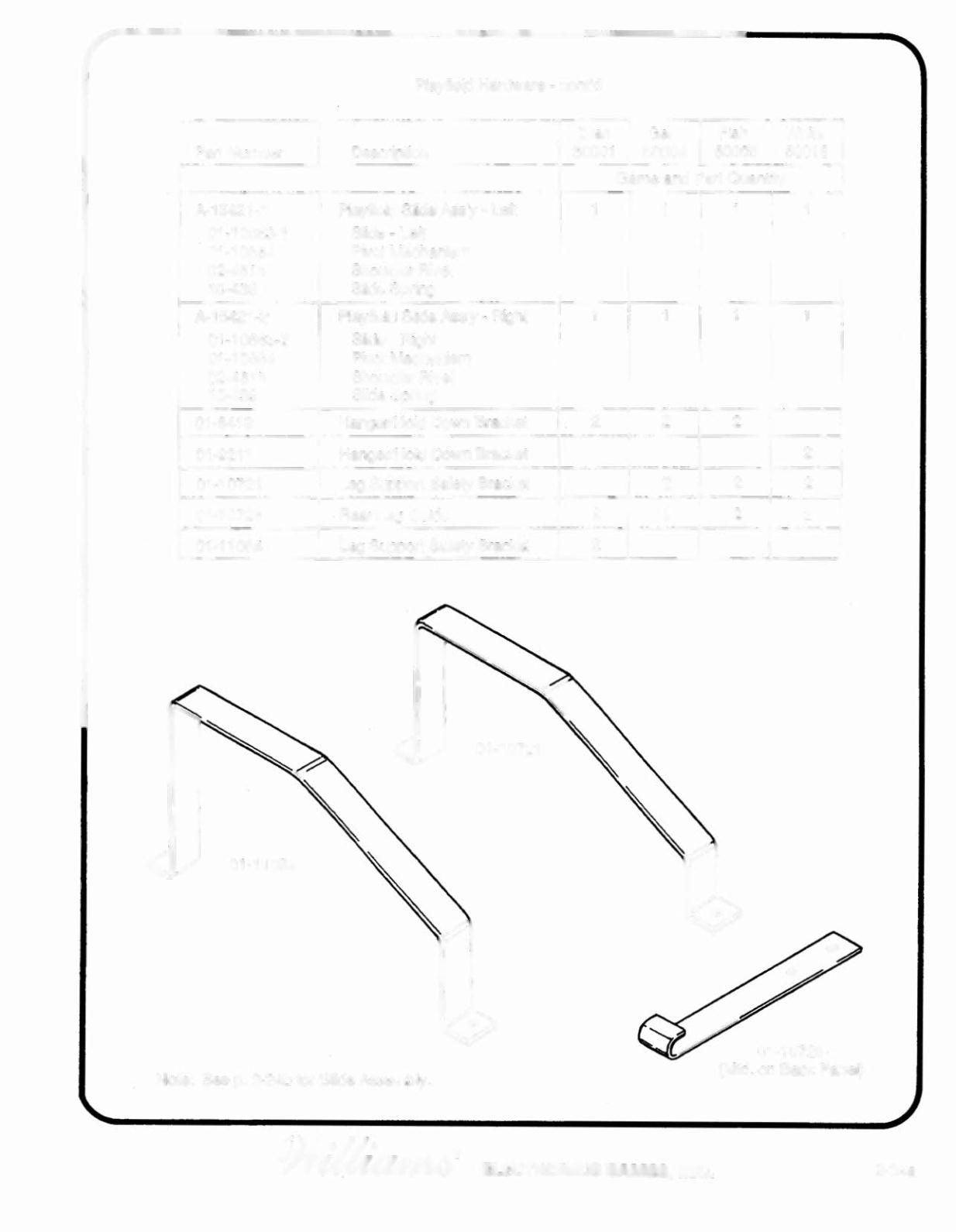

Page 195 - Williams RED Parts Catalog 16-9190-B

SEO Version

Playfield Hardware - cont'd
Drac
Get
Fish
White
Part Number
Description
50001 50004 50005 50018
Game and Part Quantity
A-15421-1
Playfield Slide Ass'y - Left
1
1
1
1
01-10663-1
Slide - Left
01-10664
Pivot Mechanism
02-4615
Shoulder Rivet
10-439
Slide Spring
A-15421-2
Playfield Slide Ass'y - Right
1
1
1
1
01-10663-2
Slide - Right
01-10664
Pivot Mechanism
02-4615
Shoulder Rivet
10-439
Slide Spring
01-8419
Hanger/Hold Down Bracket
2
2
2
01-9211
Hanger/Hold Down Bracket
2
01-10721
Leg Support Safety Bracket
2
2
2
01-10726
. Rear leg Guide
2
2
2
2
01-11084
leg Support Safety Bracket
2
01-10721
01-11084
Note: See p.
2-24b
for Slide Assembly.
