5-108
Unique Assemblies - cont'd
WHO?OUNNIT (50044)

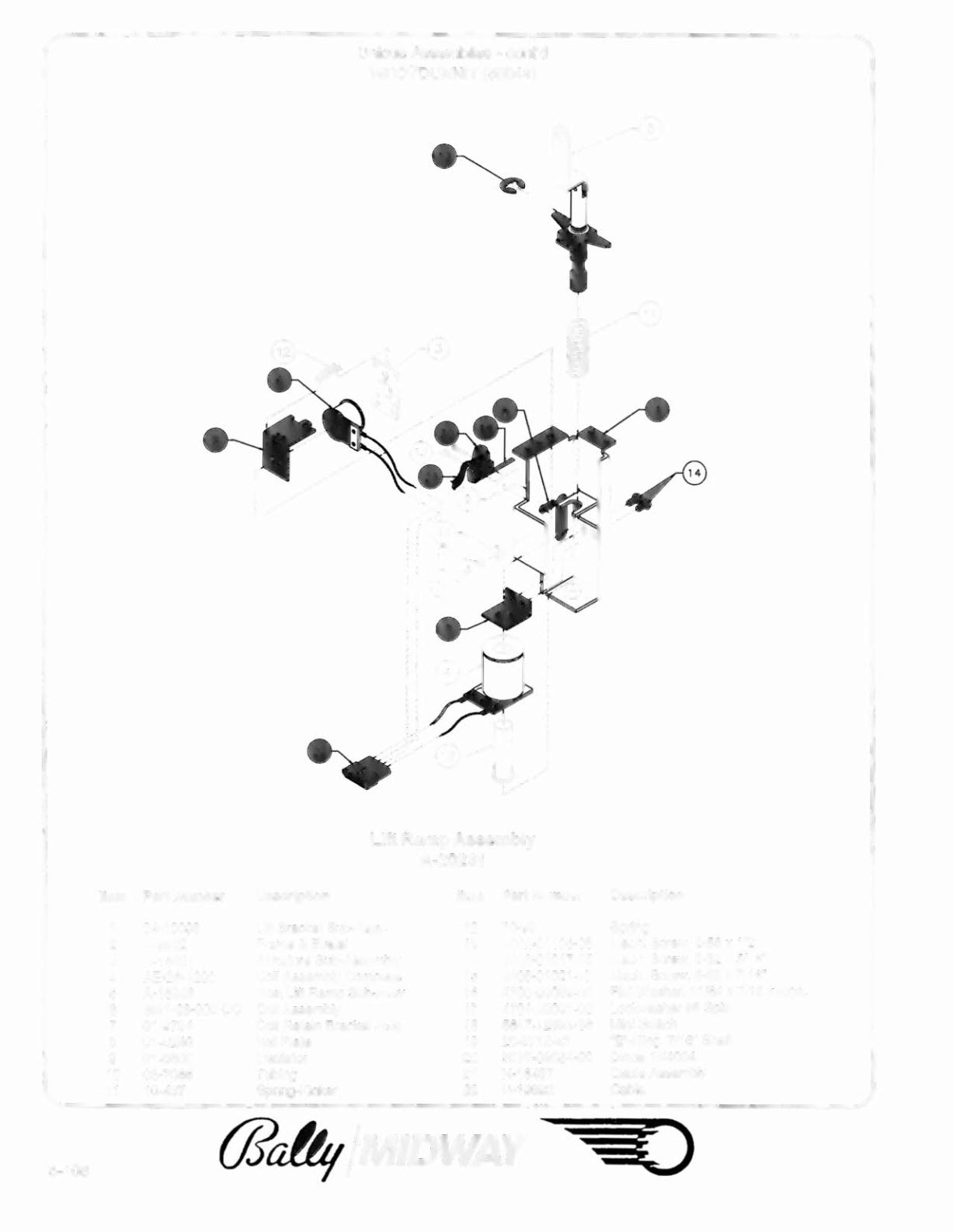

Lift Ramp Assembly
A-20231
Item Part Number
Item Part Number
Description
Description
1 04-10093
Lift Bracket Sub-Assy.
12 10-96
Spring
2 A-6892
Frame
&
Eyelet
13 4002-01105-08 Mach. Screw, 2-56 x
1/2"
3 A-15821
Armature Sub-Assembly
14 4008-01017-05 Mach. Screw, 8-32 x
5/16"
4 AE-26-1200
Coil Assembly Complete
15 4008-01021-07 Mach. Screw. 8-32 x 7/16"
5 A-16248
Post Lift Ramp Sub-Assy.
16 4700-00089-00 Flat Washer, 11/64 x 7/16 x16ga.
6
SM1-28-900-0C Coil Assembly
17 4701-00003-00 Lockwasher #8 Split
7 01-9794
Coil Retain Bracket Assy.
18 5647-12693-36 Mini Switch
8 01-8240
Nut Plate
19 20-8712-43
"E"-Ring, 7/16" Shaft
9 01-8600
Insulator
20 5070-09054-00 Diode 1N4oo4
10 03-7066
Tubing
21
H-16437
Cable Assembly
11
10-437
Spring-Kicker
22
H-19692
Cable
