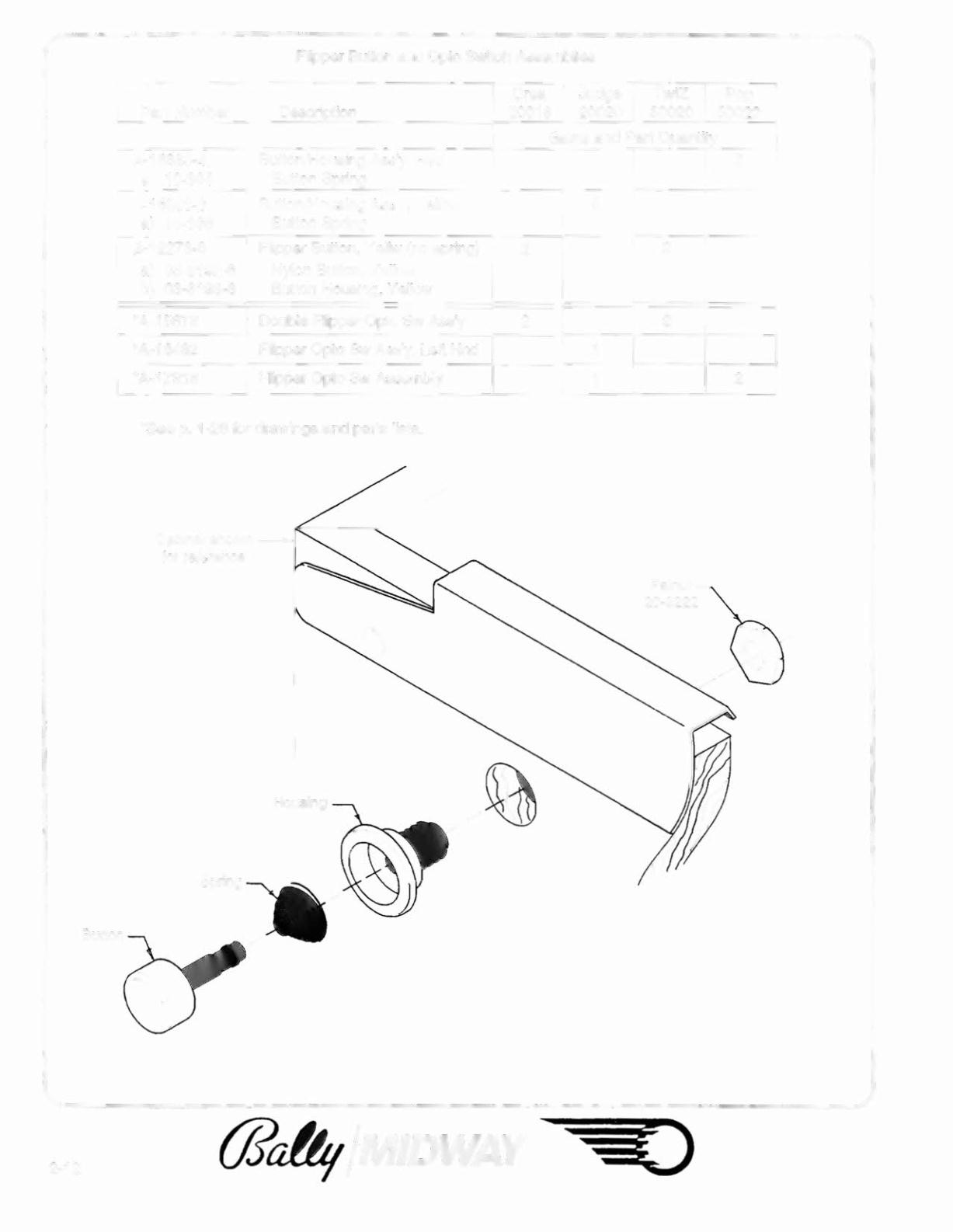

Page 132 - BallyMidway GREY Parts Catalog 16-9562-A

SEO Version

Flipper Button and Opto Switch Assemblies
Crea Judge TwiZ
Pop
Part Number
Description
200~8 20020 50020 50022
Game and Part Quantity
A-16883-4
Button/Housing Ass'y, Red
2
a) 10-366
Button Spring
A-16883-6
Button/Housing Ass'y, Yellow
2
a) ~0-366
Button Spring
B-~2273-6
Flipper Button, Yellw (no spring)
2
2
a) 03-8~ 92-6
Nylon Button, Yellow
b) 03-8193-6
BUtton Housing, Yellow
*A-15878
Double Flipper Opto Sw Ass'y
2
2
*A-~6482
Flipper Opto Sw Ass'y, Left Hnd
1
*A-173i6
Flipper Opto Sw Assembly
1
2
·See
p. 1-26 for drawings and parts lists.
Cabinetshown
for reference
Palnu t-
20-9222
Housing
Button
SPring=-/
2-12
(jJaI!&j
/MIDWAY
