Page 131 - BallyMidway GREY Parts Catalog 16-9562-A

Credit Button Assemblies
Crea Judge TwiZ Pop
Part Number Description 20018 20020 50020 50022
Game and Part Quantity
20-9663-1 -Start- Button, Yellow 1 1 1 1
20-9663-9 -Extra Ball- Button, Clear 1
A-15896-2 SWitch Button & cable 1
a) H-15724 Button Cable
b) 20-9663-9 -Extra BaU· Button, Clear
c) 23-6710-3 #10 Clear Tubing, 2ft
d) 5070-09054-00 Diode 1N4004, 1.0A (2)
A-17206-1 Switch Button & Cable 1
a} H-17202 Super Game Cable
b) 20-9663-13 -Super Game" Buttn, Green
c) 23-6710-3 #10 Clear Tubing, 2"
d) 5070-09054-00 Diode 1N4004, 1.0A (2)

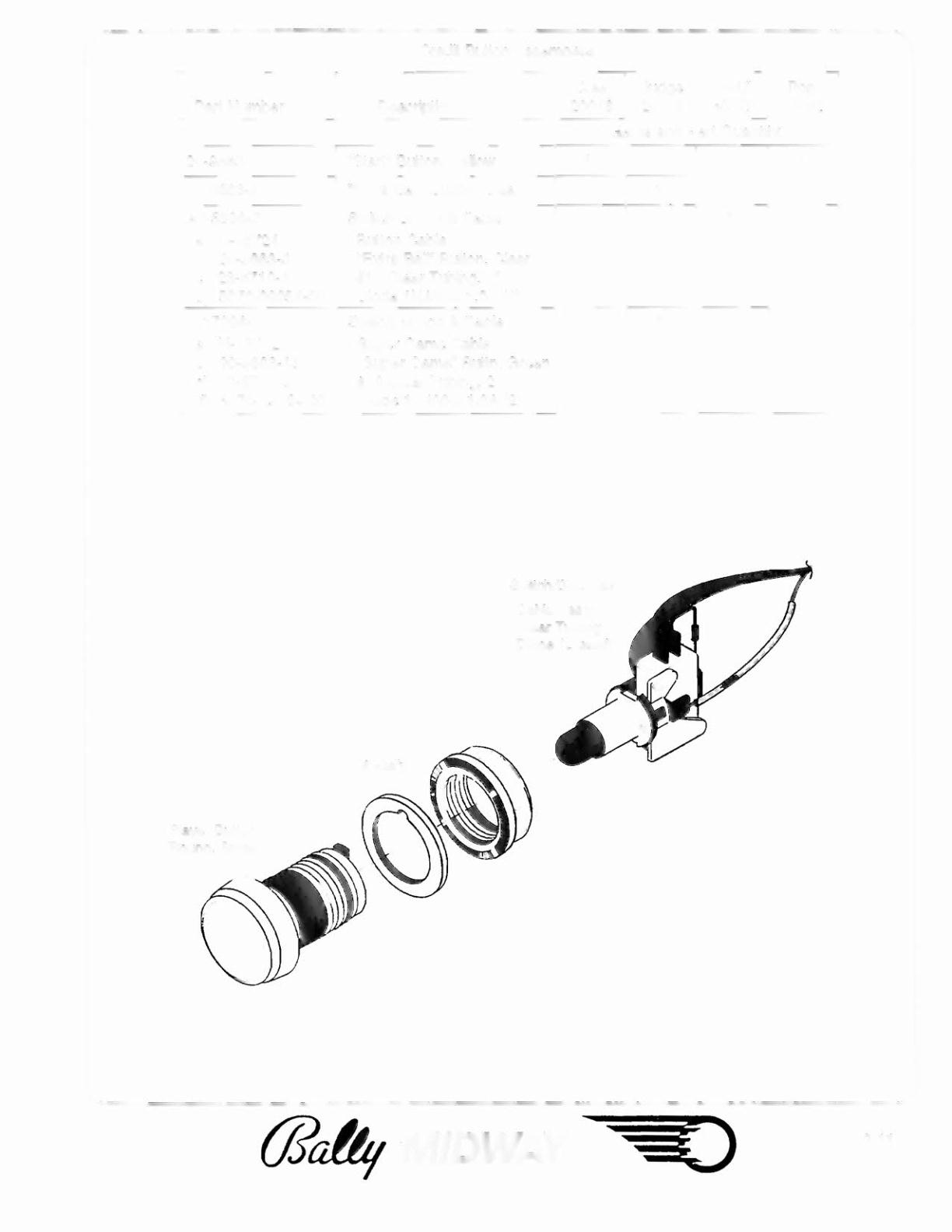

Switch/Bulb Ass'y:
Cable Ass'y
Clear Tubing
Diode (2 used)
Nut Ass'y
Player Button
(Round, Small)
(jJam; IM/DWAY 2-11
