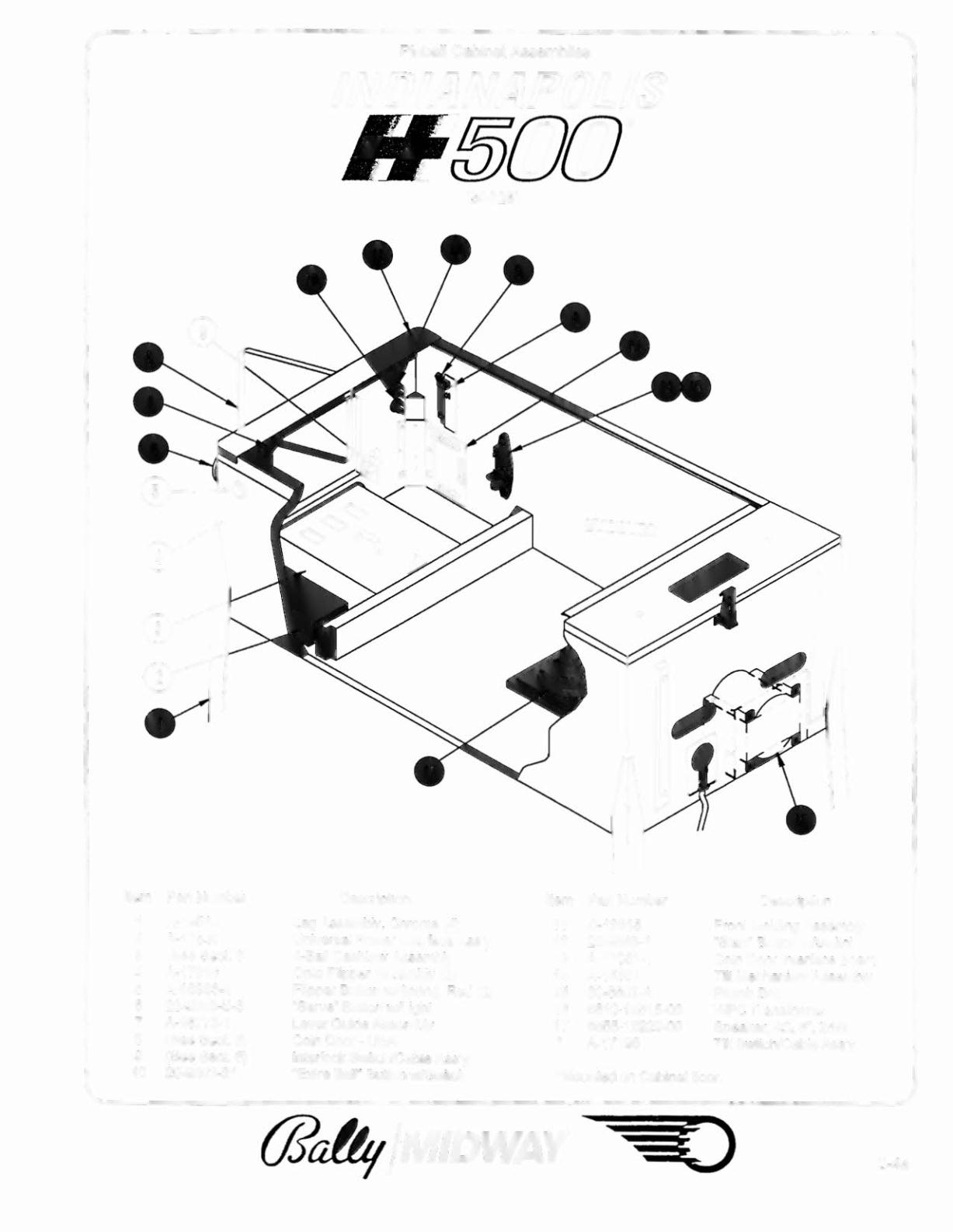

Pinball Cabinet Assemblies
(50026)
Item Part Number
Description
Item Part Number
Description
1 A-19514
Leg Assembly, Chrome (4)
11 0-12615
Front Molding Assembly
2 A-17540
Universal Power Interface Ass'y
12 20-9663-1
"Start" Button w/Switch
3 (See Sect. 8)
4-8all Cashbox Assembly
13 A-17051-1
Coin Door Interface Board
4 A-17316
Opto Flipper Assembly (2)
14 A-15361
Tilt Mechanism Assembly
5 A-16883-4
Flipper Buffon w/Spring, Red (2)
15 20-6502-A
Plumb Bob
6 20-9663-8-3
·Serve" Button w/Light
16 5610-14515-00
WPC Transformer
7 A-16773-1
Lever Guide Assembly
17 5555-12929-00
Speaker, 4(2, 6", 25W
8 (See Sect. 8)
Coin Door - USA
*
A-17195
Tilt Switch/Cable ASs'y
9 (See Sect. 6)
Interlock Switch/Cable Ass'y
10 20-9663-21
"Extra Ball" Button w/Switch
·Mounted on Cabinet floor.
