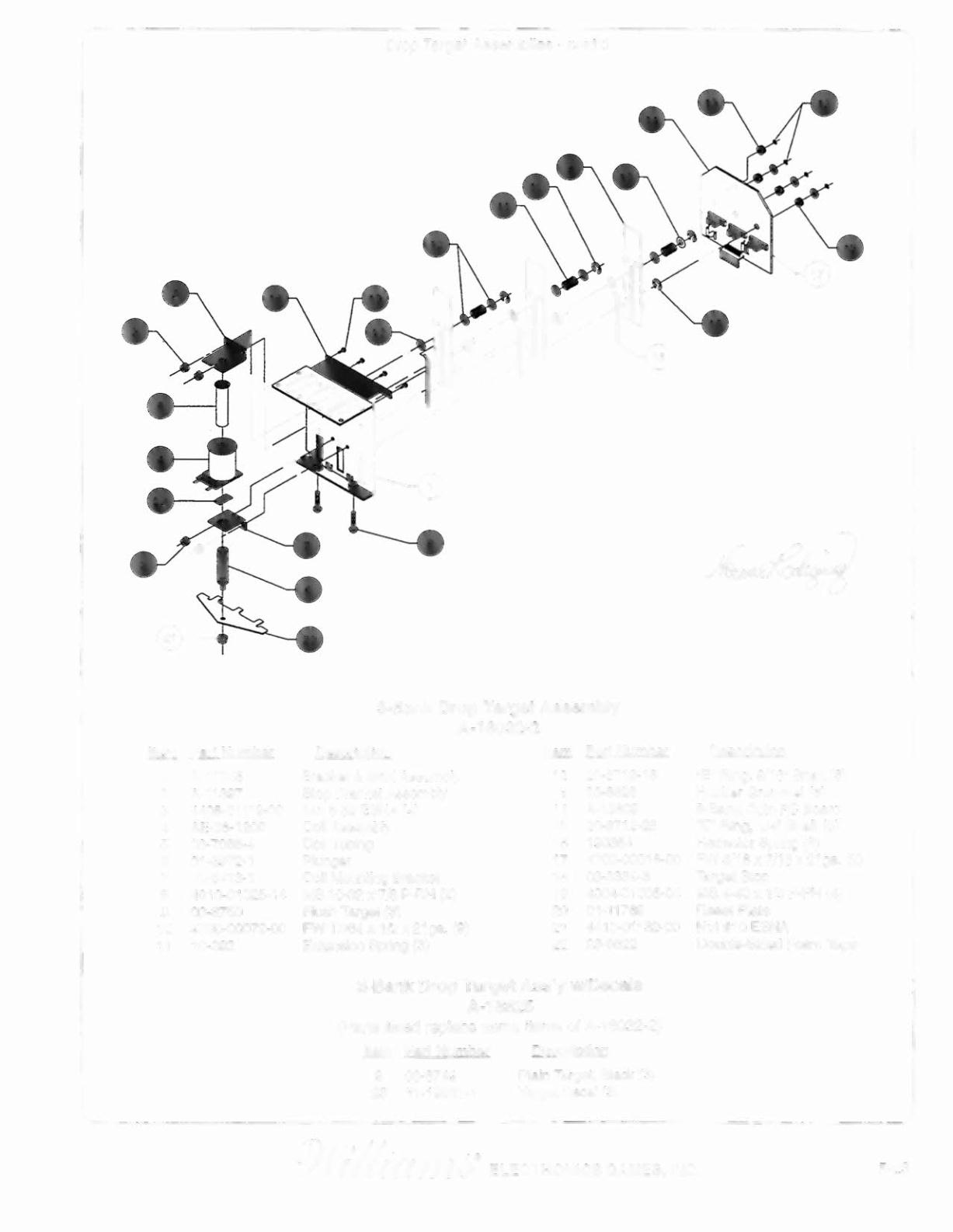

Drop Target Assemblies - cont'd
3-Bank Drop Target Assembly
A-16032-2
Item Part Number
pescription
Item Part Number
Description
1
A-17045
Bracket & Stud Assembly
12 20-8712-18
"E" Ring, 3/16" Shaft (3)
2 A-11397
Stop Bracket Assembly
13 23-6626
Rubber Grommet (3)
3 4408-01119-00 Nut 8-32 ESNA (4)
14 A-13609
3-Bank OPIO PC Board
4 AE-26-1200
Coil Assembly
15 20-8712-25
"E" Ring, 1/4" Shaft (6)
5
03-7066-4
Coil Tubing
16 190364
Retractor Spring (3)
6 01-3972-1
Plunger
17 4700-00016-00 FW 3/16 x 7/16 x 21ga. (2)
7 01-8413-1
Coil Mounting Bracket
18 03-8334-3
Target Stop
8 4010-01025-14 MS 10-32 x 7/8 P-RH (2)
19 4004-01005-04 MS 4-40 x 1/4 P-PH (4)
9 03-8750
Flush Target (3)
20 01-11769
Reset Plate
10 4700-00072-00 FW 17/64 x 1/2 x 21ga. (9)
21 4410-01132-00 Nut #10 ESNA
11 10-392
Extension Spring (3)
22 23-6622
Double-Sided Foam Tape
3-Bank Drop Target Ass'y w/Decals
A-18825
(Parts listed replace same items of A-16032-2)
Item Part Number
Description
9 03-8749
Plain Target, Black (3)
23 31-19831-'
Target Decal (3)
