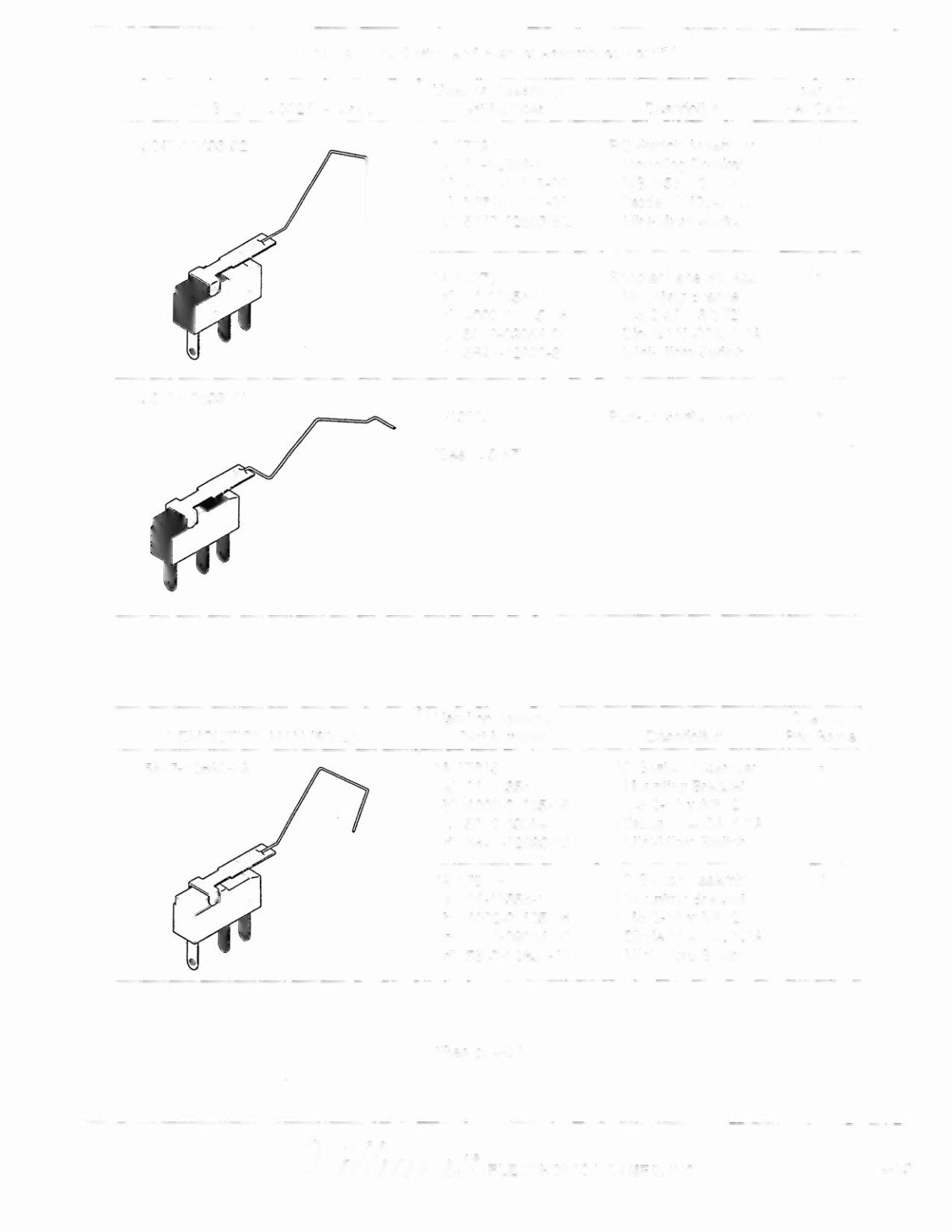

Rollover Wire Switch and Bracket Assemblies - cont'd
ROAD SHOW (50024) - cont'd
Used on Assembly
Part Number
Quantity
Description
Per Game
564 7-12693-32
"'A-17791
a) 01-12356-1
b)
4002-01105-06
c) 5070-09054-00
d) 5647-12693-32
RD Switch Assembly
1
Mounting Bracket
MS 2-56
x
3/8 (2)
Diode 1N4004, 1.0A
Mini-Micro Switch
"A-18973
a) 01-12356-1
b) 4002-01105-06
c) 5070-09054-00
d) 5647-12693-32
Shooter Lane Sw Ass'y
Mounting Bracket
MS 2-56
x
3/8 (2)
Diode 1N4004, 1.0A
Mini-Micro Switch
564 7-12693-61
A-19225
(See p. 5-67)
Pop-Up/Switch Ass'y
1
DEMOLITION MAN (50028)
Used on Assembly
Part Number
Quantity
Oescription
Per Game
5647-12693-19
'*A-17813
a) 01-12356
b) 4002-01105-06
c) 5070-09054-00
d) 5647-12693-19
RD Switch Assembly
6
Mounting Bracket
MS 2-56 x 3/8 (2)
Diode 1N4004, 1.0A
Mini-Micro Switch
*A-17813-1
a) 01-12356-1
b) 4002-01105-06
c) 5070-09054-00
d) 5647-12693-19
RD Switch Assembly
Mounting Bracket
MS 2-56
x
3/8 (2)
Diode 1N4004, 1.OA
Mini-Micro Switch
4
·Se e
p. 4-37
6)f'~®
