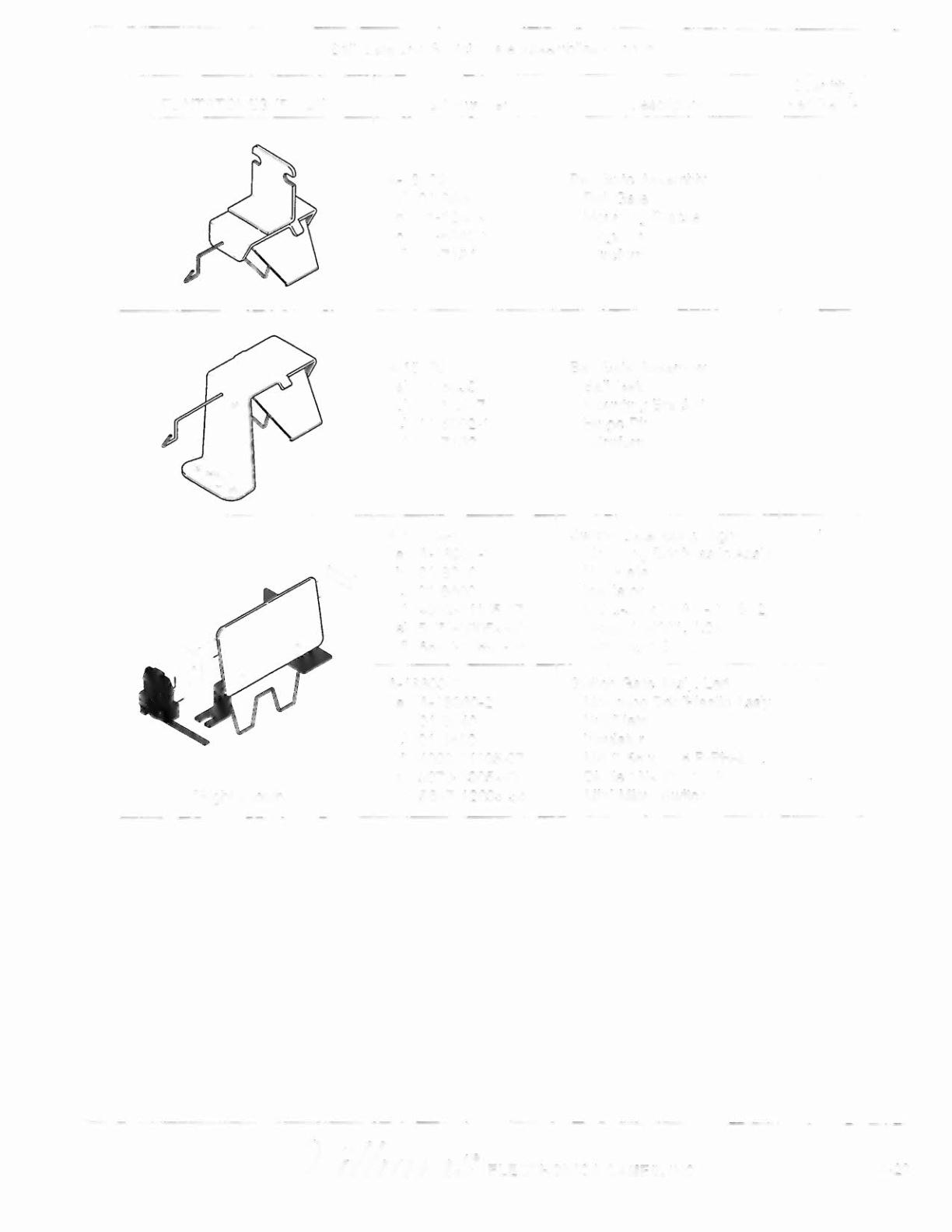

Page 223 - Williams GREEN Parts Catalog 16-9932

Ball Gate and Switch Gate Assembltes - cont'd
FLINTSTONES (50029) Part Number Description
Quantity
Per Game
A~18128
a) 01·6935
b) 01·12429
c) 12·6882·1
d) 12·7191
Ball Gate Assembly
Ball Gate
Mounting Bracket
Hinge Pin
Wireform
A·18129
a) 01·6935
b) 01·12347
c) 12·6882·1
d) 12·7192
Ball Gate Assembly
Ball Gate
Mounting Bracket
Hinge Pin
Wireform
1
(Right shown)
A·18809·1
a) A·18960·"1
b) 01·8240
c) 01·8600
d) 4002-01105-07
e) 5070·09054-00
f) 5647·12693·36
Switch Gate Ass'y, Right
Mounting BrkVPlastic Ass'y
Nut Plate
Insulator
MS 2·56 x 7/16 P-PH-S (2)
Diode 1N4001, "1.0A
Mini-Micro Switch
1
A·18809-2
a) A-18960-2
b) 01-8240
c) 01-8600
d) 4002-01105·07
e) 5070-09054-00
f) 5647-12693·36
Switch Gate Ass'y, Left
Mounting BrkVPlastic Ass'y
Nut Plate
Insulator
MS 2-56 x 7/16 P·PH-S (2)
Diode "1N400"1, 1.0A
Mini·Micro Switch
1
6)f'~® ELECTRONICS GAMES, INC. 4-29
