SWORDS OF FURY (559)

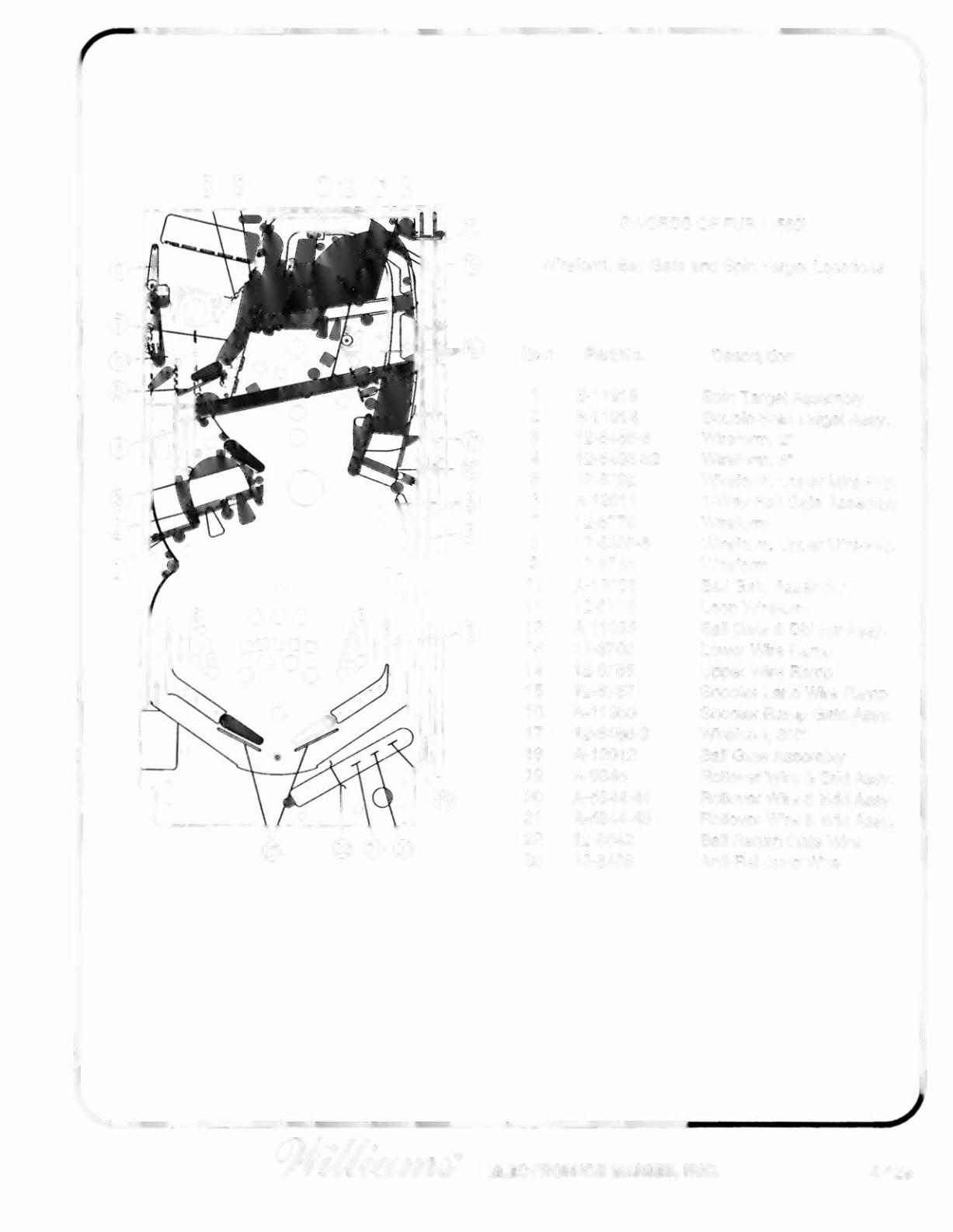

Wireform, Ball Gate and Spin Target Locations
Item Part No.
Description
1 8-11916
Spin Target Assembly
2 8-11914
Double Spin Target Assy.
3 12-6466-8
Wireform, 2"
4 12-6466-32
Wi reform, 8"
5 12-6792
Wireform. Upper Mini-Plfd.
6 A-12011
1-Way Ball Gate Assembly
7 12-6779
Wireform
8 12-6466-5
Wireform. Upper Mini-Plfd.
9 12-6783
Wireform
10 A-12033
Ball Gate Assembly
11
12-6778
Loop Wireform
12 A-11935
Ball Gate
&
Obi Sw Assy.
13 12-6766
Lower Wire Ramp
14 12-6765
Upper Wire Ramp
15 12-6767
Shooter Lane Wire Ramp
16 A-11950
Shooter Ramp Gate Assy.
17 12-6466-3
Wireform, 3/4"
18 A-12012
Ball Gate Assembly
19 A-8645
Rollover Wire
&
Brkt Assy.
20 A-5844-44
Rollover Wire
&
Brkt Assy.
21 A-5844-45
Rollover Wire
&
Brkt Assy.
22 12-6542
Ball Return Gate Wire
23 12-6468
Anti-Rebound Wire
ELECTRONICS GAMES. INC.
4-12e
