Page 181 - Williams BLUE Parts Catalog 16-9064-B

SPACE STATION (552)

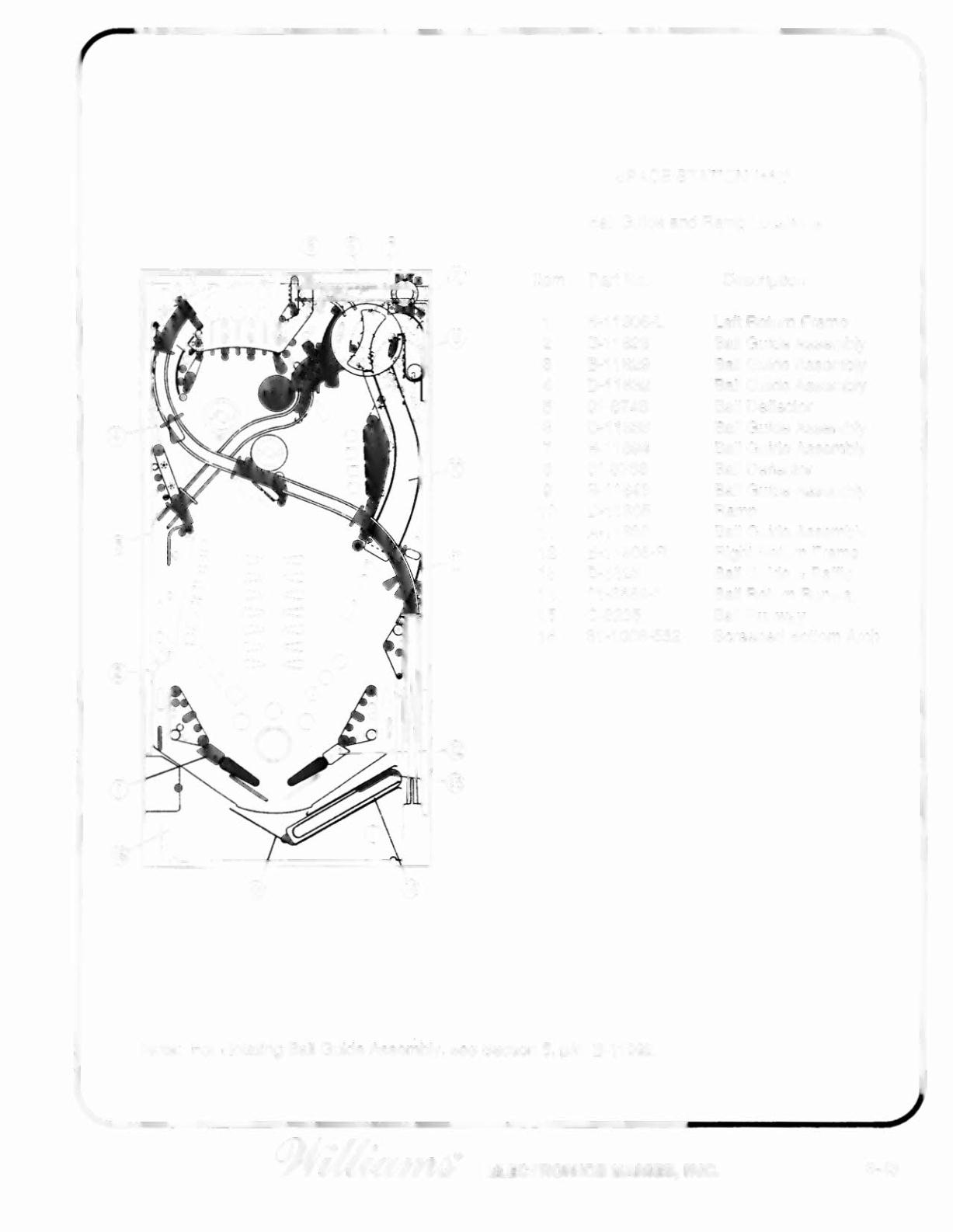

Ball Guide and Ramp Locations
Item Part No. Description ,_,
1 B-11906-L Left Return Frame
2 B-11828 Ball Guide Assembly
3 B-11829 Ball Guide Assembly
4 0-11832 Ball Guide Assembly
5 01-8743 Ball Deflector
6 C-11833 Ball Guide Assembly
7 B-11894 Ball Guide Assembly
8 01-8738 Ball Deflector
9 B-11843 8all Guide Assembly
10 0-11805 Ramp
11 A-11830 Ball Guide Assembly
[.::::> c::J 12 B-11906-R Right Return Frame
[.::::> c.:: J 13 B-8623 Ball Guide & Baffle
[.::::> c.:::J 14 01-3569-1 Ball Return Runway
[.::::> c.:::J 15 C-8235 8all Runway
[.::::> c::::J 16 31-1 008-552 Screened Bottom Arch
[.::::> c::::J
0
0
Note: For Rotating Ball Guide Assembly, $ee Section 5, pIn 8-11992 .
ELECTRONICS GAMES. INC. 3-43
