Page 198 - BallyMidway YELLOW Parts Catalog 16-9147-B

(2015)

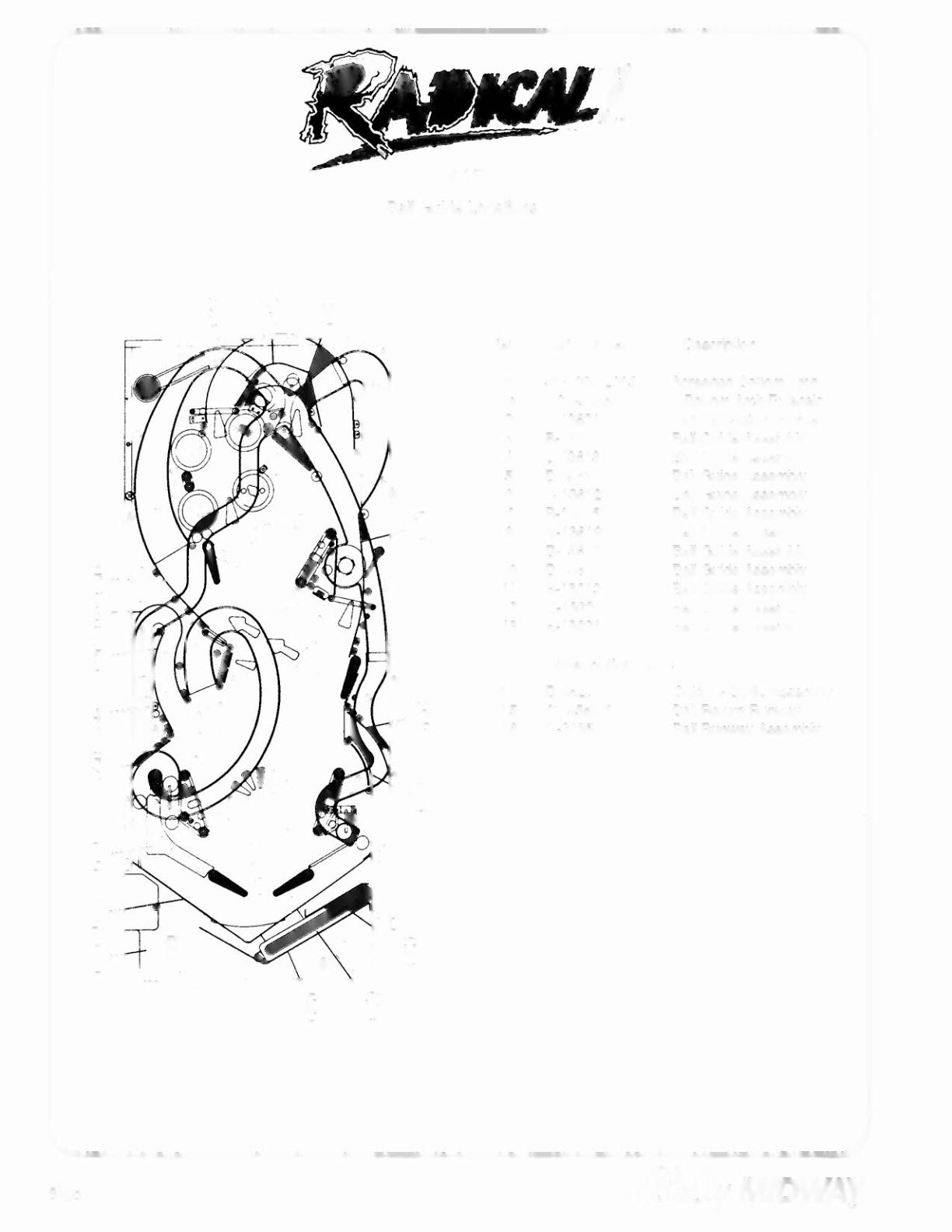

Ball Guide Locations
Item Part Number Description
1 31-1008-2015 Screened Bottom Arch
a) 01-9366-2 Bottom Arch Extensio
2 B-13631 Left Ball Return Frame
3 B-13611 Ball Guide Assembly
4 8-13613 Ball Guide Assembly
5 8-13614 Ball Guide Assembly
6 C-13612 Ball Guide Assembly
7 B-13615 Ball Guide Assembly
8 C-13616 Ball Guide Assembly
9 8-13617 Ball Guide Assembly
10 B-13618 Ball Guide Assembly
11 B-13619 Ball Guide Assembly
12 C-136.20 Ball Guide Assembly
13 B-13621 Ball Guide Assembly
Under Bottom Arch:
14 B-8623 Guide & Baffle Assembly
15 01-3569-1 Ball Return Runway
16 C-8235 Ball Runway Assembly
