#1222 EMBRYON
o
INDICATES SWITCH ASSEMBLY
IDENTIFICATION NUMBERS
NOTE:
Cabinet:
07, 16,03
Door:
06 ,09
10, 11, 16
o
INDICATES SOLENOID
IDENTIFICATION NUMBERS
NOTE:
Door:
13
Backbox:
14
Cabinet:
07
L.
IND leA TES ASSEMBLY
IDENTIFICATION NUMBERS
o

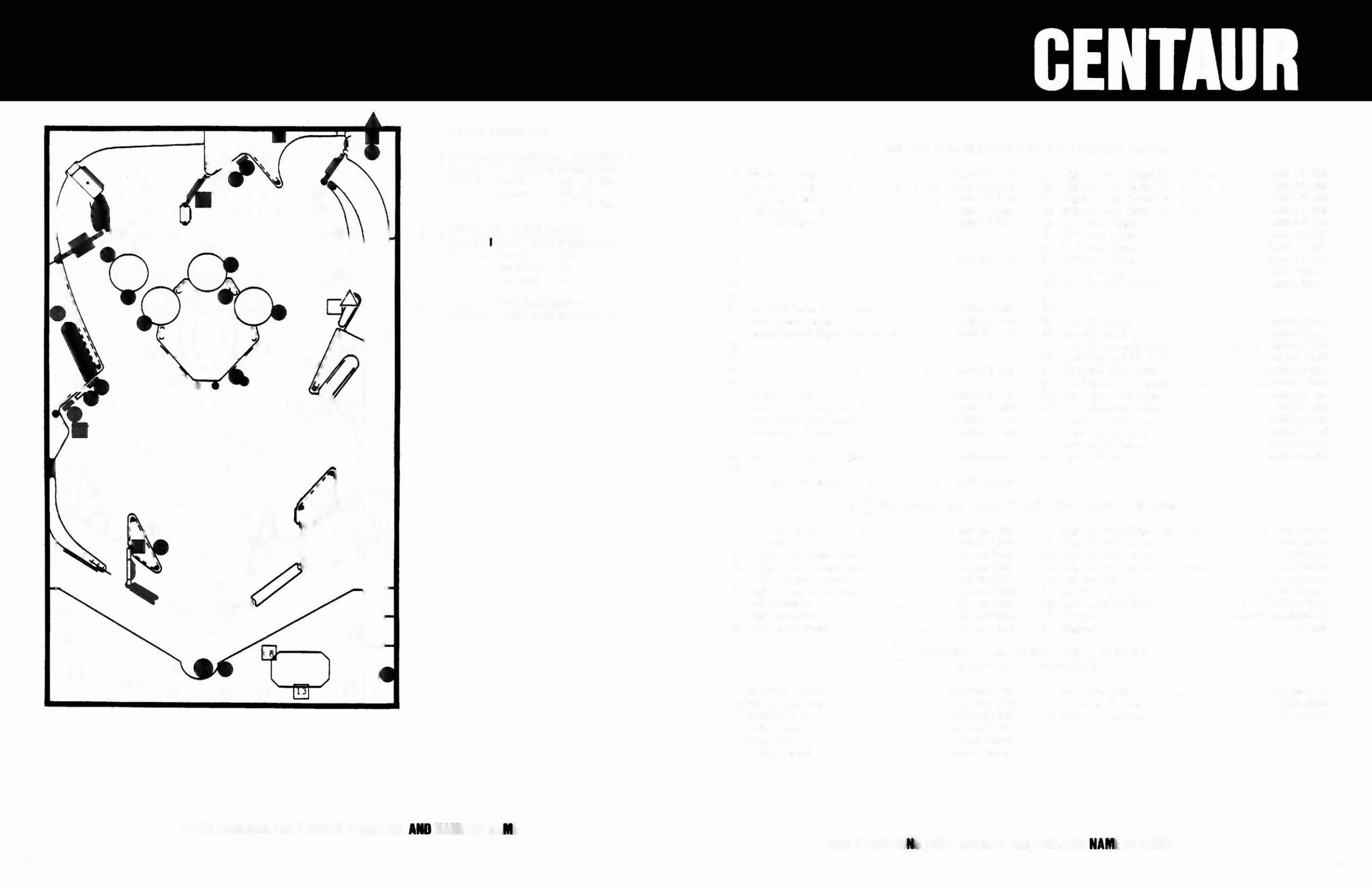

SWITCH ASSEMBLY IDENTIFICATION NUMBERS
1. 4th Ball Trough
ASE-2744 -20
2. 5th Ball Trough
ASE-2744-22
3. Top Right Lane
. . . . . . . . . . . . . .. ASW-Al-155
4. Top Midd le Lane
ASW-Al-155
5. Top Left Lane
ASW-Al -155
6.
7.
8. Outhol e
9.
10.
11.
12. Top Left Lane, R.O. Button
ASW-Al-206
Orbs 2 Back Targets
ASW-A10-48
Target Behind Right Thumpe r Bumpe r
ASW-A10-48
ASW-Al-143
13.
14.
15. Tilt
16.
ASW-Al-145
17. 1st Ball Trough
ASE·2744-23
18. Left Side A.O. Button (2)
ASW-A 1-206
19. Orbs Right Lane Target
ASW-A10-48
20. Inl ine Back Target
ASW-A 10-48
21.
22. Reset 1-4 Targe ts, Target
ASW-A10-48
23.
24. Top Spo t 1·4 Target
ASW-Al0-48
25. Right 4 Drop Target "0" (Bottom)
26. Right 4 Drop Target "C"
.
27. Right 4 Drop Target "B"
.
28. Right 4 Drop Target "A" (Top)
.
29. "S" Drop Target
.
30. "8" Drop Target
.
31. "R" Drop Target
.
32. " 0"Drop Target
.
33. End of Trough
.
34. 10 Point Rebound (5)
.
35.
36.
37. Right Slingsho t
.
38. Left Slingshot
.
39. Right Thumper Bumper
.
40. Left Thump er Bumper
.
41. 1st Inline Drop Target
.
42. 2nd Inl ine Drop Target
.
43. 3rd lnl ine Drop Target
.
44. 4th Inl ine Drop Target
.
45. Right Outlane
.
46. Right Return Lane
.
47. Left Return Lane
.
48. Left Outlane
.
D
SOLENOID AND COIL IDENTifiCATION NUMBERS
1. Outhole Kicker
AN-26·1200
2. Knocker
AH·26-1200
3. Inline Drop Targe t Reset
NO-26- 1900
4. 4 Right Drop Targe t Rese t
NO·26·1900
5. Left Thumpe r Bumper
AN-26-1200
6. Right Thumper Bumper
AN-26 -1200
7. Left Slingshot
AO-26-1200
8. Right Slingshot
AO-26-1200
9. Orbs Targe t Reset .............. ..•.
NO-26-1900
ASW-Al-168
ASW-Al-168
ASW-A1-168
ASW-Al-168
ASW-Al-168
ASW-Al-168
ASW-Al-168
ASW·Al·168
ASE·2744·21
ASW·Al0·47
ASW·Al0·47
ASW·Al0·47
ASW·Al·195
ASW·Al·195
ASW·Al·168
ASW·Al·168
ASW·Al·168
ASW·Al· 168
ASW-Al· 155
ASW-Al·155
ASW-Al·155
ASW-Al·155
10. Righ t 4 Drop Target "A" (Top) . . . . . . . .. CJ·31·3000
11. Right 4 Drop Target "8" . . . . . . . . . . . .. CJ-31-2000
12. Right 4 Drop Target "C" . . . . . . . . . . . .. CJ-31-2000
13. Right 4 Drop Target
" 0"
(Bottom) . . . . .. CJ-31-2000
14. Ball Release
AO-28-1500
15. Ball Kick to Playfield
AO·25·950
16. Coin Lockout Door
FO-26-7000
17. FI ippers
AO·25-500 /34·4500
18. Magnet . . . . . . . . . . . . . . . . . . . . . . . . .. E·184·284
6
ASSEMBLY IDENTIFICATION NUMBERS
PANEL BOTTOM PARTS
1. Multi ·Ball Kicker
ASE·1587 -128
2. Ball ReleaseGate
ASE·1587·129
3. Right Flipper
ASE·1587 -130
4. Left Flipper
ASE-1587 ·131
5. Sling Shots (2)
ASE·2593·6
6. 4 Drop Targe t
ASE·2795·90
WHEN ORDERINGPART, SPECifY PART 10. _lAME OF GAME
40
7. 4·ln·Line Target
ASE-2993- 19
8. Thumpe r Bumpers (2) . . . . . . . . . . . . . . .. ASE·2999
9. 4 Drop Target/Memor y
ASE·3039-5
WHEN ORDERING PART. SPECIFY PART NO. AND NAME OF GAME
53
