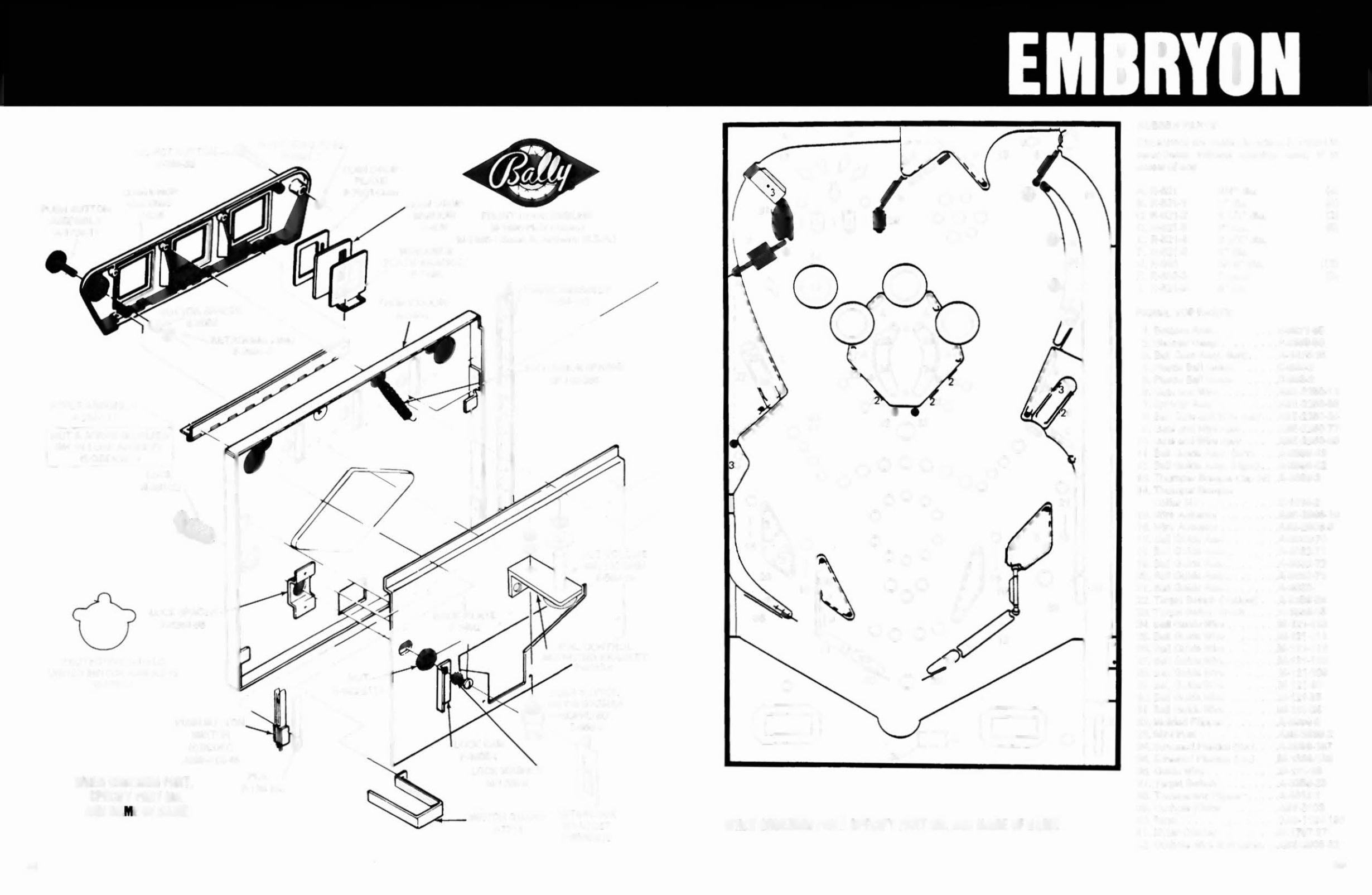

PUSHBUTTON
ASSEMBLY
A·1729·17
I
00
000
0
0
FRONT DOOR
HINGE ASSEMBLY /
A·254·112 /'
./
EXTENSION SPRING
SP 100·265
PROTECTIVE SHIELD
UNDER SWITCH ASW·A2·73
M·'787·'
NUT & SCREW SUPPLIED
WHEN LOCK AND KEY
IS ORDERED
40
o
41
o
o
o
LOCK
M'2 Bl '22 ~
~
o
I
16
O
LOCK SPACER
P·6264·86
POT VOLUME
/5W.l000HM
E·599·19
j
WHEN ORDERING PART.
SPECIFY PART NO.
AND NAME OF GAME
PLATE
P·126·155
P·4005·1
LOCK WASHER
M·1700·8
INTERLOCK
BRACKET
P·6665·610
~..___SWITCH GUARD
P·7716
WHEN ORDERING PART.
SPECIFY PART NO. AND NAME OF GAME
54
RUBBER PARTS
Dimensions are inside diameters. Numbers in
parentheses indicate quantity used, if in
excess of one.
A. R·521
3/4" dia,
(4)
B. R-521·1
1" dia.
(4)
C. R·521·2'
1-1/2" dia.
(2)
D.
R-521-3
2"
dia,
(5)
E.
R-521-4
2-1/2" dia.
F. R-521-5
3" dia.
G. R-243
5/16" dia,
(13)
H. R-533·3
Flipper
(3)
I.
R-521·9
5" dia.
•
PANEL TOP PARTS
1.
Bottom Arch
P-5871-85
2. Shooter Gauge
P-6359-50
3. Ball Gate Assy. (left)
A-1475-15
4. Plastic Ball Guide
C-694-2
5.
Plastic Ball Guide
C-693-2
6.
Gate and Wire
ASE-2250-11
7. Spinner Assy
ASE-2250·86
8.
Ball Gate and Wire Assy ASE-2250-24
9. Gate and Wire Assy
ASE-2250-77
10. Gate and Wire Assy
ASE-2250-89
11. Ball Guide Assy. (left)
A-2898-43
12. Ball Guide Assy. (right)
A-2898·42
1'3. Thumper Bumper Cap (4) .A-4009-3
14. Thumper Bumper
Collar (4)
C-l018-2
15. Wire Actuator
ASE·2806·10
16. Wire Actuator
ASE-2806·9
17. Ball Guide Assy.. . . . . . .. A-3032-70
18.
Ball Guide Assy
A-3032·71
19. Ball Guide Assy
A-3032-72
20. Ball Guide Assy
A-3032-73
21. Ball Guide Assy
A-3032·
22. Target Switch (Yellow)
A-3359-20
23. Target Switch (Red)
A-3359-15
241.
Ball Guide Wire
M-1121-113
25. Ball Guide Wire
M-121-111
26. Ball Guide Wire
M-121-112
27. Ball Guide Wire
M-121-110
28.
Ball Guide Wire
M-121-109
29.
Ball Guide Wire
M-121-90
30. Ball Guide Wire
M-121-53
31. Ball Guide Wire
M-121-24
32. Molded Flipper
A-3994·S
33. Mini Post
ASE-2836-2
34. Screened Plastics (Set).
A-2890-1S7
35. Screened Plastics (Set)
M-1330·186
36. Guide Wire
M-121-18
37. Target Switch
A-3359-23
38. Transparent Flipper
A-4013-1
39. Outhole Kicker
ASE-3103
40. Panel
CAS-1128·190
41. Mylar Overlay
M·1787·37
42. Outhole Wire & Bracket
ASE·2806-32
39
