Page 73 - Bally 1971 Parts Catalog

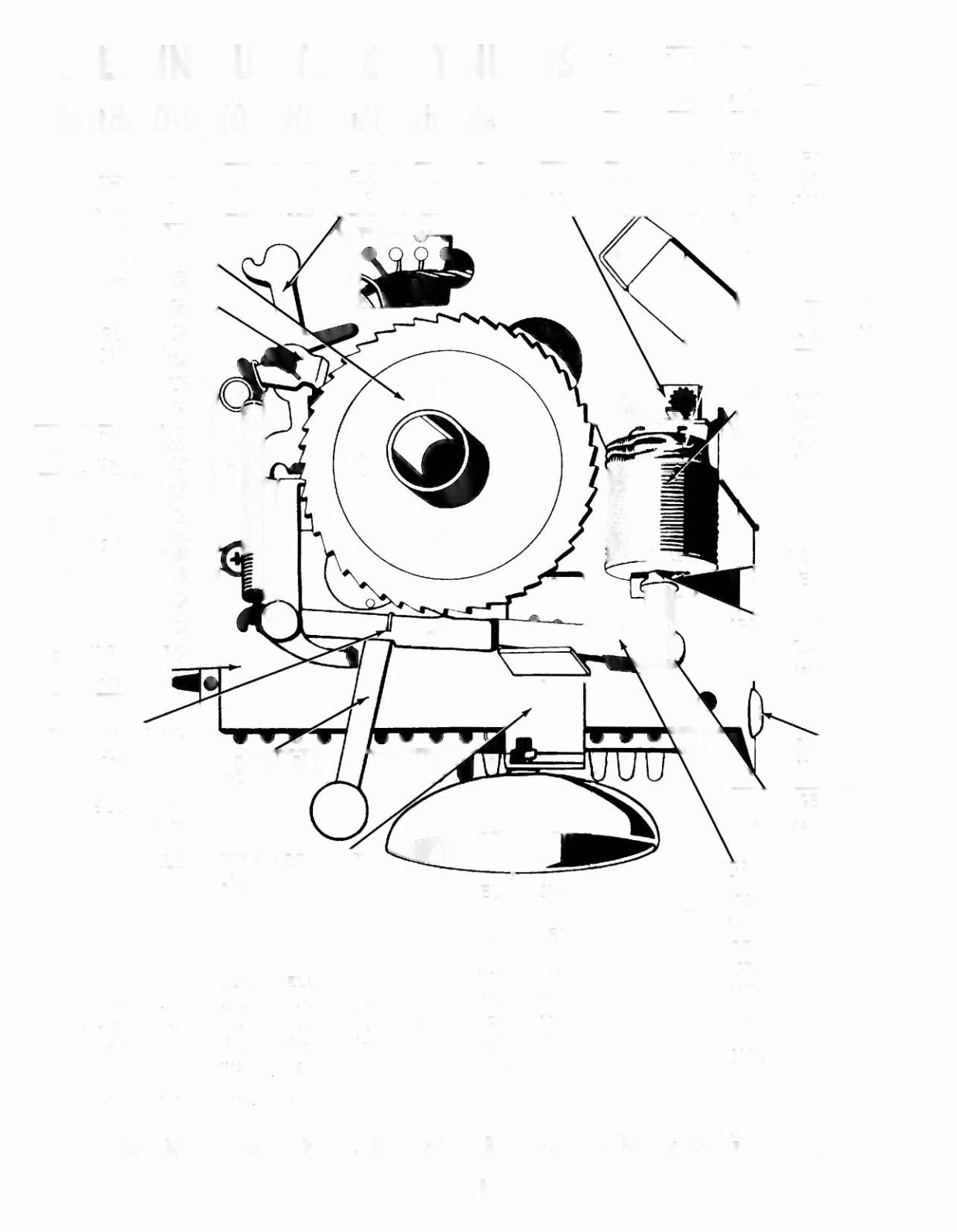

STEPPING UNITS, CONTINUOUS
Match (0-9) (00-90) Units with Bell
WASHER FOR
RESET PAWL CORE PLUG ASSY. WIPER ASSY.
~....I,..;;;.J"""":::':L...1.=.:~::--P_-3_3_82 A_-6_1_3-+3_3_~~ P-801-107
CONTACT-PLATE WIPER ASSY
(WIRED)
See page 119
RATCHET
STOP PLATE
P-3386
SPRING
See page 119
BASE-PLATE
See page 119
TORSION SPRING
SP-401
BELL STRIKER ASSY.
A-2858
BELL MOUNTING BRACKET
P.6253 -1
See page 119
ADJUSTMENTS
BELL ASSY.
A-2859
SECURED BY
NUT
N-1032-1110
WASHER
PW-10-10
WASHER
P-801-15
See page 119
SECURED BY
PIVOT PIN
S-737 -48
AND
ELASTIC
STOP NUT
M-319-3
TO SILENCE BELL
Loosen Bell by turning in counter-clockwise di rcc t ion ,
Lower Bell [0 bottom of slot in m 0 u n tin g-bracker.
Tighten Bell by turning in clockwise direction.
See adjustment instructions, page 113.
WHEN ORDERING PART, SPECIFY PART NO. AND NAME OF GAME
118
