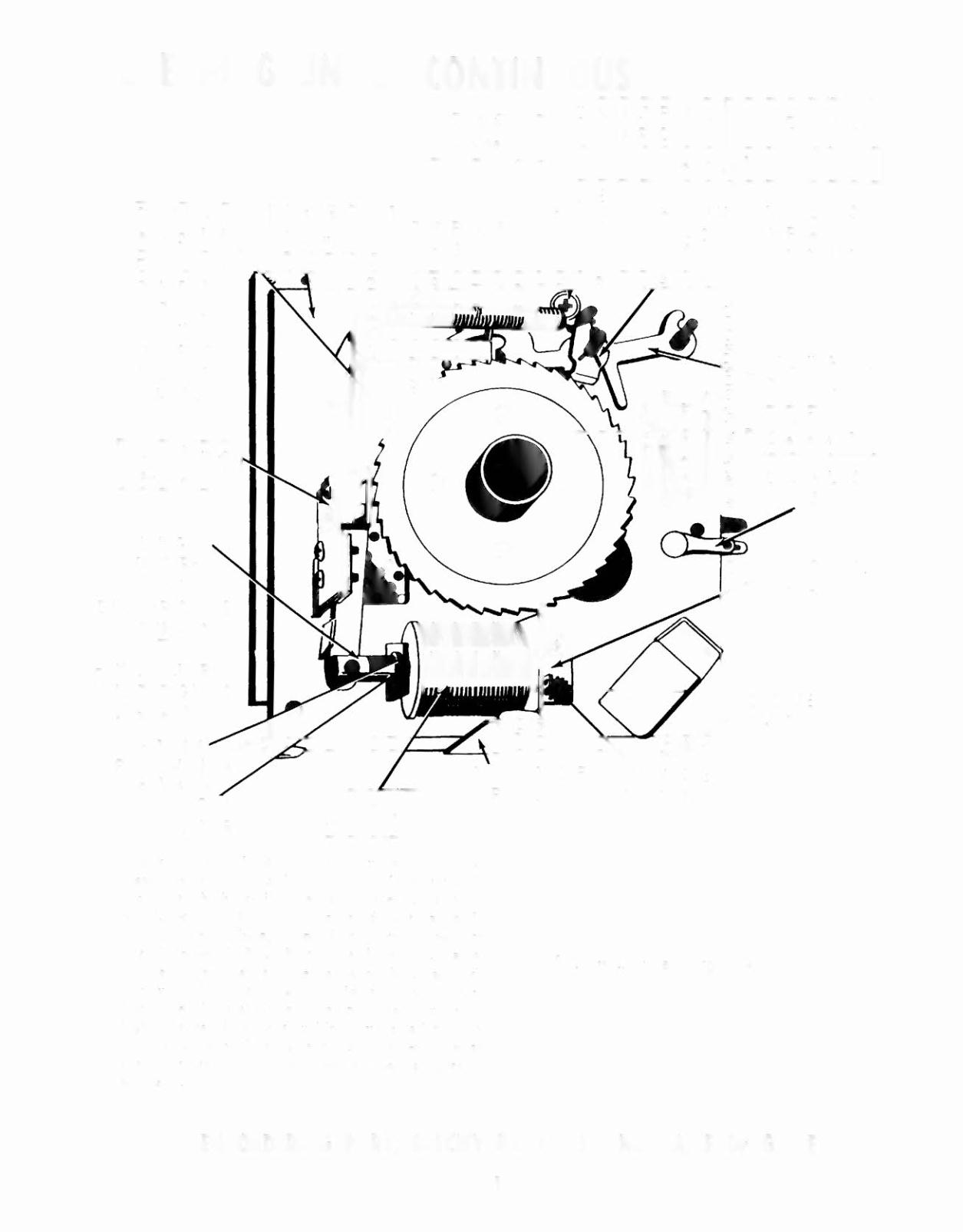

STEPPING UNITS, CONTINUOUS~------------_,--------------~
PRING
See page 114
CONT ACT -PLA TE
(WIRED) WIPER ASSY.
STEP-UP ARM
See page 114
SECURED BY
PIVOT PIN
S-737 -48
AND
ELASTIC
STOP NUT
M-319-3
See page 114
BASE·PLATE
SCREW
MS-832-S-S10 WASHER FOR
WIPER ASSY.
P-801-107
If Switch used,
See page 114
o
~o
RATCHET
See page 114
PLUNGER
VAMPIRE
AND
EARLIER GAMES *
5-496-100
o
FIRECRACKER
AND LATER GAMES *
See page 114
P-l1S8-6
SPRING-WASHER
(Not Visible)
C-342
GUIDE RING
COIL
See page 114
SUPPORT BRACKET
P·4640
Check unit manually by operating Plunger. After Index
Pawl drops into position at base of rarchet-coorh
(point at which straight and angular edges of tooth
meet), Step-up Arm should over-ride approximately
1/64 in. before being sropped by Seep-up Arm Stop
("ear" forme~ in Base Plate). Bend Stop one way or
another [0 reduce or increase over-ride to approxi-
mately 1/64 in. Index Pawl should then properly drop
into base of tooth, without binding, when Plunger is
lightly operated (without pushing Plunger all the way
in). Adjust Stop-Plate againse top of Step-up Arm so
that unit will step when Step-up Arm is operated
manually.
*See games listed, page 114
WHEN ORDERING PART, SPECIFY PART NO. AND NAME OF GAME
113
