Page 138 - Bally 1971 Parts Catalog

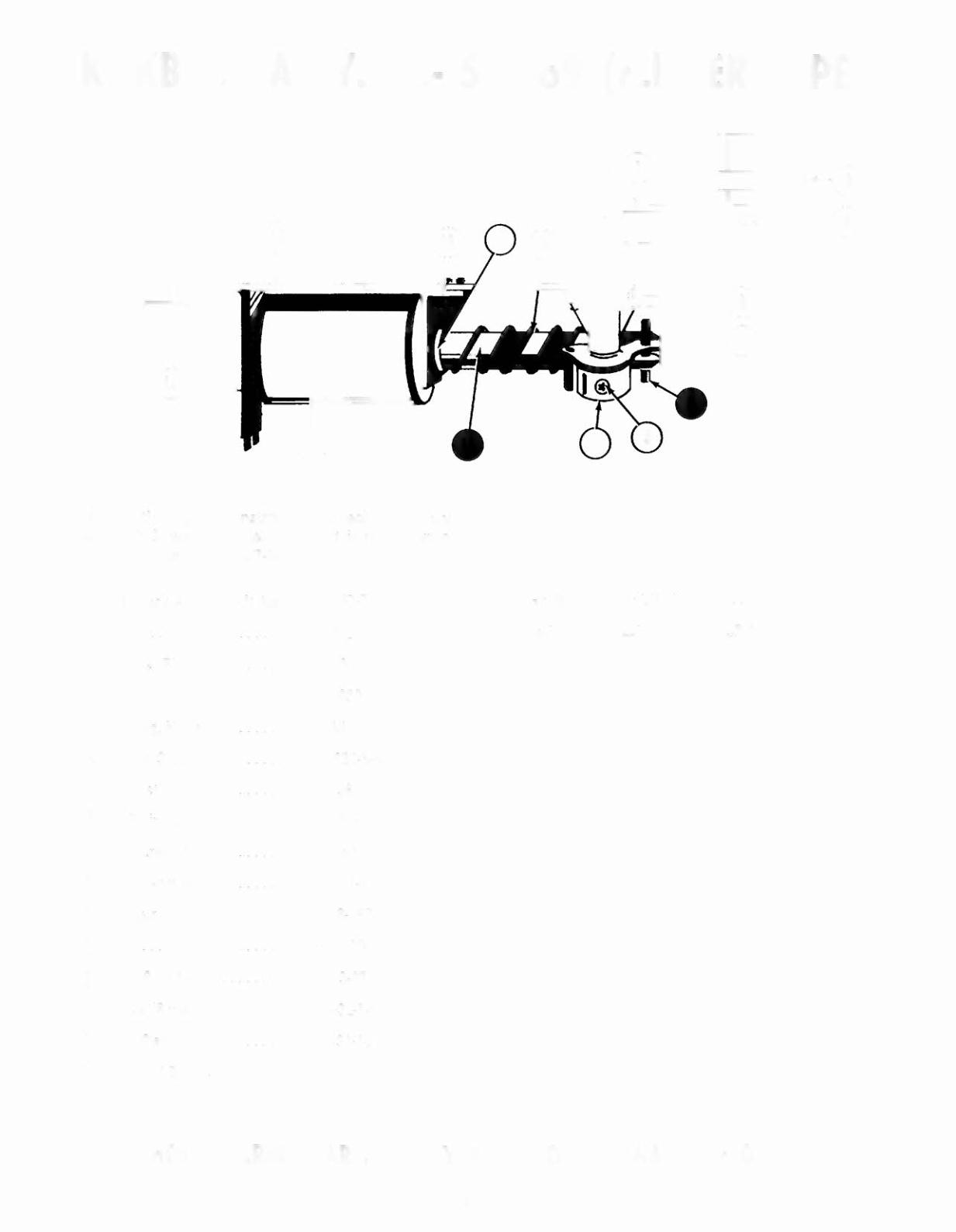

KICKBACK ASSY. AS-1587-69 (FLIPPER TYPE)
Item 1 through 4 constitute Kickback Arm Assy.
AS-2381-3, which is used with but is not a part of
Kickback Assy. AS-1587-69.
CD Kickback Arm & Shaft Assy. A-2747-7
W Anvil - . . . . . . . .. . . . . . . .. S·1952
(]) Rubber Ring. . . . . . . . . . .. R-392
® Screw. . . . . . . . . . . . . . . . .. LS·l032-14-511
® Bearing, Nylon. . . . . . . . . .. C-649
® Screw (3 used) . . . . . . . . . .. MS·632-5-510
(j) Bracket ..... . . . . . . . . . .. P-6Z56
® Roll Pin. . . . . . . . . . . . . . .. P·1637-1
® Set Screw (2 used) . . . . . . .. M-1369
@ Lever Arm Assy. A-1889-8
@ Plunger S-496-167
@ Coil .. . . . . . . . . . . . . . . . .. A-26-1200
® Core Plug Assy. . . . . .. . . .. A-613·67
@ Screw (6 used) . . . . . . . . . .. LS-832-5-510
@ BasePlate P-3691- 18
@ Solenoid Bracket . . . . . . . .. P-l08-53
@ Guide Ring (not visible). . .. C-342
@ Spring, Compression SP-240
WHEN ORDERING PART, SPECIFY PART NO. AND NAME OF GAME
