Page 120 - Bally 1969 Parts Catalog

FRONT CABINET
Front Door, Mounting Board, Playfield
(CONTINUED FROM PAGE 126)
front Cabinet, Assembled
Panel Guide Lock* P-6646-2
See illustration below

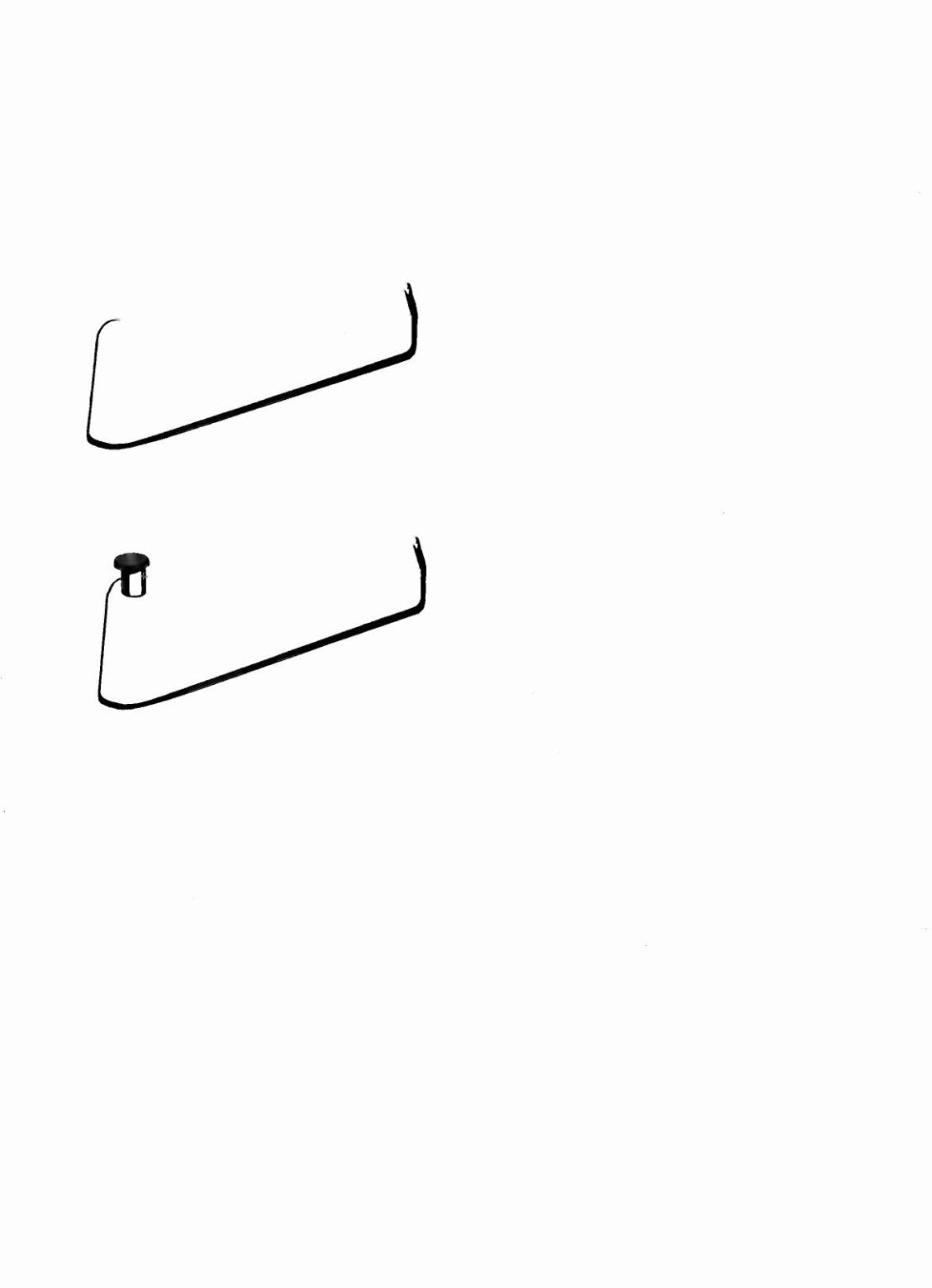

Panel Guide Lock Assy.*,
Left ••.••.•...•......... A-3017-1
R i gh t • • • • • • • • • • • • • • • • • • • A- 30 17
See illustration below
Panel Support Brocket .•.•.••••. P-1968-8
Plug Bumper* •••.•••.•.••••• R-231-11
Plumb Bob: See Ti It
Sounder Assy. * See page 134
Support Bar Channel*
(Mounting Boord) ••••.....•. P-6720
TILT, PARTS RELATED TO
Contact Bracket* •••........ P-275
Hanger* •••...•••.•..•..• P-274
Plumb Bob* .•.......•..... E-138-3
(Includes Thumb Screw)
Wire* •.•.•..•.••••••..•• M-175
Boll Tilt Assy.* AS-1588-1
Retainer P-3705-1
Switch SW-000-11
Switch Soldering Lug P-268
Trim, Front Door ...••.....•..
See Front Door Trim
Front Cabinet, Unassembled
Adjuster, Leg: See Leg Adjuster
Ball* .......•...•......... M-168-26
Bolt, Leg: See Leg Bolt
Coin Box*
(Less Cover, Dividers) SEE NOTE A
Coin Box Cover* .••..... ON
Coin Box Divider L-_P_A_G_E_1_28___J
Leg. • . . . . • • • . . . . • . . • . • • . • P-4052-5
Leg Adjuster* ••............. M-163-4
Leg Bolt* .. . ..•.........•. M-106-1
front Door
COIN HANDLING, PARTS RELATED TO
Coin Entry Assy.
See International Coin Mechanism Data,
commencing page 87
Coin Entry Insert
See International Coin Mechanism Data,
commencing page 87
COIH ENTRY INSERT ILLUMINATION
Lamp ..•...••...•.•... E-125-22
Lamp Shield ..•..•...... C-615-1
Lamp Socket •...•....... E-120-138
Lamp Socket Plate .•.•.•.• P-7079
Coin Return Housing Assy. * ..•• A-3052
Coin Slide Assy.
Segment with "ear" to insert
in opposite segment •••...• A-3051-1
Segment with slot to receive "ear"
in opposite segment A-3051-2
Bei fur deutsche 5O-Pfennigstucke eingerichteten
Automaten ist Munze A-3051-3 anstatt A-3051-1
zu verwenden.
(CONTINUED ON PAGE 128)
WHEN ORDERING PART, SPECIFY PART NO. AND NAME OF GAME
121
