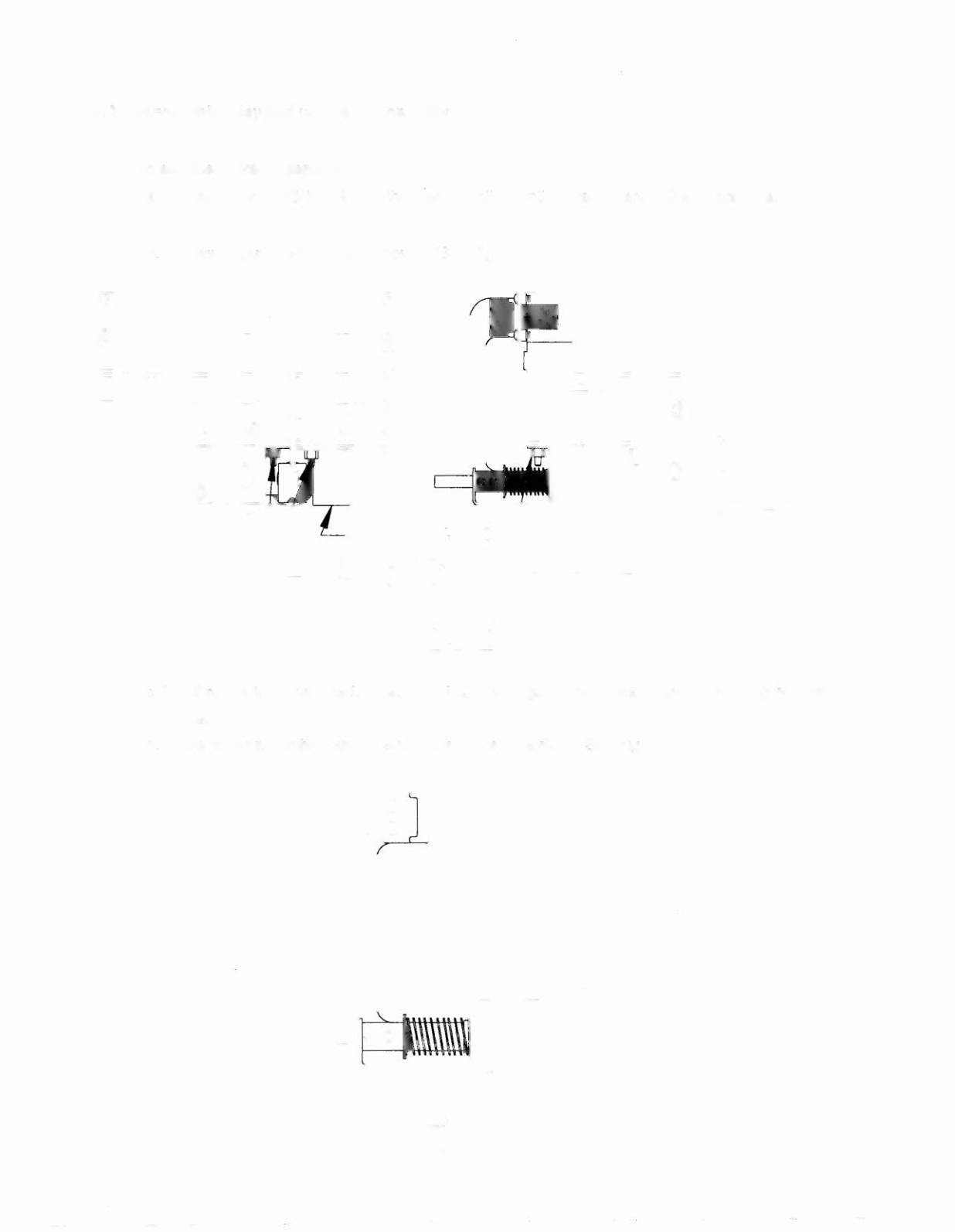

B.
To service mini-playfield unique mechanisms
1. To service kicker assembly
a. Remove four (4) #8 ESNA nuts that secure coil mounting bracket and coil stop brackets.
b. Coil wire guard may then be removed. (See Fig. 3)
COIL WIRE GUARD
4 ESNA NUTS
'----
(2 PER SIDE)
Fig. 3
c. If coil needs to be replaced, de-solder wires from lugs. If coil is okay then let coil hang by wire
leads.
d. Entire kicker assembly can be removed from mini-playfield. (See Fig. 4)
Fig. 4
1-57
