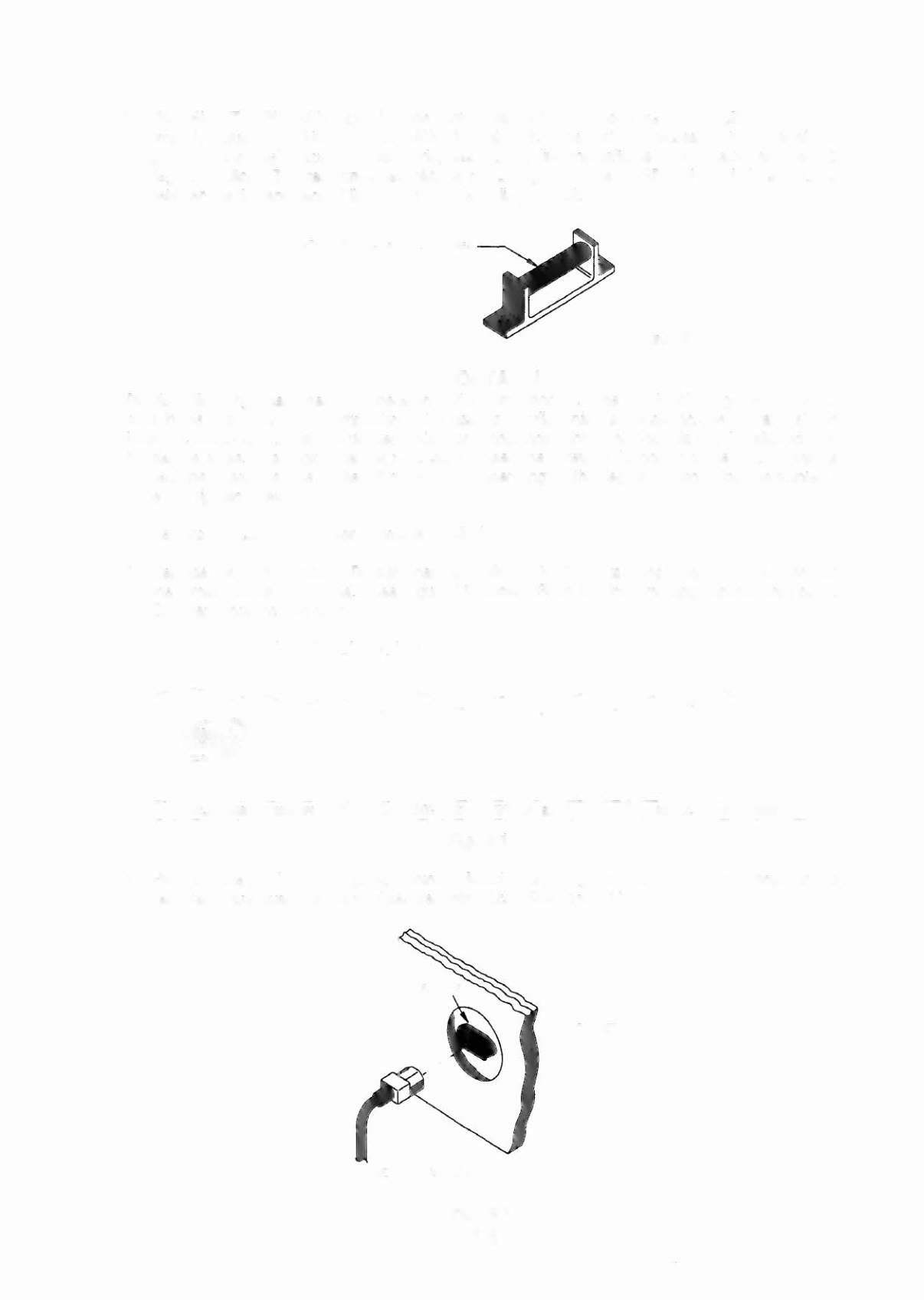

15. The TRU-PITCH™ level is located on the right shooter rail. This allows the playfield pitch angle to be
properly adjusted WITHOUT REMOVING THE GLASS.
The first line (closest to the front of the
game) on the level is approximately 6 degrees.
Every line thereafter is approximately another
1/2
degree of pitch. The recommended pitch is
6-1/2
degrees.
The NOSE of the bubble should be
between the first and second line on the level (see diagram below).
TRU-PITCHTI.t level 6-1/2 degrees.
Figure 10
IMPORTANT!
Playfield pitch angle can affect the operation
of
the plumb bob tilt. The plumb bob weight is among the
parts in the cash box. After completion of the desired playfield pitch angle setting, the operator should
install the weight and adjust this tilt mechanism for proper operation. The unit is factory installed for
a
6-
112degree angle. If
an
adjustment is necessary, loosen the screw at the bottom of the unit. Move the
pointer, one grove
at a
time to the left or the right, depending on the degree desired. Hold the pointer in
place and tighten screw.
16. Be sure the required number of balls is installed.
17. Replace the playfield glass. Be sure that the PINBALL 2000 logo is in the lower left comer and that
the 'smiley' faces are visible.
See Figure 11 below.
Snap the front molding securely into place.
Close and lock the coin door.
PLAYFIELD GLASS
Figure 11
18. Plug the line cord into the game cabinet.
Match the prongs on the plug with the holes in the
receptacle, and push the line cord securely into place. See Figure 12.
LINE CORD 8£ PLUG
Figure 12
1-6
