8.

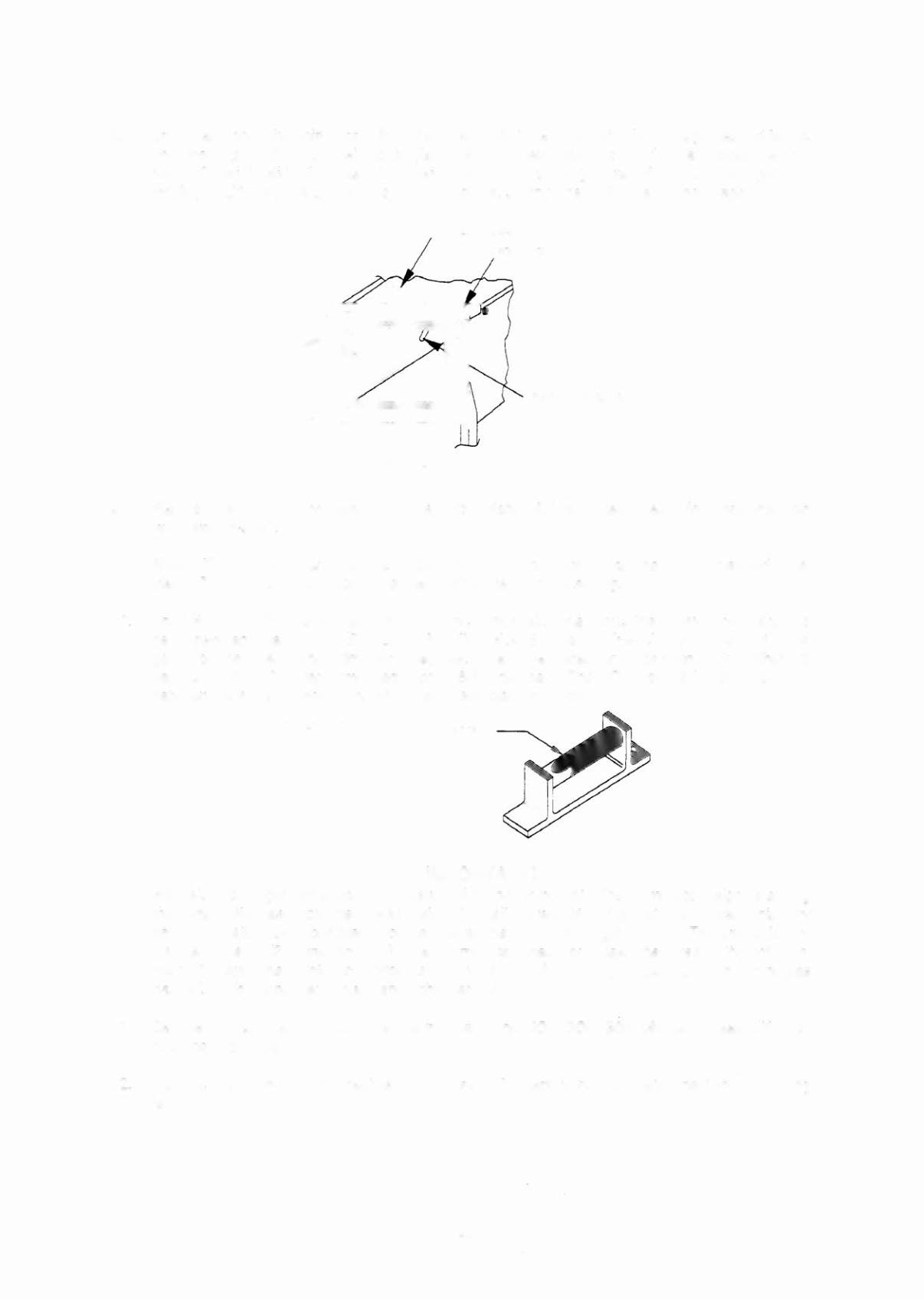

Unlock and open the coin door. Move the lever guide toward the left side of the game, and lift the
front molding off of the playfield cover glass. Slide the lever guide to the right, and close the coin
door. Carefully slide the glass downward, until it clears the grooves of the left and right side
moldings. Lift the glass up and away from the game, storing it carefully to avoid breakage.
PLAYFIELD GLASS
FRONT MOLDING
LEVER GUIDE ASSEMBLY
ON/OFF SWITCH
9.
Place a level or an inclinometer on the playfield surface. Adjust the leg levelers for proper playfield
level (side-to-side).
Note: This measurement must be made ON the playfield, not the cabinet or the playfield cover
glass. Tighten the nut on each leg leveler shaft to maintain this setting.
10. The TRU-PITCH™ level is located on the right shooter rail. This allows the playfield pitch angle to
be properly adjusted WITHOUT REMOVING THE GLASS. The first line (closest to the front of the
game) on the level is approximately 6 degrees. Every line thereafter is approximately another
1/2
degree of pitch. The recommended pitch is
6-1/2
degrees. The NOSE of the bubble should be
between the first and second line on the level (see diagram below).
TRU-PITCH™ level 6-1/2 degrees.
IMPORTANT!
Playfield pitch angle can affect the operation of the plumb bob tilt. The plumb bob weight is among
the parts in the cash box; the operator should install the weight and adjust this tilt mechanism for
proper operation, after completion of the desired playfield pitch angle setting. The unit is factory
installed for a 6-112 degree angle. If an adjustment is necessary, loosen the screw at the bottom of
the unit. Move the pointer, one grove at
a
time to the left or the right, depending on the degree
desired. Hold the pointer in place and tighten screw
11.
Be sure the
required number
of balls is installed. The
NO GOOD GOFERS
game uses SIX balls,
plus one captive ball.
12.
Remove the foam from the captive ball feature. The captive ball is located next to the floating
ramp.
1-4
