A-20033

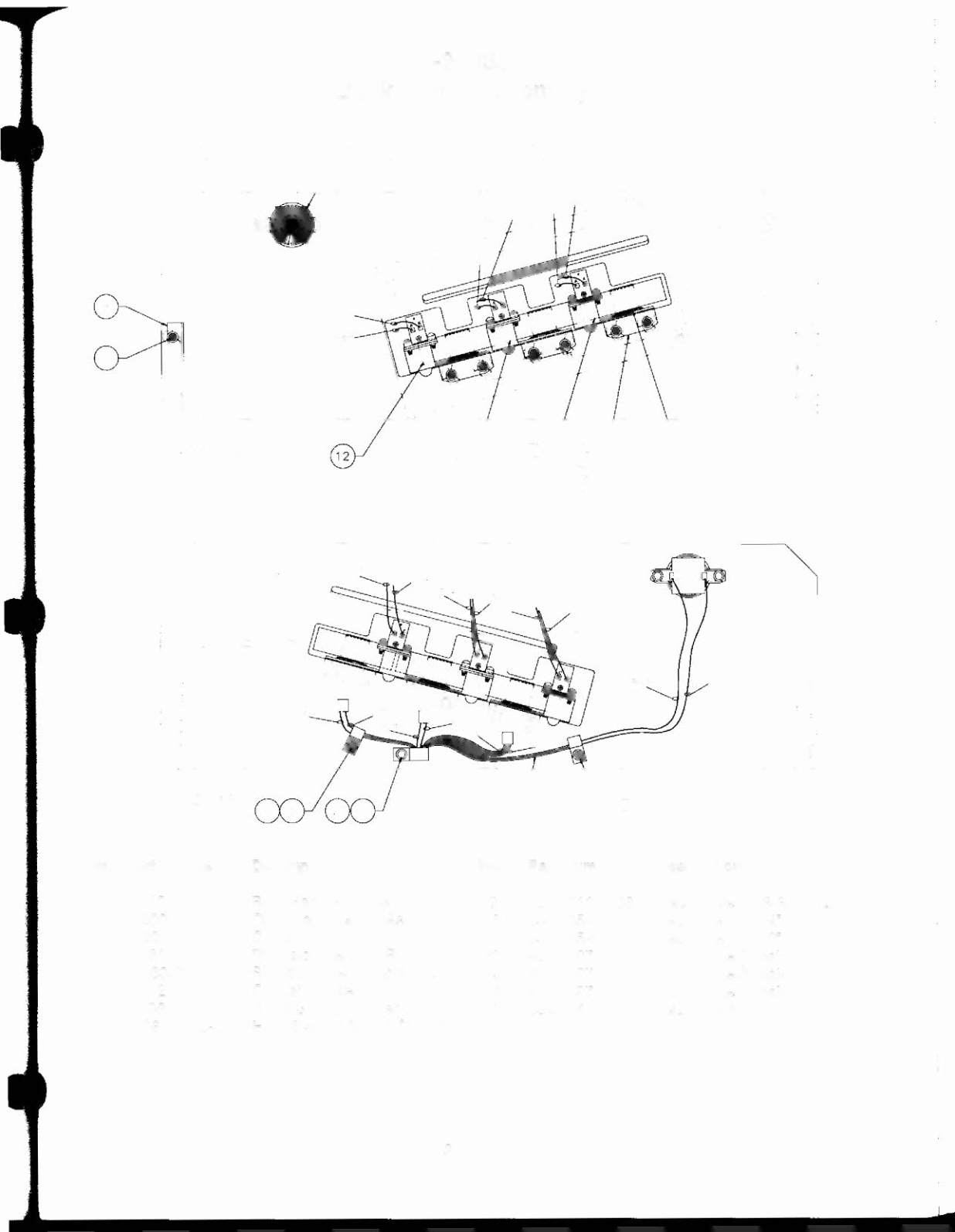

Back Panel Assem bly
(-
I
I
eV-"k
.,
.
c __ c _
'~,i
& / ~ . -
~ -- ----+ - - = - - - -- -f - ---t
--+-----+---._J~!
7
12
-- ~
~
:!
!
Item Part Number
Description
Item Part Number
Description
1 04-10052.1
Back Panel - Playfield
9 4008-01113-08 Mach. Screw, #8-32 x
1/2"
2 A-20034
Opto-Mag. Bracket Assy.
10 03-7655-4
Cable Clamp,
1/4"
3 H-20154
Cable
11
03-7655-8
Cable Clamp,
1/2"
4 03-8149-9
Playfield Insert, Tr. Red
12 20-10197
Coil Magnet/Breaker
5 C-13337
Single Flasher Lamp Assy.
13 20-10197-1
Coil Magnet/Breaker
6 01-12569
Gusset Bracket
14 20-10197-2
Coil Magnet/Breaker
7 20-9612
Wave
Spring Washer
15 03-9404
Cable
Cover
8 4808-01175-08 E-P #8-32 x 1/2" Ind. PI-HWH
2-21
