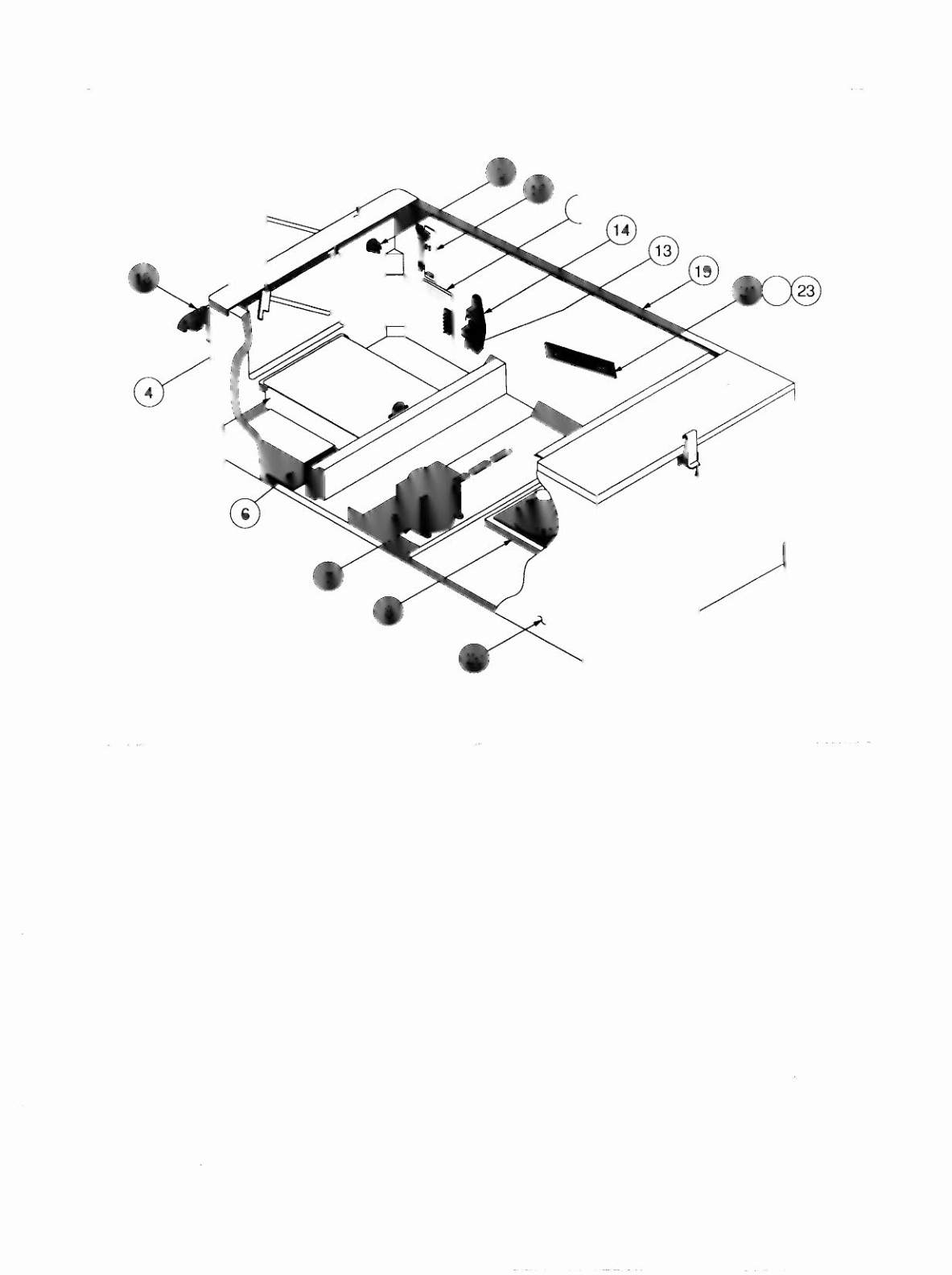

Cabinet Assembly
-~~-- ~----------------
Item Part Number
Description
1~ A-9174-4
Lever Guide Assembly
2.
09-23002-USA Coin Door - 2 Slot
3.
20-9663-11
Start Button, Clear
4.
A-16883-4
Flipper Button - Red (2 Used)
5.
A-16828-1
Cashbox Assembly
6.
*
Line Filter Assembly
7.
5610-13491-00 WPC Transformer,
115/230v
8.
5555-12929-00 Speaker, 40, 6", 25w
9.
20-9347
Toggle Latch
10.
A-14689
WPC Coin Door Interface Bd.
11.
C-10843-BR Metal Leg Assembly
12.
A-16055
Front Molding Assembly
13.
20-6502-A
Plum Bob
14.
A-15361
Tilt Switch Assembly
15.
*
Cordset
16.
A-16384-1
Opto Flipper Assembly (2 Used)
17.
01-10714
Line Cord Cover
*
See Application Chart (p.2-4).
Item Part Number
Description
18.
A-16113
19.
A-12359-3
20.
11-1102
21.
01-11408
22.
02-4329-01
23.
02-4352
24.
A-17205
a) 20-9663-12
Gun Handle Assembly
Side Molding Assembly
Wood Cabinet
Spacer (2 Used)
Pivot Nut, 7/8" (4 Used)
Pivot Bushing (2 Used)
Switch & Cable Assembly
Extra Ball Push Button
• Miscellaneous
Parts:
08-7028-1
Tempered Playfield Glass,
Wide Body: 23.75" x 43"
Steel Bali, 1-1/16" (6)
Playfield Support Bar, 18" Long
Clip Bracket
Leg Adjuster, 3"
20-6500
01-10797
01-5148
08-7377
INDIANA JONES 2-3
