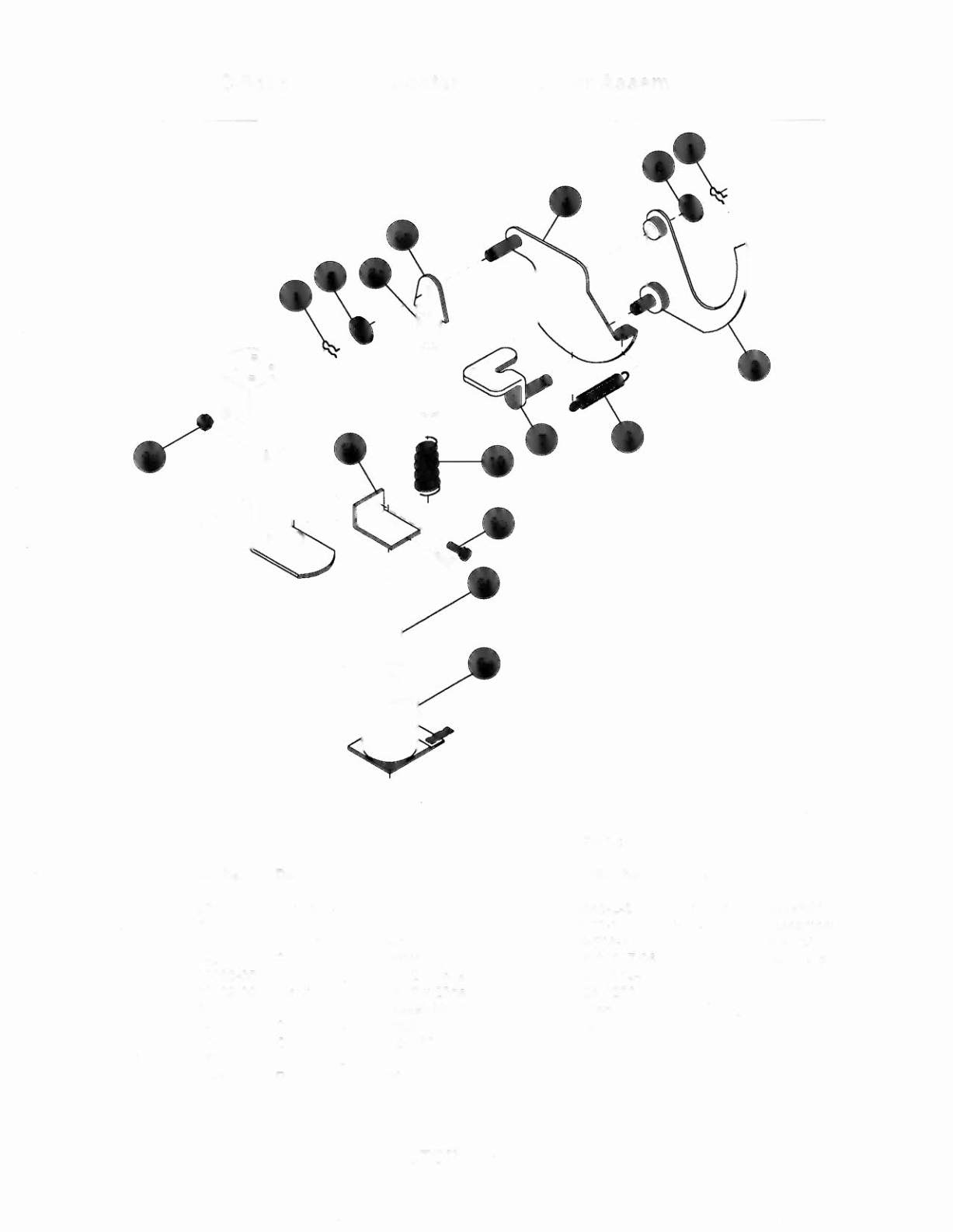

C-9638 Ball Shooter Lane Feeder Assembly
..••
I
...••
•••• J
Associated Parts:
Item Part Number
Description
Item Part Number
Description
1.
12-6227
Hairpin Clip
9.
B-9362-L-2
Coil & Bracket Assembly
2.
A-8247
Eject Cam Assembly
a) B-7572-1
Bracket & Stop Assembly
3.
10-362
Ejector Spring (Plain)
b) 01-8-508-S
Coil Retaining Bracket
4.
A-6949-L
Spring Plate Assembly
c) 4006-01017-06 Mach. Screw, 6-32 x
3/8
5.
4700-00030-00 Flatwasher,
17/64 x1/2
x 15ga.
d)
4406-01119-00 Nut, 6-32 ESN
6.
4700-00103-00 Flatwasher,
17/64 x1/2
x 28ga.
e) AE-26-1200
Coil Assembly
7.
A-8268
Mounting Bracket Assembly
f) 03-7066
Coil Tubing
8.
A-8050-1
Coil Plunger Assembly
10.
10-128
Spring
a) 02-3407-2
Coil Plunger Assy,
2-1/8"
b) 03-8085
Armature Link
c) 20-8716-5
Roll Pin,
118
x
7/16"
DOCTOR WHO 2-21
